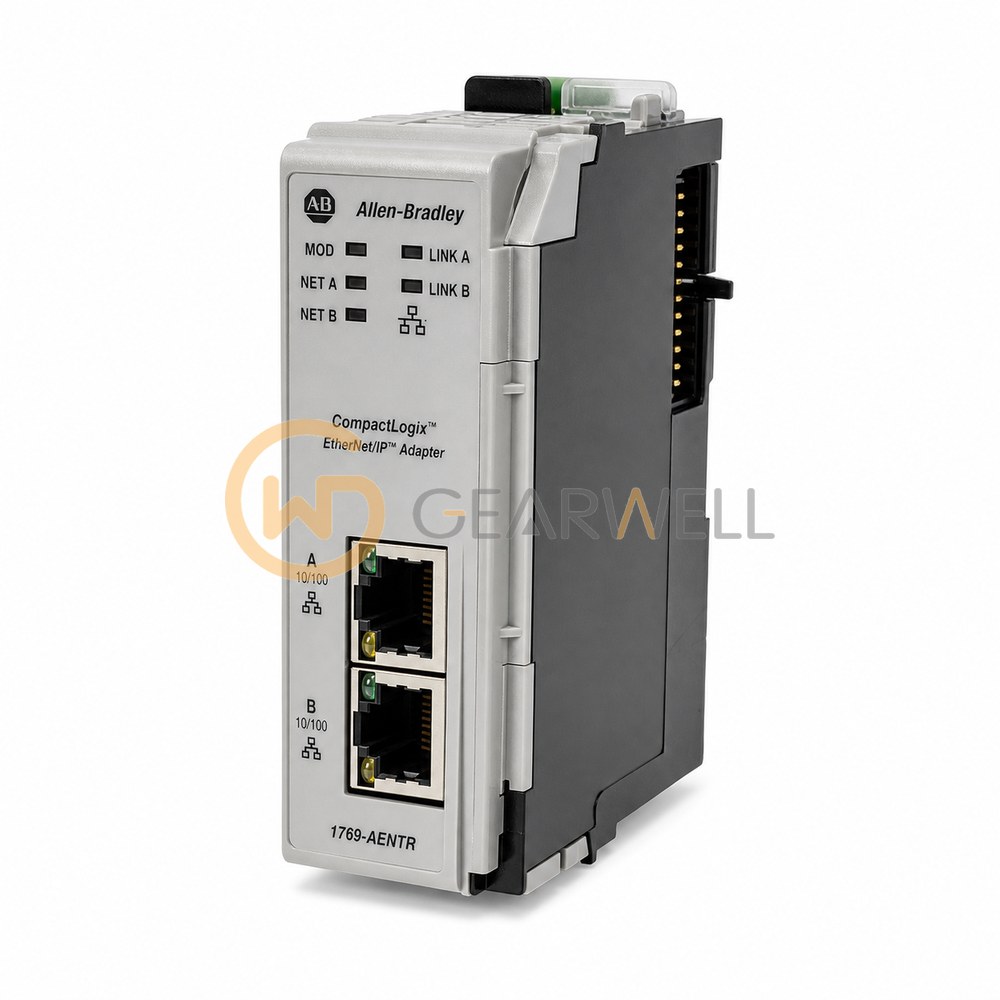

Allen-Bradley 1769-AENTR Compact I/O Dual-Port EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 1769-AENTR
- GEARWELL SKU
- GWP-000000739
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Width
- 50 mm
- Height
- 118 mm
- Maximum backplane current
- 500 mA at 5 V DC
- Ethernet ports
- 2 copper network ports
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-AENTR is an EtherNet/IP adapter that lets a bank of 1769 Compact I/O be used as remote I/O. It has 2 RJ45 Ethernet ports at 10/100 Mbps, 128 Logix and 96 TCP/IP communication connections, and draws 500 mA at 5V DC; it must be used with a 1769-PA2, 1769-PB2, 1769-PA4 or 1769-PB4 power supply. It is rated for 0…60 °C (32…140 °F) operation and weighs about 0.280 kg.
Technical reference
| Product name | Allen-Bradley 1769-AENTR Compact I/O Dual-Port EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-AENTR |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Width | 50 mm |
| Height | 118 mm |
| Maximum backplane current | 500 mA at 5 V DC |
| Ethernet ports | 2 copper network ports |
| TCP connections | 96 |
| Network topology | Linear or Device Level Ring (DLR) |
| Isolation | 50 V continuous basic insulation; tested at 710 V DC for 60 s |
| Enclosure type | Open-style |
| Power supply distance rating | 5 modules |
| EtherNet/IP communication rate | 10/100 Mbps |
| Logix communication connections | 128 |
