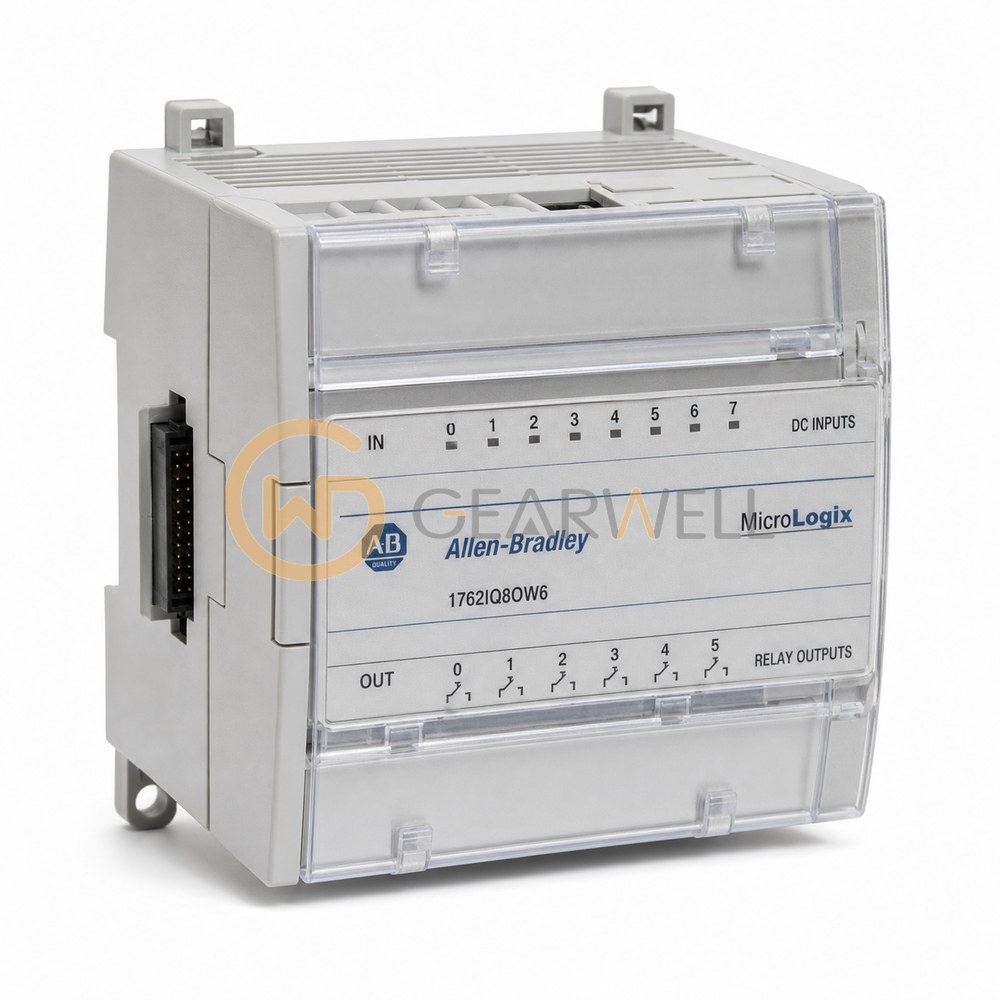

Allen-Bradley 1762IQ8OW6 MicroLogix Combination I/O Module
- Brand
- Allen-Bradley
- Model
- 1762IQ8OW6
- GEARWELL SKU
- GWP-000001154
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 90 mm
- Inrush current, max
- 250 mA
- Bus current draw, max
- 80mA @ 24V DC
- IEC input compatibility
- Type 1+
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-IQ8OW6 is a combination module with 8 24V DC sink/source inputs and 6 normally open AC/DC relay outputs (5…265V AC, 5…125V DC). It draws 110 mA at 5V DC and 80 mA at 24V DC from the bus, with 2.5 A per relay point and 8 A per module. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762IQ8OW6 MicroLogix Combination I/O Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762IQ8OW6 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 90 mm |
| Inrush current, max | 250 mA |
| Bus current draw, max | 80mA @ 24V DC |
| IEC input compatibility | Type 1+ |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Input group to backplane isolation | Verified by one of the following dielectric tests: 1200V AC @ 1s or 1697V DC @ 1s 75V DC working voltage (IEC Class 2 reinforced insulation) |
