Allen-Bradley 1762-IQ16 MicroLogix 16-Point DC Input PLC Module
- Brand
- Allen-Bradley
- Model
- 1762IQ16
- GEARWELL SKU
- GWP-000003574
- Category
- PLCs & I/O
Key specifications
- Input groups
- 2 groups of 8: inputs 0…7 and 8…15.
- Product type
- 16-point sinking/sourcing DC input module
- Signal delay
- 8 ms maximum on/off
- Input channels
- 16
- Nominal input impedance
- 3 kΩ nominal.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

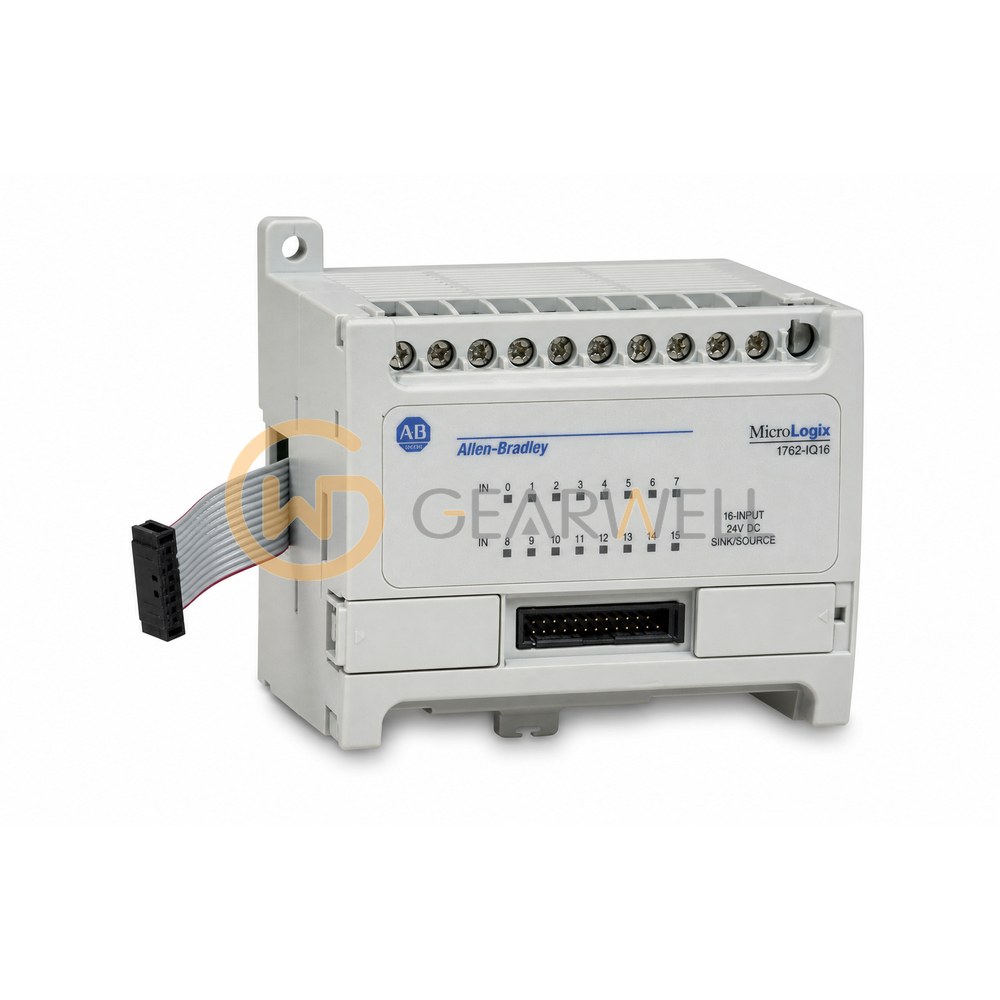

The Allen-Bradley 1762-IQ16 is a 16-point 24V DC sink/source input module (10…30V DC, 2 commons). It draws 70 mA at 5V DC from the bus and has an 8.0 ms on and off delay. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762-IQ16 MicroLogix 16-Point DC Input PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762IQ16 |
| Category | PLCs & I/O |
| Input groups | 2 groups of 8: inputs 0…7 and 8…15. |
| Product type | 16-point sinking/sourcing DC input module |
| Signal delay | 8 ms maximum on/off |
| Input channels | 16 |
| Nominal input impedance | 3 kΩ nominal. |
| Bus current draw | 70 mA at 5 V DC |
| Heat dissipation and derating | 4.3 W at 26.4 V DC; 5.4 W at 30 V DC. Energized-input count must comply with the voltage/temperature derating chart in 1762-IN010D-EN-P, page 11. |
| Voltage category | 24 V DC sink/source |
| Off-state input current | 1.5 mA maximum. |
| Off-state input voltage | 5 V DC maximum. |
| Input operating voltage and derating | 10…30 V DC; the permitted number of energized inputs depends on input voltage and ambient temperature. Apply the derating chart in 1762-IN010D-EN-P, page 11. |
| Minimum on-state input current | 2 mA at 10 V DC. |
