Allen-Bradley 1762-IQ32T MicroLogix 32-Point DC Input PLC Module
- Brand
- Allen-Bradley
- Model
- 1762IQ32T
- GEARWELL SKU
- GWP-000002565
- Category
- PLCs & I/O
Key specifications
- Input groups
- 4 groups of 8: inputs 0…7, 8…15, 16…23 and 24…31.
- Product type
- 32-point sinking/sourcing DC input module
- Signal delay
- 8 ms maximum on/off
- Input channels
- 32
- Bus current draw
- 170 mA at 5 V DC; 0 mA at 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

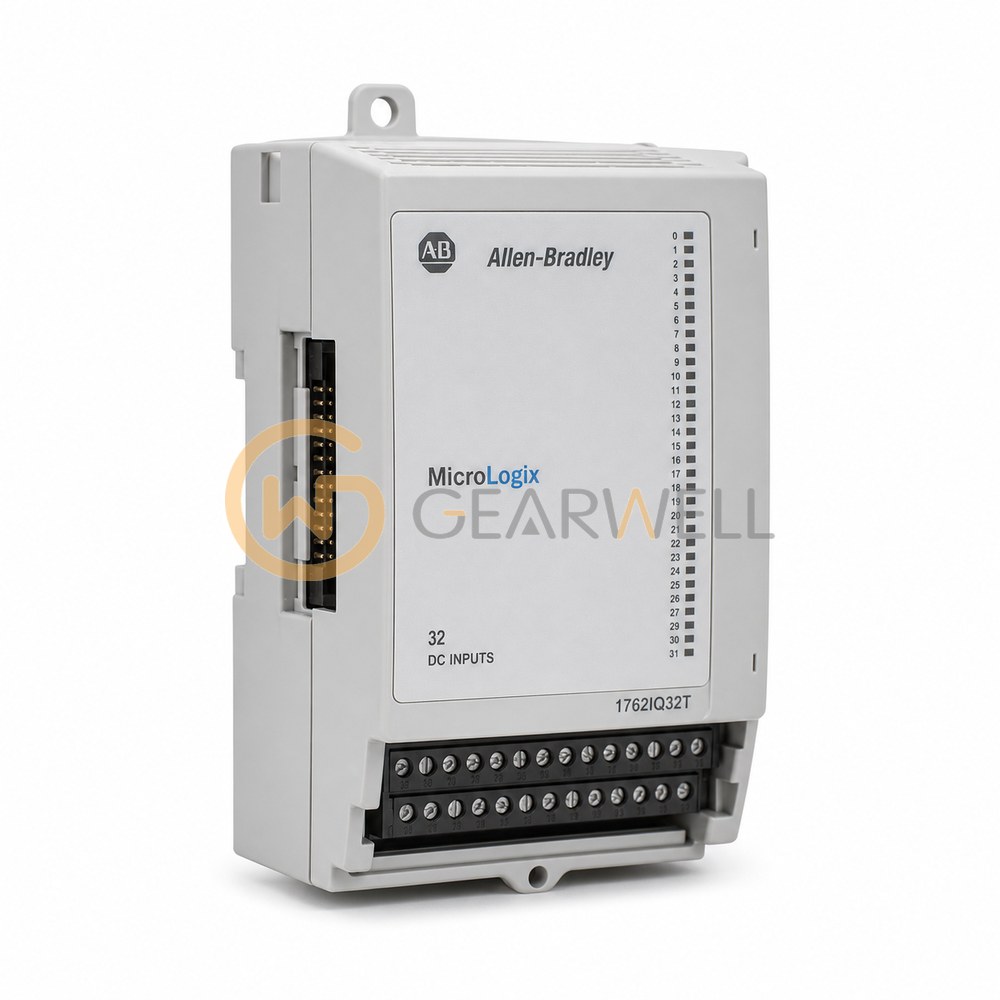

The Allen-Bradley 1762-IQ32T is a 32-point 24V DC sink/source input module (10…30V DC, 4 commons). It draws 170 mA at 5V DC from the bus and has an 8.0 ms on and off delay. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762-IQ32T MicroLogix 32-Point DC Input PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762IQ32T |
| Category | PLCs & I/O |
| Input groups | 4 groups of 8: inputs 0…7, 8…15, 16…23 and 24…31. |
| Product type | 32-point sinking/sourcing DC input module |
| Signal delay | 8 ms maximum on/off |
| Input channels | 32 |
| Bus current draw | 170 mA at 5 V DC; 0 mA at 24 V DC |
| Heat dissipation and derating | 5.4 W at 26.4 V DC; 6.8 W at 30 V DC. Energized-input count must comply with the voltage/temperature derating curves in 1762-IN019C-EN-P Figure 9. |
| Voltage category | 24 V DC sink/source |
| Off-state input current | 1 mA maximum. |
| Off-state input voltage | 5 V DC maximum. |
| Input operating voltage and derating | 10…30 V DC; the permitted number of energized inputs depends on input voltage and ambient temperature. Apply the derating curves in 1762-IN019C-EN-P Figure 9; do not assume all 32 inputs can be on at 60 °C. |
| Maximum on-state input current | 5.7 mA at 26.4 V DC; 6.5 mA at 30 V DC. |
| Minimum on-state input current | 1.6 mA at 10 V DC; 2 mA at 15 V DC. |
