Allen-Bradley 1762-IF2OF2 MicroLogix 2-In/2-Out Analog I/O PLC Module
- Brand
- Allen-Bradley
- Model
- 1762IF2OF2
- GEARWELL SKU
- GWP-000001080
- Category
- PLCs & I/O
Key specifications
- Resolution
- 12 bits unipolar
- Product type
- Combination voltage/current analog input/output module
- Signal ranges
- 0-10 V DC and 4-20 mA
- Input channels
- 2 differential unipolar
- Analog input impedance
- 200 kΩ at the voltage terminal; 250 Ω at the current terminal.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

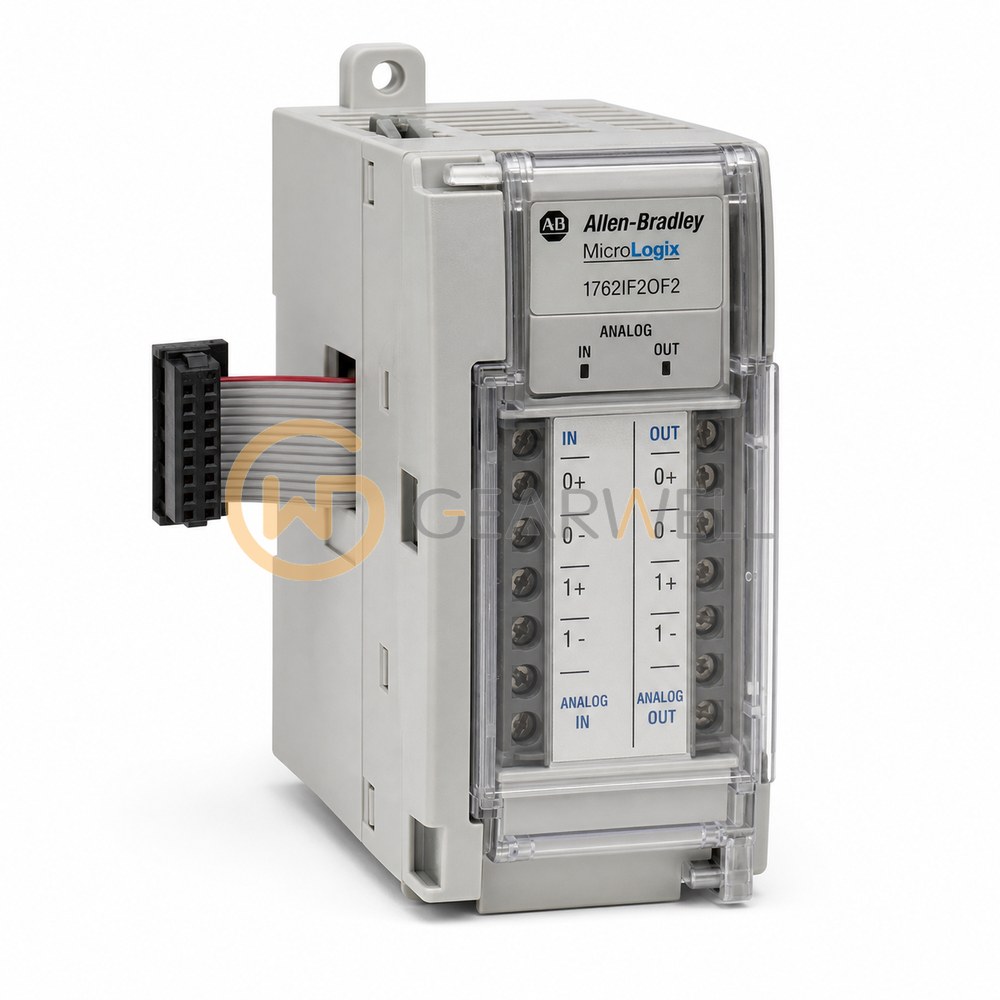

The Allen-Bradley 1762-IF2OF2 is an analog combination module with 2 differential inputs and 2 single-ended outputs for 0…10V DC or 4…20 mA, with 12-bit resolution. It draws 40 mA at 5V DC and 105 mA at 24V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762-IF2OF2 MicroLogix 2-In/2-Out Analog I/O PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762IF2OF2 |
| Category | PLCs & I/O |
| Resolution | 12 bits unipolar |
| Product type | Combination voltage/current analog input/output module |
| Signal ranges | 0-10 V DC and 4-20 mA |
| Input channels | 2 differential unipolar |
| Analog input impedance | 200 kΩ at the voltage terminal; 250 Ω at the current terminal. |
| Output channels | 2 single-ended unipolar |
| Bus current draw | 40 mA at 5 V DC; 105 mA at 24 V DC |
| Full-scale analog ranges | 0…10.5 V DC and 0…21 mA; these are full-scale limits, not the normal 0…10 V DC and 4…20 mA operating ranges. |
| Input update time | 2.5 ms typical |
| Output update time | 4.5 ms typical |
| Input common-mode range | ±27 V; both plus and minus input terminals must stay within this range relative to analog common. |
| Current output load range | 0…500 Ω, including wire resistance. |
| Voltage output load range | >1 kΩ. |
