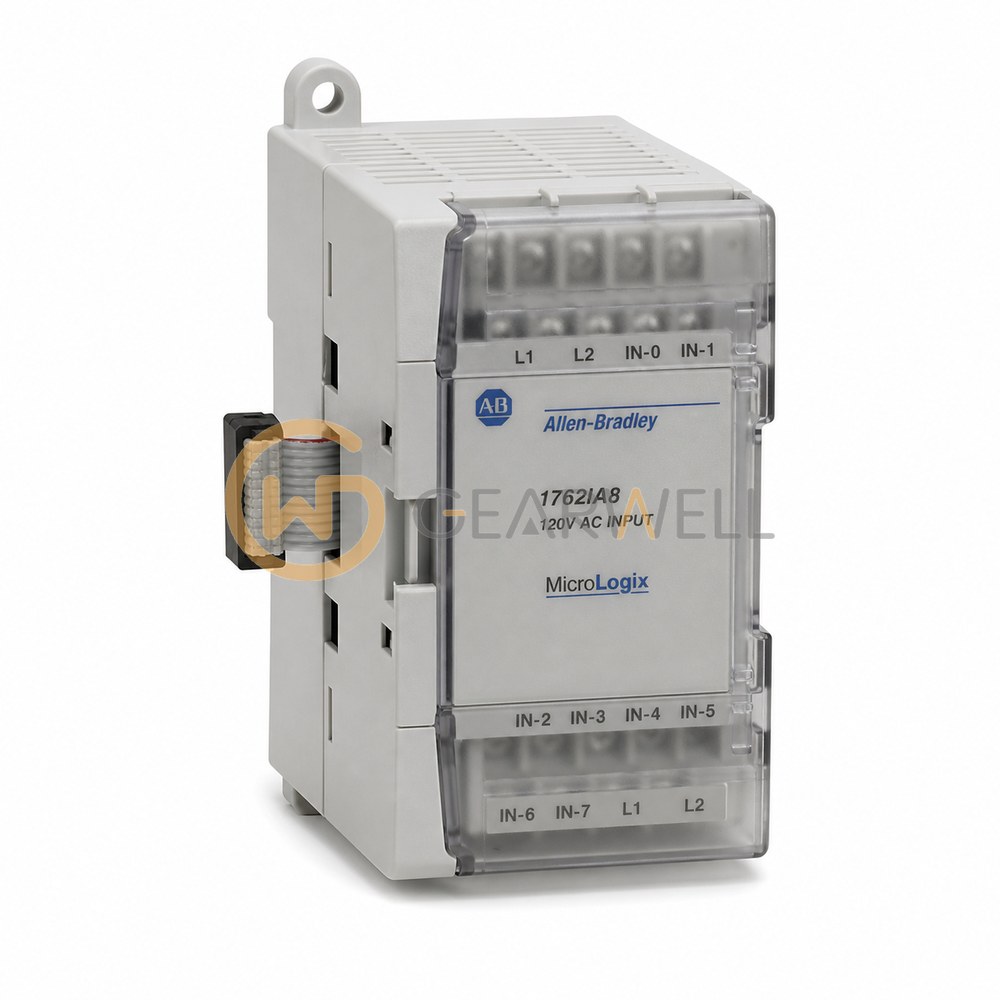

Allen-Bradley 1762IA8 MicroLogix AC Input Module
- Brand
- Allen-Bradley
- Model
- 1762IA8
- GEARWELL SKU
- GWP-000004315
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 90 mm
- Bus current draw, max
- 50mA @ 5V DC (0.25 W)
- digital input modules
- 8 Point 120V AC Input Module
- IEC input compatibility
- Type 1+
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-IA8 is an 8-point 120V AC input module (79…132V AC at 47…63 Hz, 1 common). It draws 50 mA at 5V DC from the bus and has a 20.0 ms on and off delay. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762IA8 MicroLogix AC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762IA8 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 90 mm |
| Bus current draw, max | 50mA @ 5V DC (0.25 W) |
| digital input modules | 8 Point 120V AC Input Module |
| IEC input compatibility | Type 1+ |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Input group to backplane isolation | Verified by one of the following dielectric tests: 1517V AC @ 1s or 2145V DC @ 1s. 132V AC working voltage (IEC Class 2 reinforced insulation) |
