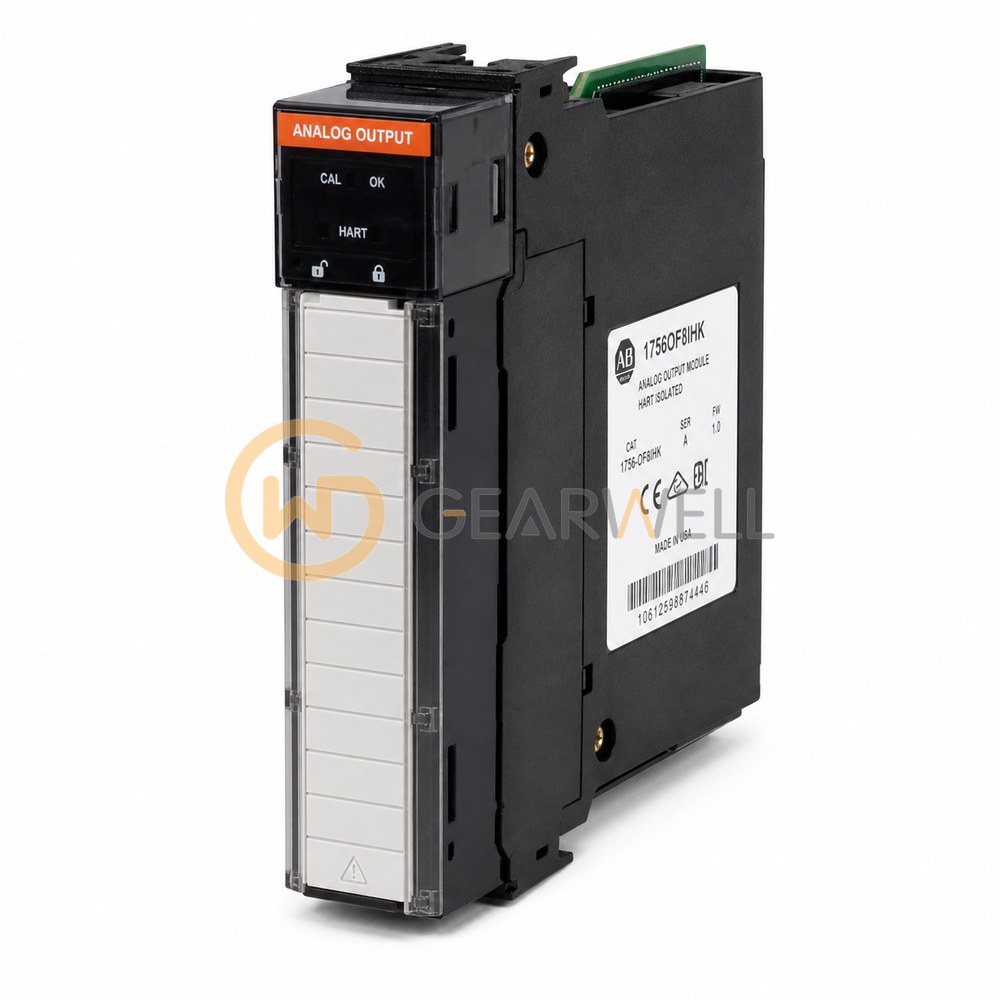

Allen-Bradley 1756OF8IHK ControlLogix Conformally Coated 8-Point Isolated HART Output Module
- Brand
- Allen-Bradley
- Model
- 1756OF8IHK
- GEARWELL SKU
- GWP-000001627
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- 250V (continuous), Reinforced,insulation type, outputs to,backplane. Basic insulation,type, output to output, and,outputs to ground.
- Output signal
- 0-20 mA or 4-20 mA
- Special Features
- Supports HART Protocol
- Conformal coating
- true
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OF8IHK is a ControlLogix isolated HART current analog output module for the 1756 chassis. It has eight isolated current outputs (0…20 mA or 4…20 mA) with HART communication and 15-bit resolution across 24 mA. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OF8IHK ControlLogix Conformally Coated 8-Point Isolated HART Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OF8IHK |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | 250V (continuous), Reinforced,insulation type, outputs to,backplane. Basic insulation,type, output to output, and,outputs to ground. |
| Output signal | 0-20 mA or 4-20 mA |
| Special Features | Supports HART Protocol |
| Conformal coating | true |
| Number Of Channels | 8 |
