Allen-Bradley 1756OF8I ControlLogix 8-Point Isolated Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1756OF8I
- GEARWELL SKU
- GWP-000001387
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode, Input, Fault and,Communication Status
- Current draw
- 200mA @ 5.1V, Voltage or current mode with 250 Ω loads = 220mA @ 24V, Current mode with 500 Ω loads = 275mA @ 24V, Current mode with 750 Ω loads = 340mA @ 24V, Current mode with 1000 Ω loads = 385mA @ 24V
- Input, current
- false
- Output points
- 8 isolated voltage/current outputs
- Output signal
- -10 to +10 V, 0-10 V, 0-5 V or 0-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

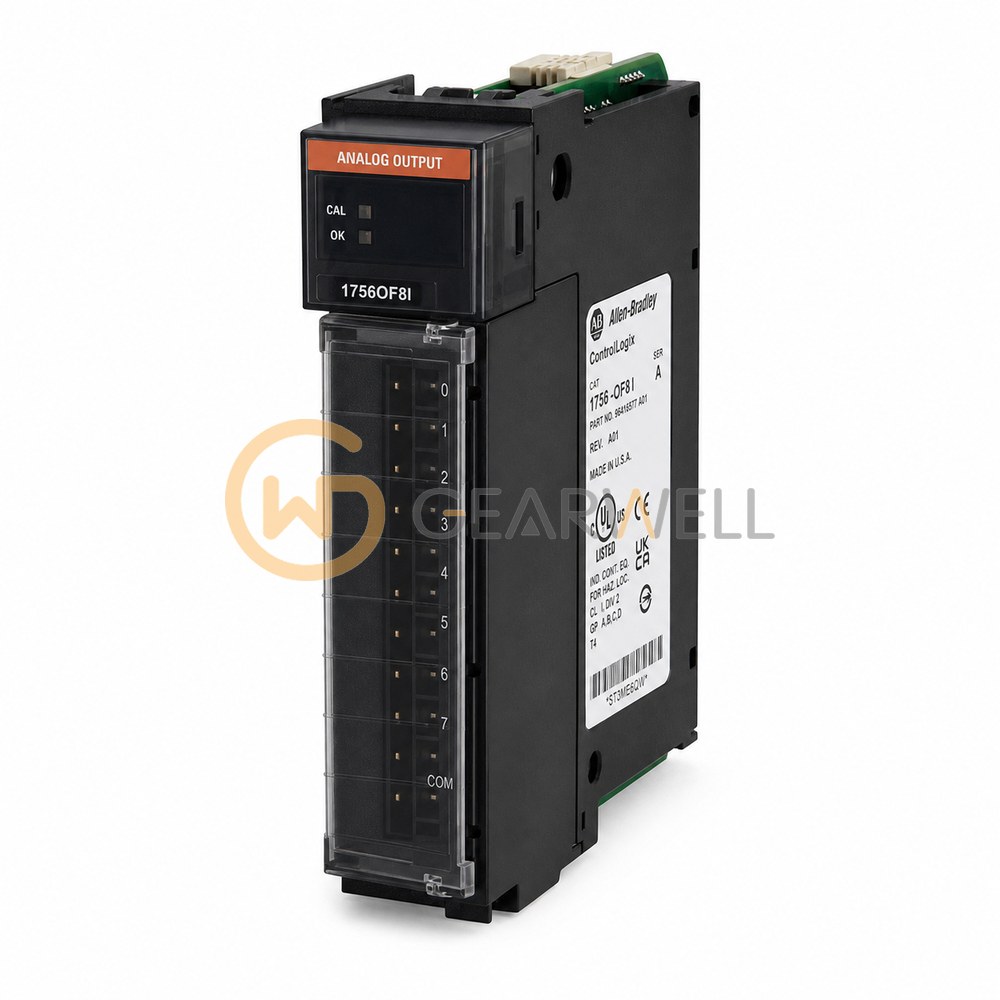

The Allen-Bradley 1756-OF8I is a ControlLogix isolated voltage/current output analog module for the 1756 chassis. It has eight isolated output channels that can be set individually for voltage or current (-10…10V, 0…10V, 0…5V, 0…20 mA), with 16-bit resolution. It draws 200 mA at 5.1V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OF8I ControlLogix 8-Point Isolated Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OF8I |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode, Input, Fault and,Communication Status |
| Current draw | 200mA @ 5.1V, Voltage or current mode with 250 Ω loads = 220mA @ 24V, Current mode with 500 Ω loads = 275mA @ 24V, Current mode with 750 Ω loads = 340mA @ 24V, Current mode with 1000 Ω loads = 385mA @ 24V |
| Input, current | false |
| Output points | 8 isolated voltage/current outputs |
| Output signal | -10 to +10 V, 0-10 V, 0-5 V or 0-20 mA |
| Terminal count | 36-pin |
| Calibrated accuracy | 0.05% @ 25°C (77 °F) |
| Enclosure type rating | None (open-style) |
| Input signal, configurable | false |
| Analogue inputs configurable | false |
| Analogue outputs configurable | true |
