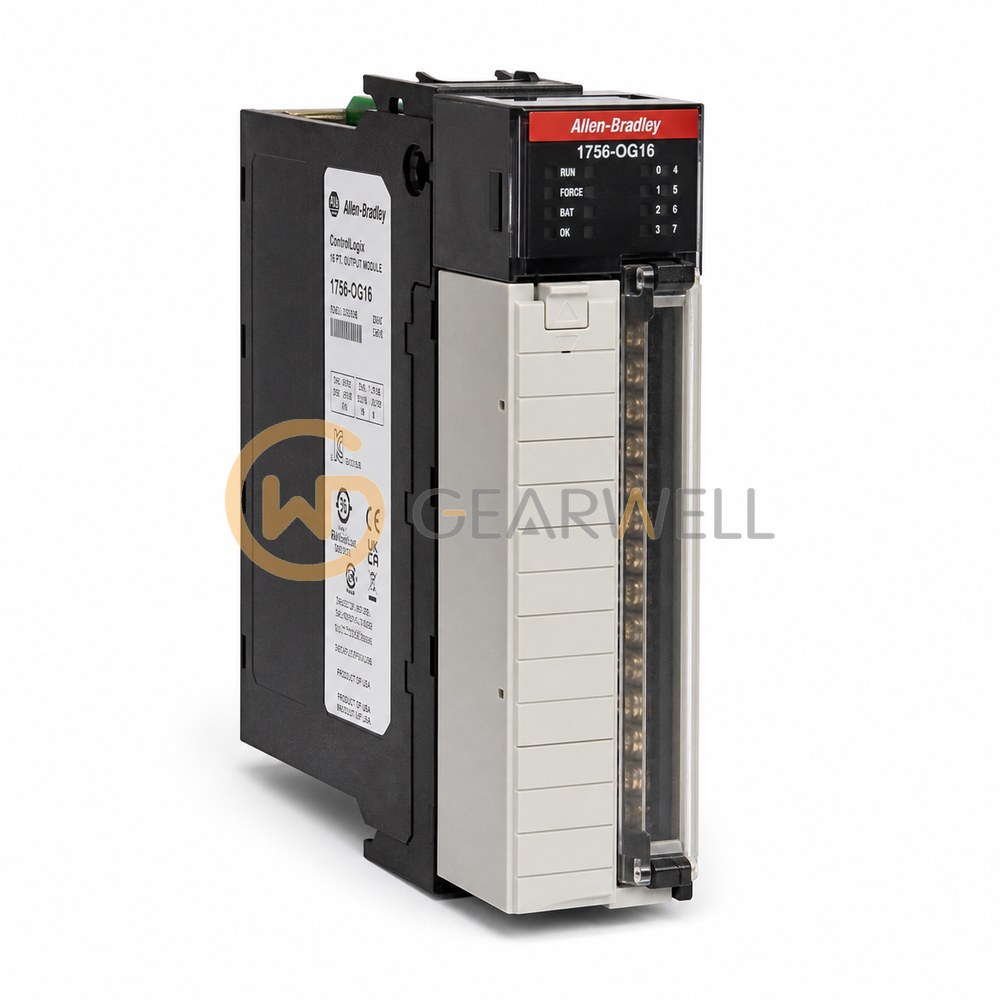

Allen-Bradley 1756OG16 ControlLogix 16-Point TTL Output Module
- Brand
- Allen-Bradley
- Model
- 1756OG16
- GEARWELL SKU
- GWP-000000628
- Category
- PLCs & I/O
Key specifications
- Fusing
- Not protected; fused IFM recommended
- Outputs
- 16 (8 points/group)
- Product type
- ControlLogix TTL DC output module
- Enclosure type
- None (open-style)
- Voltage category
- 5 V DC TTL (Low=True)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OG16 is a ControlLogix TTL output module for the 1756 chassis. It has 16 TTL outputs in two groups of eight for 5V DC logic (low = true), with an operating range of 4.5…5.5V DC. It draws 210 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OG16 ControlLogix 16-Point TTL Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OG16 |
| Category | PLCs & I/O |
| Fusing | Not protected; fused IFM recommended |
| Outputs | 16 (8 points/group) |
| Product type | ControlLogix TTL DC output module |
| Enclosure type | None (open-style) |
| Voltage category | 5 V DC TTL (Low=True) |
| Operating voltage range | 4.5...5.5 V DC source |
| Load current per point, max | 24 mA |
| Load current per module, max | 384 mA |
