Allen-Bradley 1756OG16K ControlLogix Conformally Coated 16-Point TTL Output Module
- Brand
- Allen-Bradley
- Model
- 1756OG16K
- GEARWELL SKU
- GWP-000000364
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix 16 Point D/O Module
- Output points
- 16
- Catalog number
- 1756-OG16K
- Terminal count
- 20-pin
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

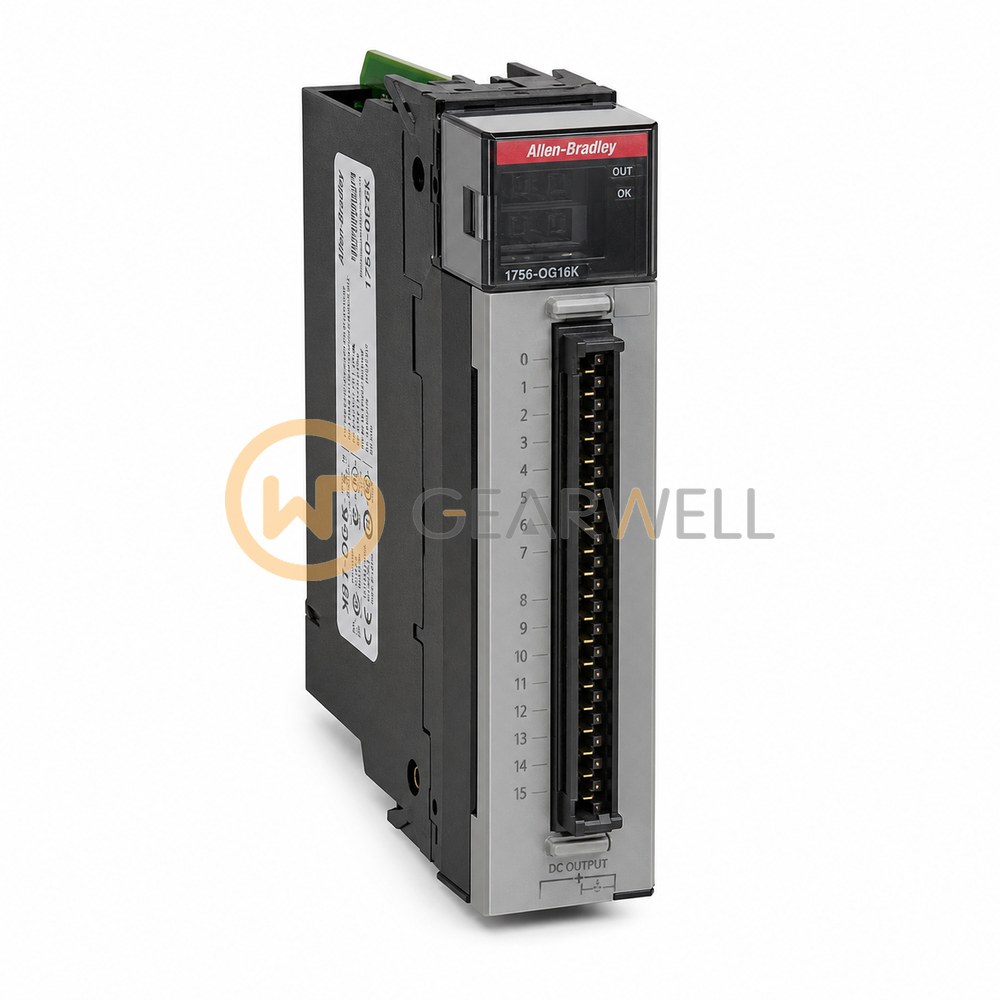

The Allen-Bradley 1756-OG16K is a ControlLogix TTL output module for the 1756 chassis. It has 16 TTL outputs in two groups of eight for 5V DC logic (low = true), with an operating range of 4.5…5.5V DC. It draws 210 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OG16K ControlLogix Conformally Coated 16-Point TTL Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OG16K |
| Category | PLCs & I/O |
| Product type | ControlLogix 16 Point D/O Module |
| Output points | 16 |
| Catalog number | 1756-OG16K |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Voltage category | 5 V DC TTL, low-true logic |
| Product description | 0-5 VDC TTL Output (Low True) 16 Pts (20 Pin) - Conformally Coated |
