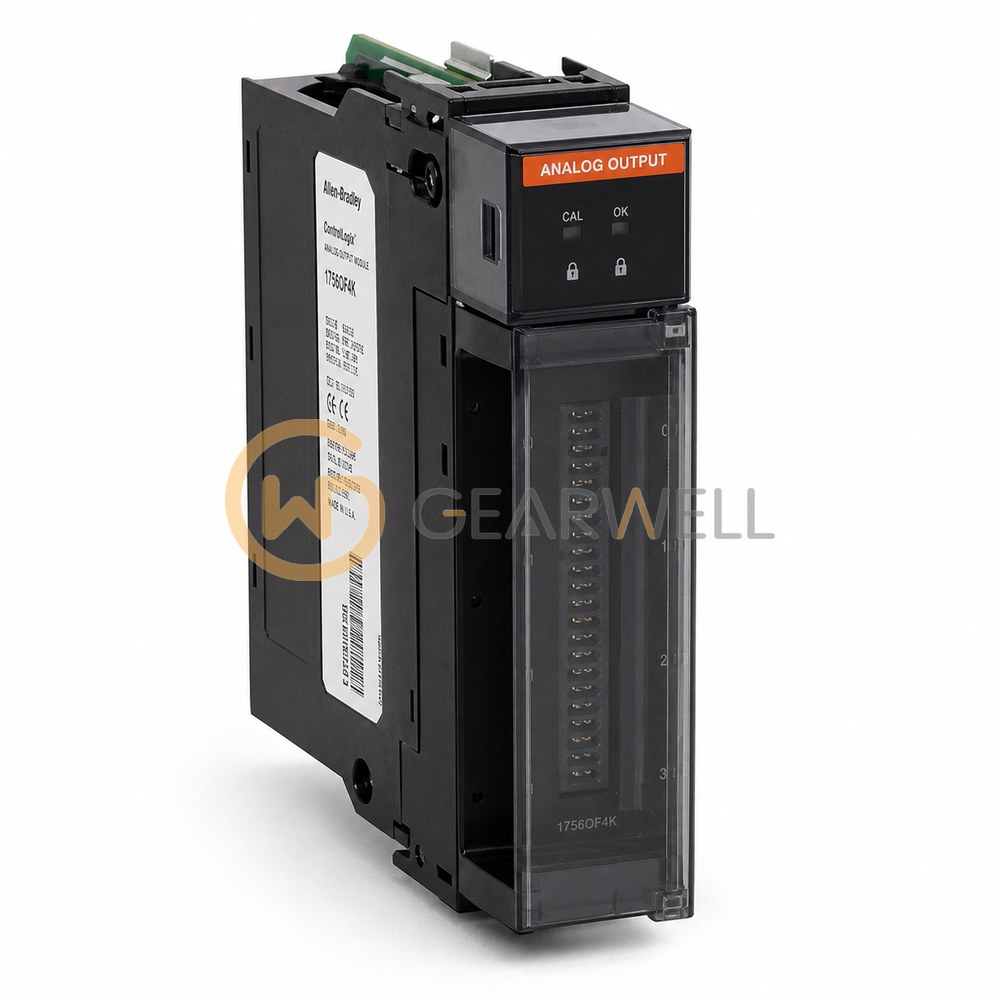

Allen-Bradley 1756OF4K ControlLogix Conformally Coated 4-Point Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1756OF4K
- GEARWELL SKU
- GWP-000002818
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- None between channels (Single,Ended)
- Product type
- ControlLogix 4 Pt A/O I or V Module
- Output points
- 4 voltage/current outputs
- Output signal
- -10 to +10 V or 0-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OF4K is a ControlLogix voltage/current output analog module for the 1756 chassis. It has four outputs that can be set for voltage (±10V, 15-bit) or current (0…20 mA, 16-bit), with an R-ladder DAC. It draws 200 mA at 5.1V DC and 155 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OF4K ControlLogix Conformally Coated 4-Point Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OF4K |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | None between channels (Single,Ended) |
| Product type | ControlLogix 4 Pt A/O I or V Module |
| Output points | 4 voltage/current outputs |
| Output signal | -10 to +10 V or 0-20 mA |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Special Features | Conformal Coating |
| Product description | Analog Output - Current/Voltage 4 Pts (20 Pin) - Conformally Coated |
