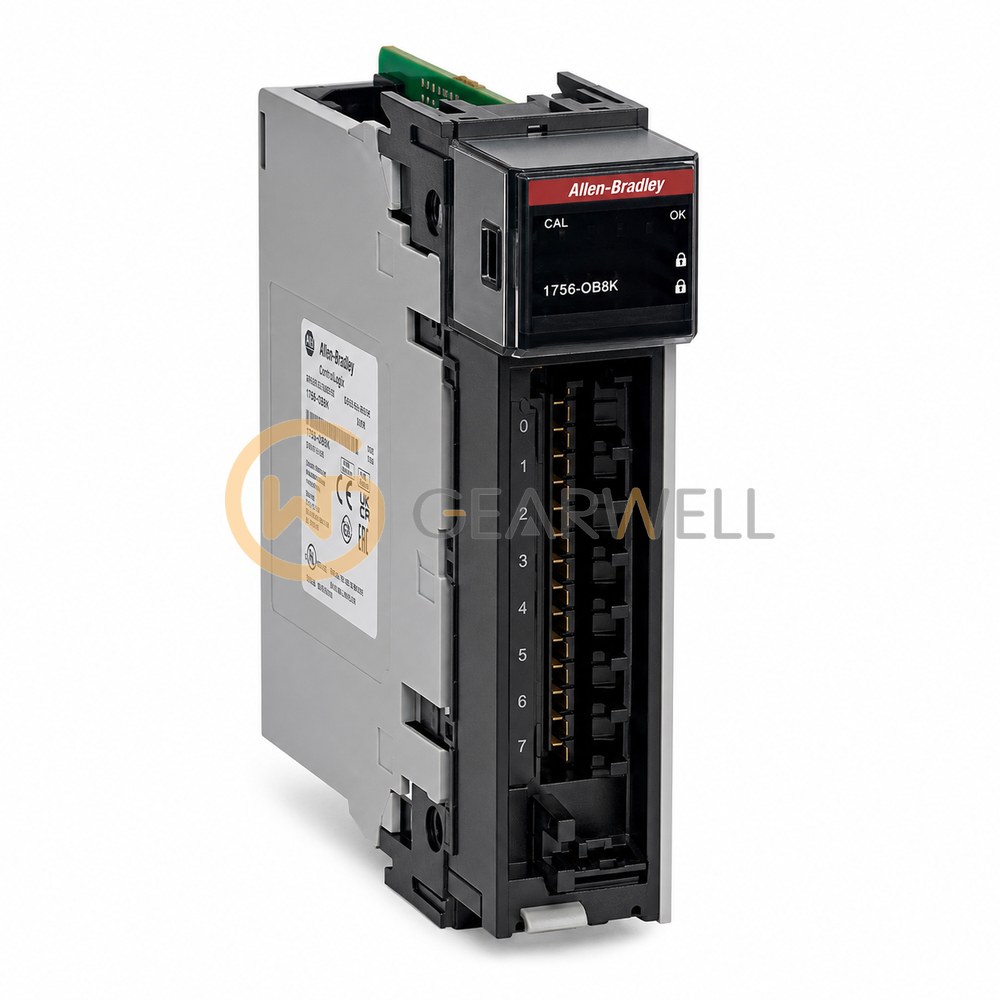

Allen-Bradley 1756OB8K ControlLogix Conformally Coated 8-Point DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OB8K
- GEARWELL SKU
- GWP-000000622
- Category
- PLCs & I/O
Key specifications
- Fusing
- Not protected; fused IFM recommended
- Outputs
- 8 (4 points/common)
- Product type
- ControlLogix DC output module
- Enclosure type
- None (open-style)
- Voltage category
- 12/24 V DC source
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OB8K is a ControlLogix DC (10…30V) output module for the 1756 chassis. It has eight sourcing outputs in two groups of four for 12/24V DC loads, with an operating range of 10…30V DC, up to 2 A per point and 8 A per module at 60 °C (140 °F). It draws 165 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OB8K ControlLogix Conformally Coated 8-Point DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OB8K |
| Category | PLCs & I/O |
| Fusing | Not protected; fused IFM recommended |
| Outputs | 8 (4 points/common) |
| Product type | ControlLogix DC output module |
| Enclosure type | None (open-style) |
| Voltage category | 12/24 V DC source |
| Current per point, max | 2 A at 60 °C |
| Current per module, max | 8 A at 60 °C |
| Operating voltage range | 10...30 V DC |
