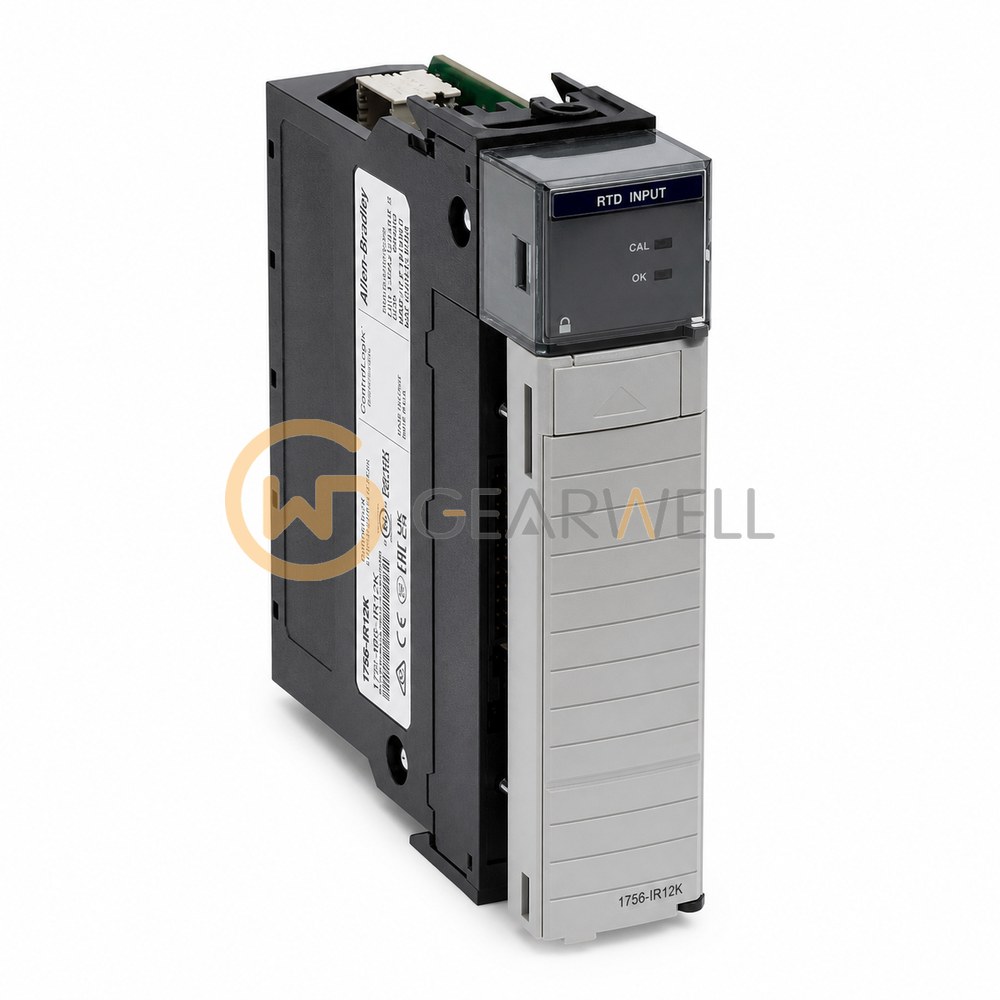

Allen-Bradley 1756IR12K ControlLogix Conformally Coated 12-Point RTD Input Module
- Brand
- Allen-Bradley
- Model
- 1756IR12K
- GEARWELL SKU
- GWP-000002657
- Category
- PLCs & I/O
Key specifications
- Inputs
- 12 channels, RTD mode
- Resolution
- 24 bits
- Input range
- 1...500 Ω, 2...1000 Ω, 4...2000 Ω, 8...4000 Ω
- Product type
- ControlLogix RTD analog input module
- Current draw at 24 V
- 70 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IR12K is a ControlLogix RTD analog input module for the 1756 chassis. It has 12 RTD input channels with ranges from 1…500 Ω up to 8…4000 Ω and 24-bit sigma-delta conversion, for platinum, nickel and copper RTDs. It draws 70 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IR12K ControlLogix Conformally Coated 12-Point RTD Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IR12K |
| Category | PLCs & I/O |
| Inputs | 12 channels, RTD mode |
| Resolution | 24 bits |
| Input range | 1...500 Ω, 2...1000 Ω, 4...2000 Ω, 8...4000 Ω |
| Product type | ControlLogix RTD analog input module |
| Current draw at 24 V | 70 mA |
| Current draw at 5.1 V | 200 mA (Series A); 210 mA (Series B) |
| RTD sensor materials | Platinum, nickel and copper |
| Total backplane power | 2.7 W (Series A); 2.75 W (Series B) |
