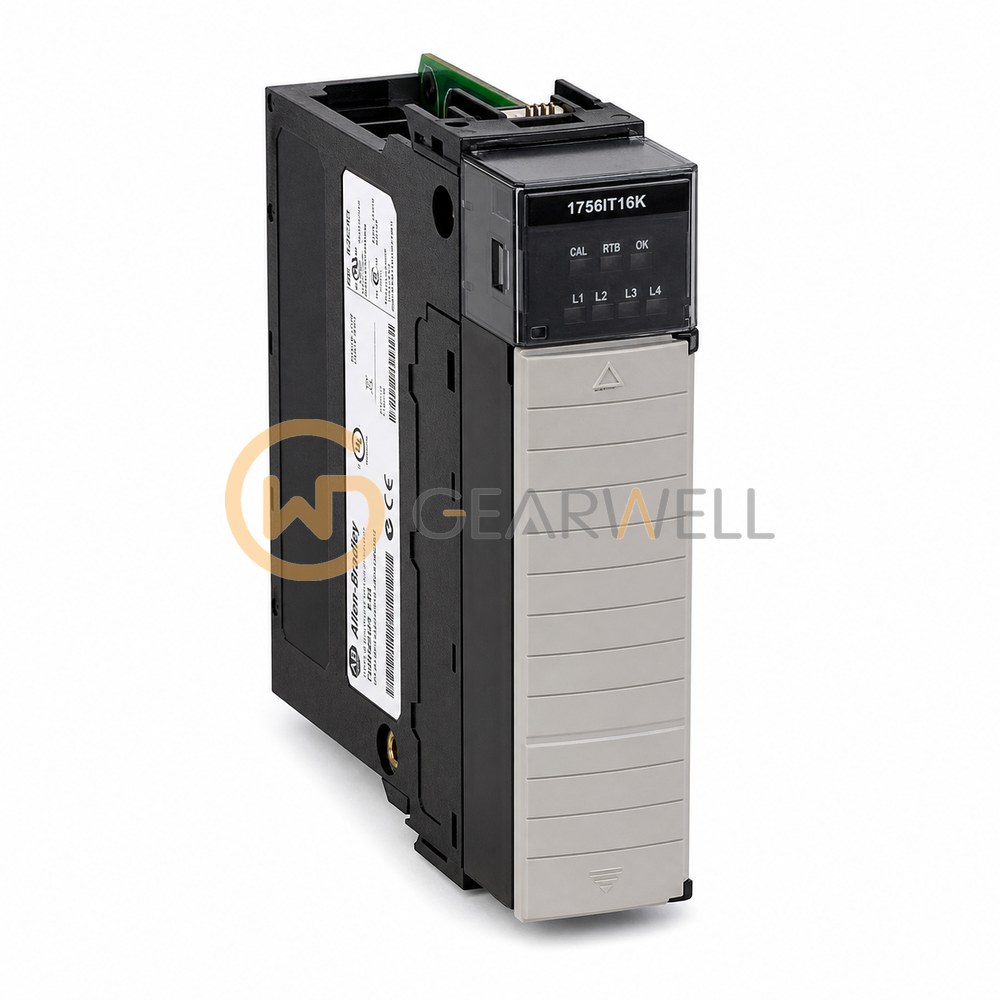

Allen-Bradley 1756IT16K ControlLogix Conformally Coated 16-Point Thermocouple Input Module
- Brand
- Allen-Bradley
- Model
- 1756IT16K
- GEARWELL SKU
- GWP-000001792
- Category
- PLCs & I/O
Key specifications
- Inputs
- 16 thermocouple channels
- Resolution
- 24 bits
- Input range
- -100...+100 mV
- Product type
- ControlLogix thermocouple analog input module
- Current draw at 24 V
- 80 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IT16K is a ControlLogix thermocouple analog input module for the 1756 chassis. It has 16 thermocouple input channels (-100…+100 mV; types B, C, D, E, J, K, N, R, S, T and TXK/XK (L), ITS-90 linearization) with 24-bit sigma-delta conversion. The two 1756-CJC cold junction sensors are ordered separately. It draws 80 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IT16K ControlLogix Conformally Coated 16-Point Thermocouple Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IT16K |
| Category | PLCs & I/O |
| Inputs | 16 thermocouple channels |
| Resolution | 24 bits |
| Input range | -100...+100 mV |
| Product type | ControlLogix thermocouple analog input module |
| Current draw at 24 V | 80 mA |
| Current draw at 5.1 V | 200 mA (Series A); 210 mA (Series B) |
| Thermocouple types | B, C, D, E, J, K, N, R, S, T, TXK/XK (L) |
| Total backplane power | 3 W |
