Allen-Bradley 1756IM16I ControlLogix 16-Point Isolated AC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IM16I
- GEARWELL SKU
- GWP-000001516
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between inputs
- Product type
- ControlLogix 16 Point D/I Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

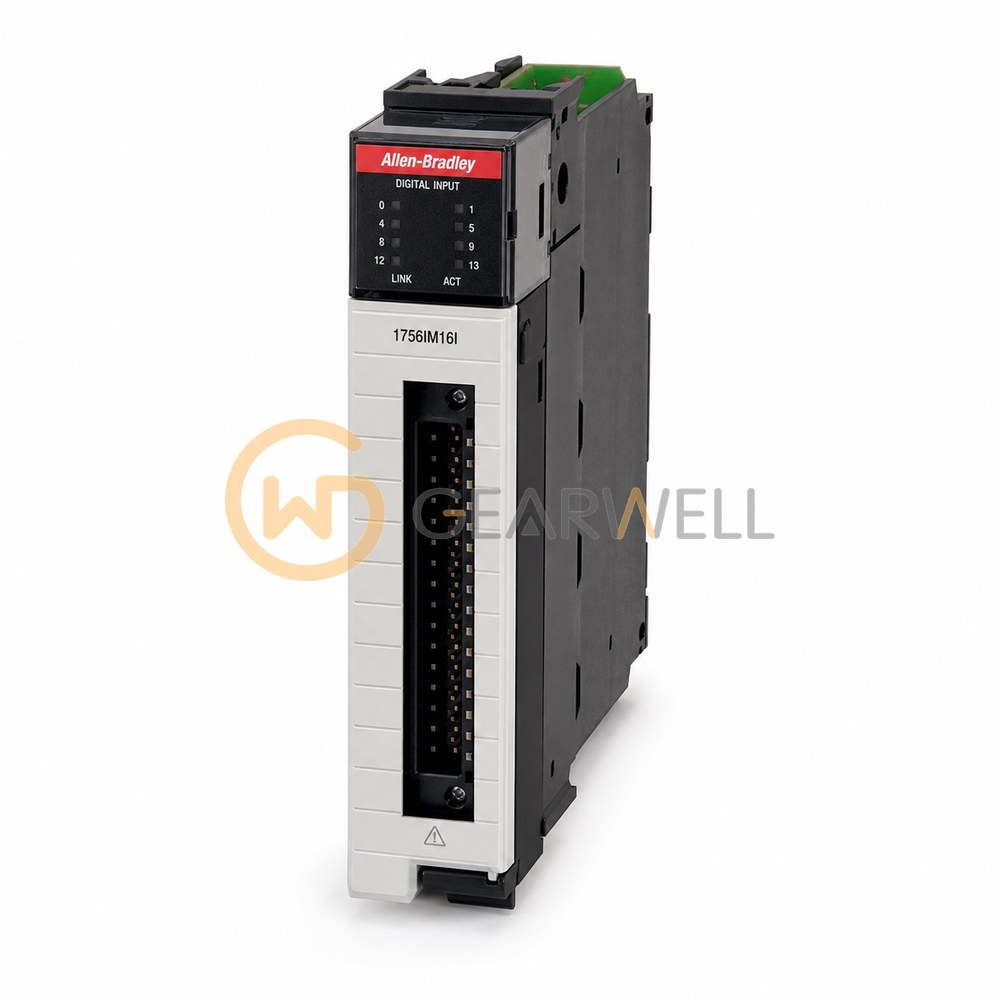

The Allen-Bradley 1756-IM16I is a ControlLogix 240V AC input module for the 1756 chassis. It has 16 individually isolated inputs for 240V AC signals, with an operating range of 159…265V AC at 47…63 Hz and input time stamps to ±200 µs. It draws 100 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IM16I ControlLogix 16-Point Isolated AC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IM16I |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between inputs |
| Product type | ControlLogix 16 Point D/I Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 16 |
| Product description | 159-265 VAC Isolated Input 16 Pts (36 Pin) |
| Operating voltage range | 159-265 V AC |
