Allen-Bradley 1756IH16I ControlLogix 16-Point Isolated DC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IH16I
- GEARWELL SKU
- GWP-000000637
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between inputs
- Product type
- ControlLogix 16 Point D/I Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

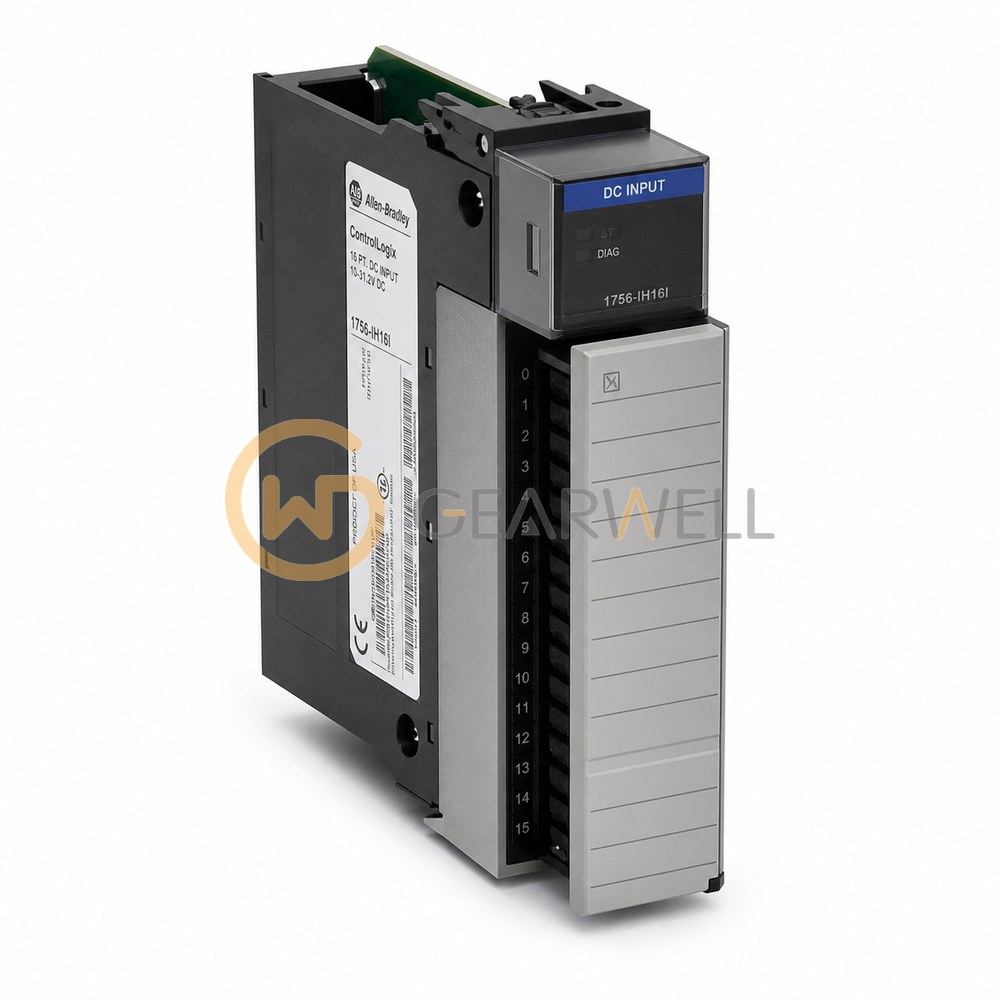

The Allen-Bradley 1756-IH16I is a ControlLogix 125V DC isolated input module for the 1756 chassis. It has 16 individually isolated sink/source inputs for 125V DC signals, with an operating range of 90…146V DC and input time stamps to ±200 µs. It draws 125 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IH16I ControlLogix 16-Point Isolated DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IH16I |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between inputs |
| Product type | ControlLogix 16 Point D/I Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 16 |
| Product description | 90-146 VDC Isolated Input 16 Pts (36 Pin) |
| Operating voltage range | 90-146 V DC |
