Allen-Bradley 1756IH16IK ControlLogix Conformally Coated 16-Point Isolated DC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IH16IK
- GEARWELL SKU
- GWP-000001975
- Category
- PLCs & I/O
Key specifications
- Inputs
- 16 individually isolated
- Product type
- ControlLogix isolated DC input module
- Enclosure type
- None (open-style)
- Voltage category
- 125 V DC sink/source
- Current draw at 5.1 V
- 125 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

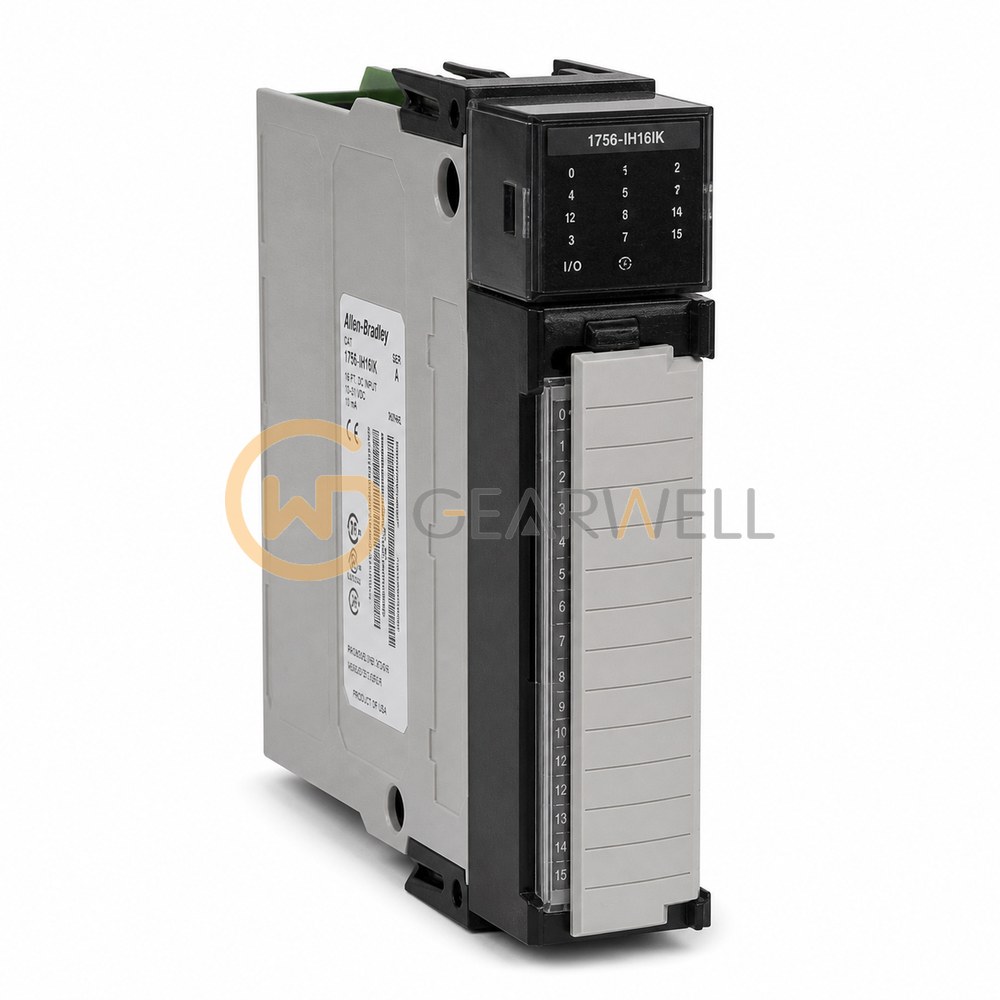

The Allen-Bradley 1756-IH16IK is a ControlLogix 125V DC isolated input module for the 1756 chassis. It has 16 individually isolated sink/source inputs for 125V DC signals, with an operating range of 90…146V DC and input time stamps to ±200 µs. It draws 125 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IH16IK ControlLogix Conformally Coated 16-Point Isolated DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IH16IK |
| Category | PLCs & I/O |
| Inputs | 16 individually isolated |
| Product type | ControlLogix isolated DC input module |
| Enclosure type | None (open-style) |
| Voltage category | 125 V DC sink/source |
| Current draw at 5.1 V | 125 mA |
| Isolation voltage | 250 V continuous, inputs-to-backplane and input-to-input |
| Total backplane power | 0.71 W |
| Operating voltage range | 90...146 V DC, temperature and channel-count derated |
