Allen-Bradley 1756IG16K ControlLogix Conformally Coated 16-Point TTL Input Module
- Brand
- Allen-Bradley
- Model
- 1756IG16K
- GEARWELL SKU
- GWP-000000726
- Category
- PLCs & I/O
Key specifications
- Voltage
- 5 V DC
- Input points
- 16
- Product type
- ControlLogix 16 Pt 5VDC D/I Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

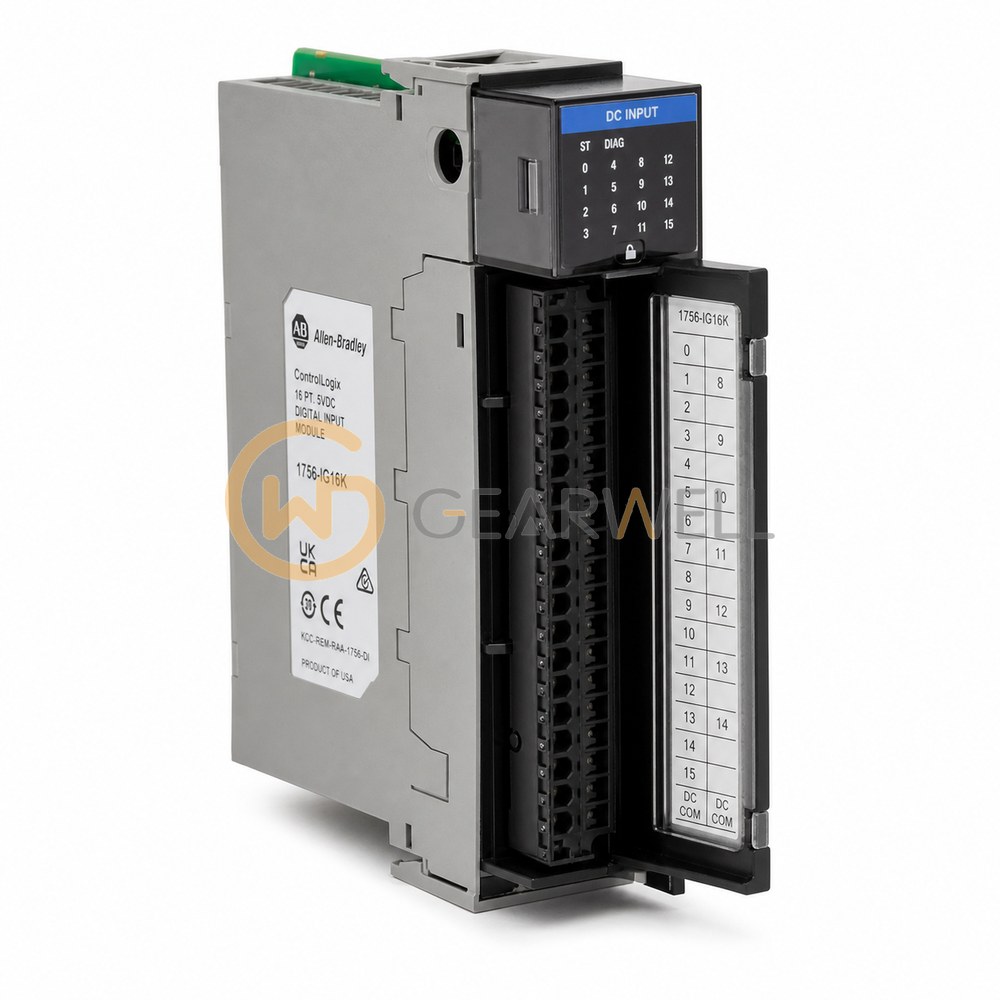

The Allen-Bradley 1756-IG16K is a ControlLogix TTL input module for the 1756 chassis. It has 16 TTL inputs in two groups of eight for 5V DC logic (low = true), with an operating range of 4.5…5.5V DC and input time stamps to ±200 µs. It draws 110 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IG16K ControlLogix Conformally Coated 16-Point TTL Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IG16K |
| Category | PLCs & I/O |
| Voltage | 5 V DC |
| Input points | 16 |
| Product type | ControlLogix 16 Pt 5VDC D/I Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Product description | 0-5 VDC TTL Input (Low True) 16 Pts (20 Pin) - Conformally Coated |
