Allen-Bradley 1756IF4FXOF2FK ControlLogix Conformally Coated High-Speed Analog I/O Module
- Brand
- Allen-Bradley
- Model
- 1756IF4FXOF2FK
- GEARWELL SKU
- GWP-000003615
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- None between channels (Single,Ended)
- Input points
- 4 differential inputs
- Input Signal
- ±10 V, 0-10 V, 0-5 V or 0-20 mA
- Output points
- 2 analog outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

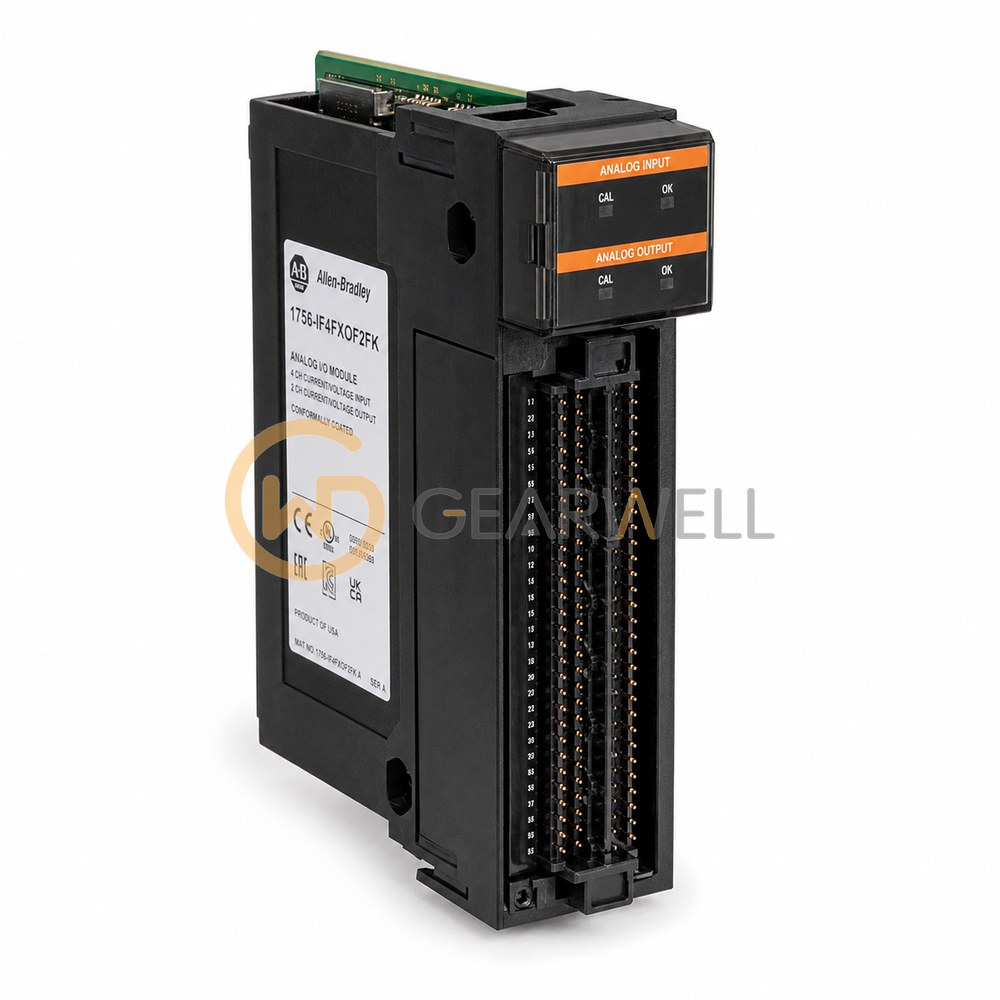

The Allen-Bradley 1756-IF4FXOF2FK is a ControlLogix high-speed input/output analog module for the 1756 chassis. It combines four high-speed, sub-millisecond differential analog inputs and two high-speed voltage or current outputs (±10V and 0…20 mA ranges), with a minimum update period (RPI) of 1 ms and IEEE 32-bit floating point data. It draws 375 mA at 5.1V DC and 100 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IF4FXOF2FK ControlLogix Conformally Coated High-Speed Analog I/O Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IF4FXOF2FK |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | None between channels (Single,Ended) |
| Input points | 4 differential inputs |
| Input Signal | ±10 V, 0-10 V, 0-5 V or 0-20 mA |
| Output points | 2 analog outputs |
| Output Signal | ±10 V or 0-20 mA |
| Terminal count | 36-pin |
| Special Features | Conformal coating; four high-speed differential analog inputs and two analog outputs |
| Conformal coating | true |
| Number Of Channels | 6 |
