Allen-Bradley 1756IF16K ControlLogix Conformally Coated 16-Point Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1756IF16K
- GEARWELL SKU
- GWP-000001226
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- 250V (continuous), reinforced,insulation type,inputs-to-backplane. No,isolation between individual,inputs
- Input points
- 16
- Input Signal
- 0-10.25V, +/- 10.25V,0-5.125V, 0-20.5mA
- Terminal count
- 36-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

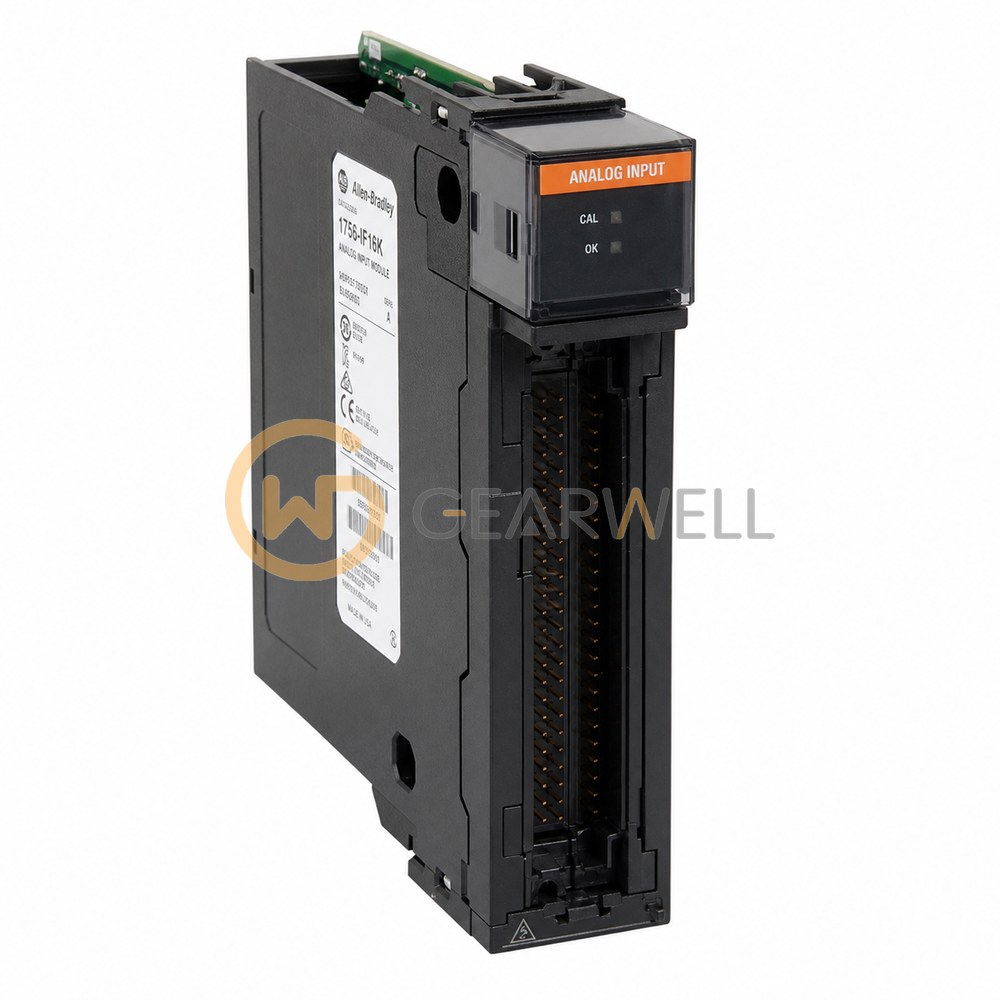

The Allen-Bradley 1756-IF16K is a ControlLogix current/voltage analog input module for the 1756 chassis. It accepts 16 single-ended, eight differential or four high-speed differential voltage or current inputs in the ±10V, 0…10V, 0…5V and 0…20 mA ranges, with sigma-delta conversion and up to 16-bit resolution. It draws 200 mA at 5.1V DC and 35 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IF16K ControlLogix Conformally Coated 16-Point Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IF16K |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | 250V (continuous), reinforced,insulation type,inputs-to-backplane. No,isolation between individual,inputs |
| Input points | 16 |
| Input Signal | 0-10.25V, +/- 10.25V,0-5.125V, 0-20.5mA |
| Terminal count | 36-pin |
| Special Features | Conformal Coating |
