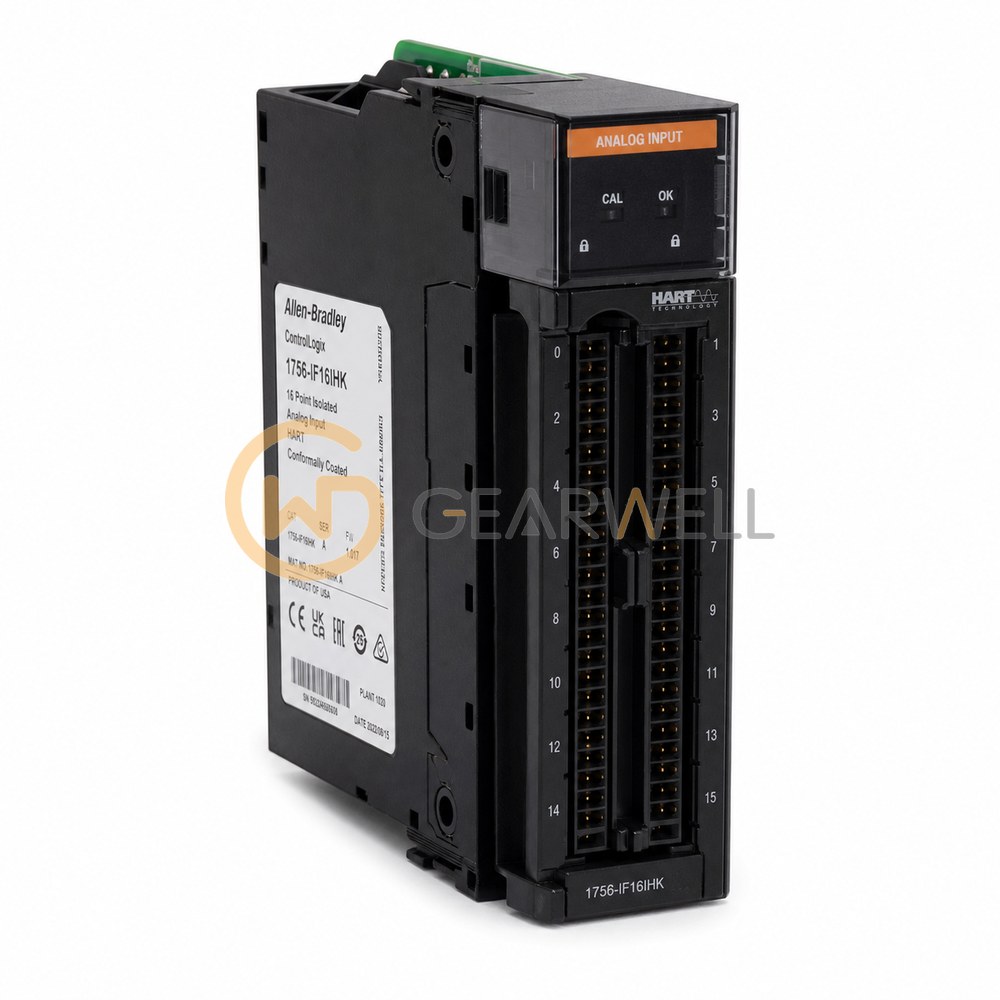

Allen-Bradley 1756IF16IHK ControlLogix Conformally Coated 16-Point Isolated HART Input Module
- Brand
- Allen-Bradley
- Model
- 1756IF16IHK
- GEARWELL SKU
- GWP-000004388
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- 250V (continuous), Reinforced,insulation type, inputs to,backplane
- Resolution
- 16-21 bits
- Input Signal
- 0-20mA, 4-20mA
- Output Signal
- 4-20mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IF16IHK is a ControlLogix current analog input module with HART protocol for the 1756 chassis. It has 16 isolated current inputs (0…20 mA or 4…20 mA) with HART communication and 16…21 bit resolution. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IF16IHK ControlLogix Conformally Coated 16-Point Isolated HART Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IF16IHK |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | 250V (continuous), Reinforced,insulation type, inputs to,backplane |
| Resolution | 16-21 bits |
| Input Signal | 0-20mA, 4-20mA |
| Output Signal | 4-20mA |
| Special Features | Supports HART Protocol |
| Conformal coating | true |
| Number Of Channels | 16 |
