Allen-Bradley 1756IF8IH ControlLogix 8-Point Isolated HART Input Module
- Brand
- Allen-Bradley
- Model
- 1756IF8IH
- GEARWELL SKU
- GWP-000002930
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Input Signal
- 0-20mA, 4-20mA
- Number Of Channels
- 8
- Calibrated accuracy
- 0.15...1.5% of full scale, filter dependent@ 25 °C with HART disabled, 1.5% of full scale with 250 Hz filter @ 25 °C with HART enabled, 0.5% of full scale with 100 Hz filter @ 25 °C with HART enabled, 0.2% of full scale with 50 Hz or 60 Hz filter @ 25 °C
- Enclosure type rating
- None (open-style)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

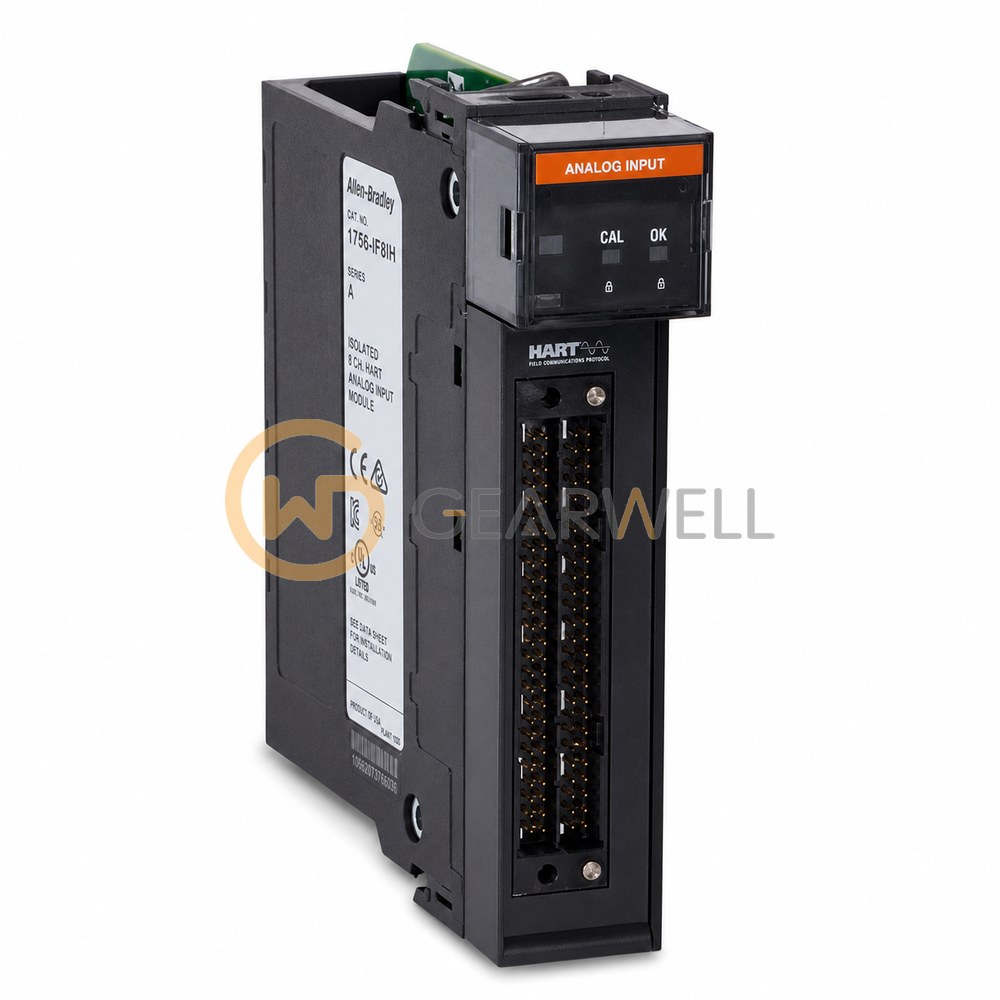

The Allen-Bradley 1756-IF8IH is a ControlLogix isolated current analog input module with HART protocol for the 1756 chassis. It has eight isolated current inputs (0…20 mA or 4…20 mA) with HART communication and 16…21 bit resolution. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IF8IH ControlLogix 8-Point Isolated HART Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IF8IH |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Input Signal | 0-20mA, 4-20mA |
| Number Of Channels | 8 |
| Calibrated accuracy | 0.15...1.5% of full scale, filter dependent@ 25 °C with HART disabled, 1.5% of full scale with 250 Hz filter @ 25 °C with HART enabled, 0.5% of full scale with 100 Hz filter @ 25 °C with HART enabled, 0.2% of full scale with 50 Hz or 60 Hz filter @ 25 °C |
| Enclosure type rating | None (open-style) |
| Gain drift with temperature | 20 ppm/°C |
| Analogue inputs configurable | true |
| Analogue outputs configurable | false |
