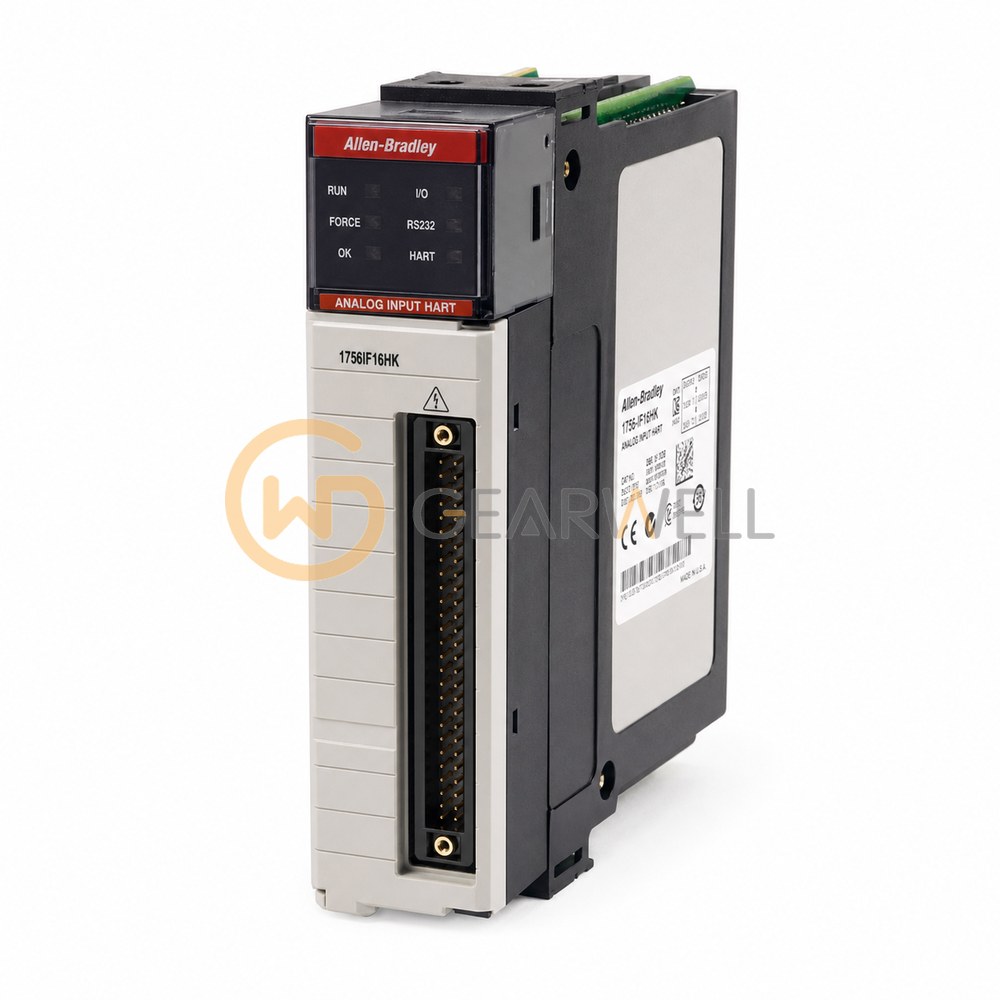

Allen-Bradley 1756IF16HK ControlLogix Conformally Coated 16-Point HART Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1756IF16HK
- GEARWELL SKU
- GWP-000002870
- Category
- PLCs & I/O
Key specifications
- Display
- Module Health, In Calibration,Mode
- Isolation
- None between channels (Single,Ended)
- Resolution
- 16-21 bits
- Input points
- 16 differential current inputs
- Input Signal
- 0-20mA, 4-20mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IF16HK is a ControlLogix current analog input module with HART protocol for the 1756 chassis. It has 16 differential current inputs (0…20 mA or 4…20 mA) with a dedicated HART modem per channel and 16…21 bit resolution. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IF16HK ControlLogix Conformally Coated 16-Point HART Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IF16HK |
| Category | PLCs & I/O |
| Display | Module Health, In Calibration,Mode |
| Isolation | None between channels (Single,Ended) |
| Resolution | 16-21 bits |
| Input points | 16 differential current inputs |
| Input Signal | 0-20mA, 4-20mA |
| Special Features | Supports HART Protocol |
