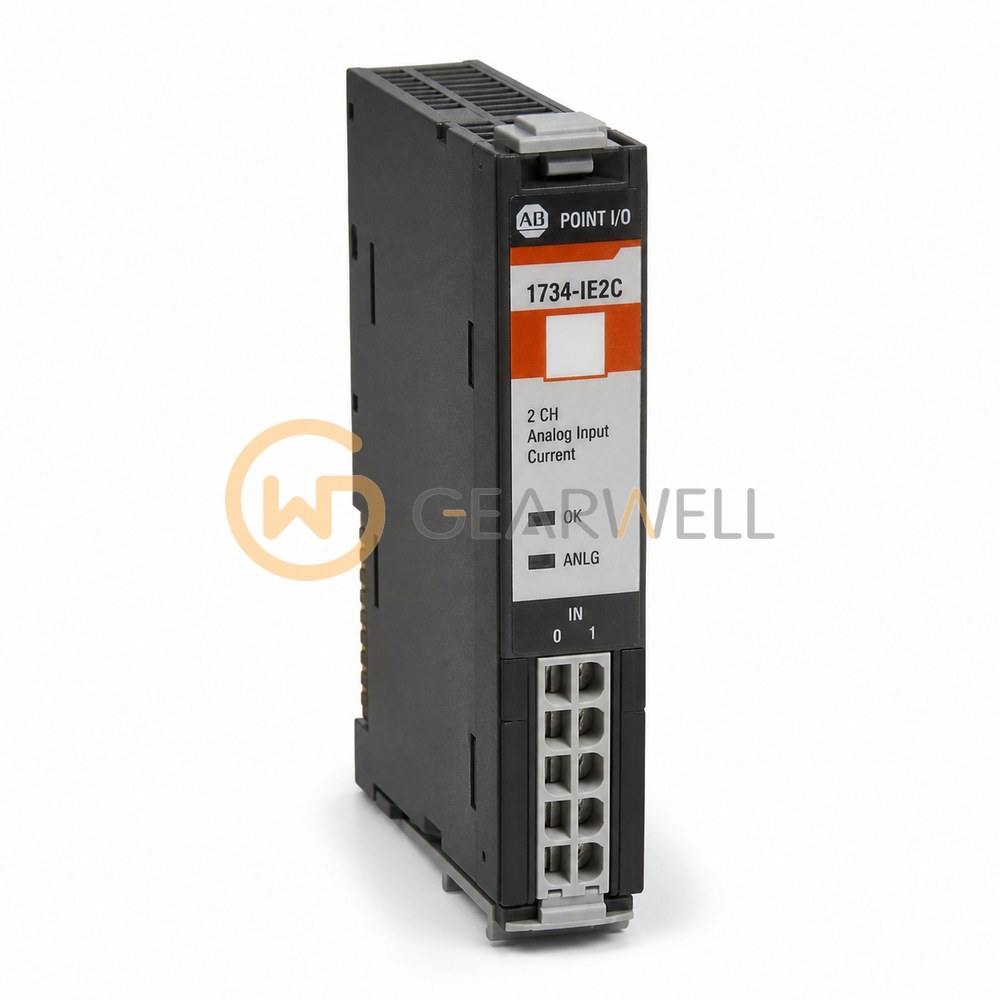

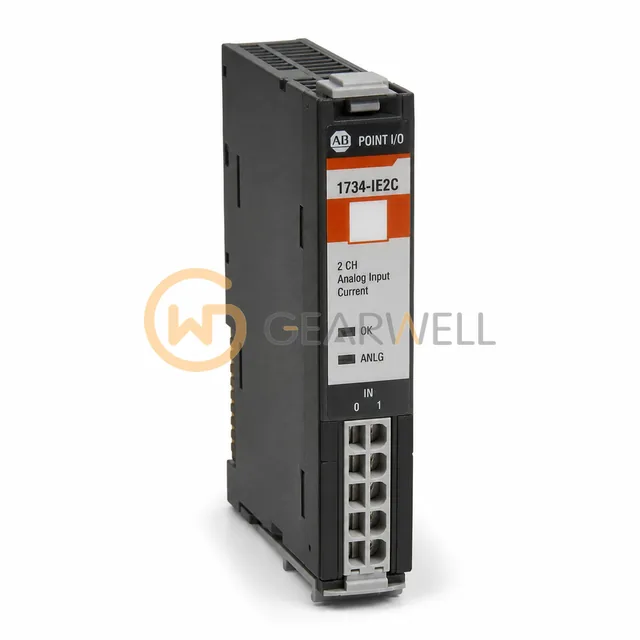

Allen-Bradley 1734-IE2C POINT I/O 2-Channel Analog Current Input Module
- Brand
- Allen-Bradley
- Model
- 1734-IE2C
- GEARWELL SKU
- GWP-000001468
- Category
- PLCs & I/O
Key specifications
- External/field supply (Series C)
- 24 V DC nominal; 10…28.8 V DC external/field input.
- Product type
- POINT I/O 2-channel current input module
- Input channels (Series C)
- 2 single-ended, nonisolated current inputs.
- Input resolution (Series C)
- 16 bits over 0…21 mA; 0.32 µA/count.
- Manufacturer lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-IE2C is a POINT I/O analog input module with 2 single-ended, non-isolated current inputs for 4…20 mA or 0…20 mA, 16-bit resolution and 0.1% full scale accuracy at 25 °C. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-IE2C POINT I/O 2-Channel Analog Current Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-IE2C |
| Category | PLCs & I/O |
| External/field supply (Series C) | 24 V DC nominal; 10…28.8 V DC external/field input. |
| Product type | POINT I/O 2-channel current input module |
| Input channels (Series C) | 2 single-ended, nonisolated current inputs. |
| Input resolution (Series C) | 16 bits over 0…21 mA; 0.32 µA/count. |
| Manufacturer lifecycle status | Active |
| Absolute accuracy (Series C) | 0.1% full scale at 25 °C. |
| Module update time (Series C) | 100 ms at the default 60 Hz notch setting. |
| Input signal ranges (Series C) | 4…20 mA or 0…20 mA. |
| Product description | 2-channel analog current input module for POINT I/O, with single-ended, nonisolated inputs. |
