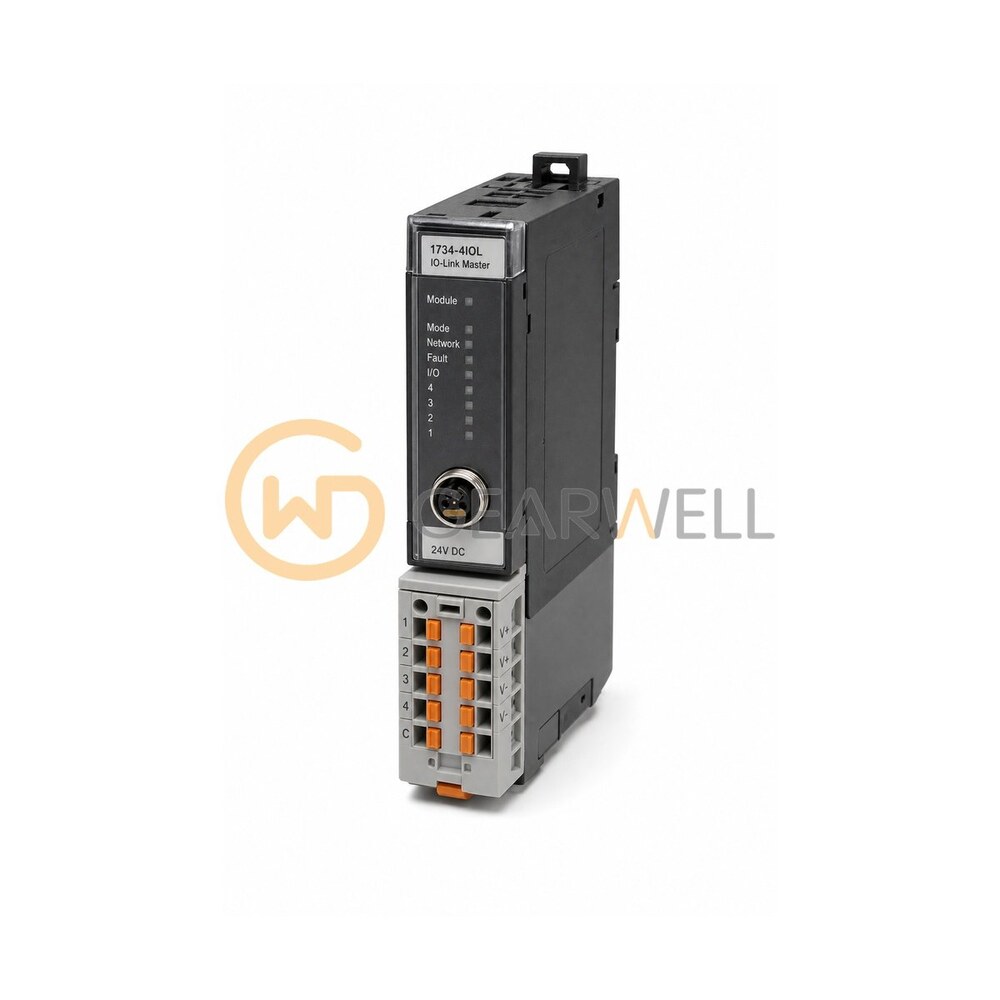

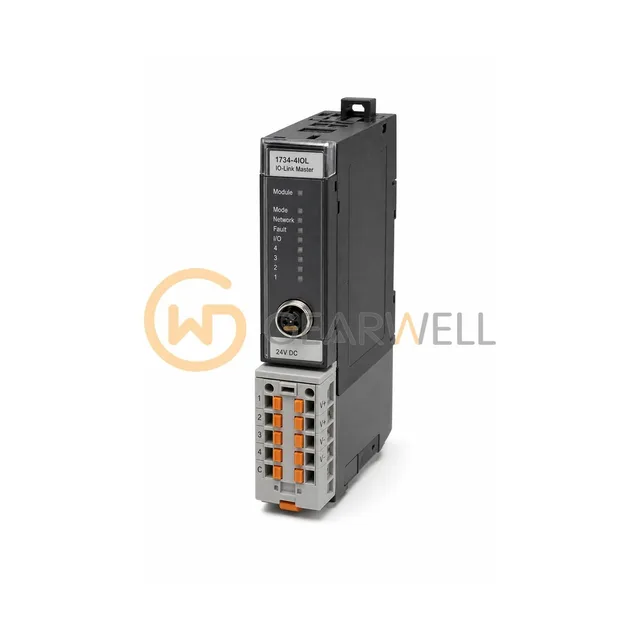

Allen-Bradley 1734-4IOL POINT I/O 4-Channel IO-Link Master Module
- Brand
- Allen-Bradley
- Model
- 1734-4IOL
- GEARWELL SKU
- GWP-000001588
- Category
- Industrial Automation Parts
Key specifications
- Field power supply (Series B)
- 24 V DC nominal; 19.2…28.8 V DC.
- Configurable channels (Series B)
- 4 single-ended, nonisolated channels; each selectable as IO-Link master, standard digital input or standard digital output.
- Product type
- POINT I/O 4-channel IO-Link master module
- POINTBus current (Series B)
- 100 mA maximum at 5 V DC.
- IO-Link communication rates
- COM1: 4.8 kBd; COM2: 38.4 kBd; COM3: 230.4 kBd.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-4IOL is a POINT I/O IO-Link master module with 4 channels that can each be set as an IO-Link master port or as standard digital input or output. It supports 4.8 kB, 38.4 kB and 230.4 kB IO-Link rates, device cables up to 20 m and 24V DC field power (19.2…28.8V DC). Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-4IOL POINT I/O 4-Channel IO-Link Master Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-4IOL |
| Category | Industrial Automation Parts |
| Field power supply (Series B) | 24 V DC nominal; 19.2…28.8 V DC. |
| Configurable channels (Series B) | 4 single-ended, nonisolated channels; each selectable as IO-Link master, standard digital input or standard digital output. |
| Product type | POINT I/O 4-channel IO-Link master module |
| POINTBus current (Series B) | 100 mA maximum at 5 V DC. |
| IO-Link communication rates | COM1: 4.8 kBd; COM2: 38.4 kBd; COM3: 230.4 kBd. |
| Maximum IO-Link device cable length (Series B) | 20 m (65.6 ft). |
| Required EtherNet/IP adapter | 1734-AENT or 1734-AENTR: Series B firmware 5.012 or later, or Series C firmware 6.011 or later. |
| Configuration software | Studio 5000 Logix Designer version 20 or later. |
| Standard digital output ratings (Series B) | 0.15 A per channel; 0.6 A maximum per module, at 24 V DC. |
