Allen-Bradley 1734-IK POINT I/O Incremental Encoder/Counter Module
- Brand
- Allen-Bradley
- Model
- 1734-IK
- GEARWELL SKU
- GWP-000001565
- Category
- PLCs & I/O
Key specifications
- Module power (Series C)
- POINTBus-powered; no additional external power is required for the module.
- Product type
- POINT I/O incremental encoder/counter module
- Input filter selections (Series C)
- Off, 10 µs, 100 µs, 1.0 ms or 10.0 ms.
- Maximum input frequency (Series C)
- 1.0 MHz in counter or encoder X1 mode; 500 kHz in encoder X2 mode without filtering; 250 kHz in encoder X4 mode without filtering.
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

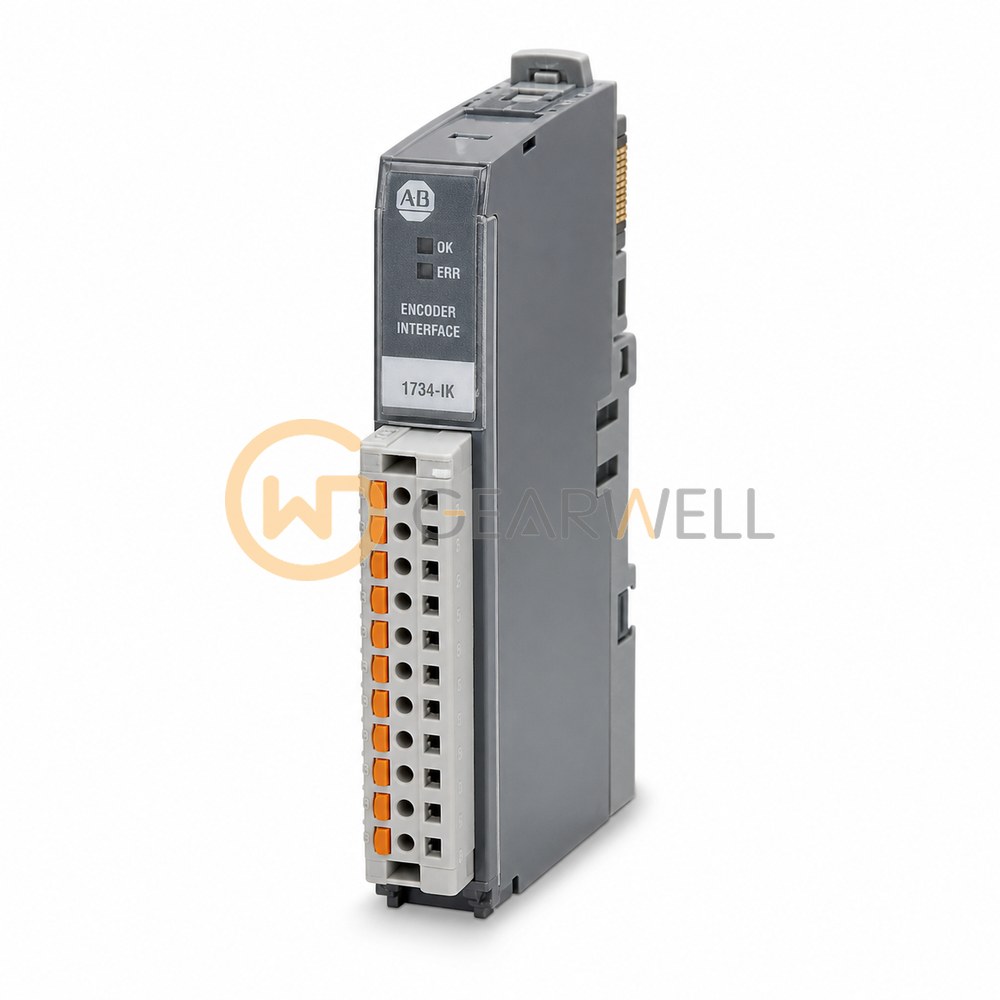

The Allen-Bradley 1734-IK is a POINT I/O incremental encoder and counter module with 1 input group (A, B and Z with returns) for 15…24V DC signals. It counts at up to 1.0 MHz in counter and encoder X1 configurations and returns a 24-bit count; it draws 160 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-IK POINT I/O Incremental Encoder/Counter Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-IK |
| Category | PLCs & I/O |
| Module power (Series C) | POINTBus-powered; no additional external power is required for the module. |
| Product type | POINT I/O incremental encoder/counter module |
| Input filter selections (Series C) | Off, 10 µs, 100 µs, 1.0 ms or 10.0 ms. |
| Maximum input frequency (Series C) | 1.0 MHz in counter or encoder X1 mode; 500 kHz in encoder X2 mode without filtering; 250 kHz in encoder X4 mode without filtering. |
| Lifecycle status | Active |
| POINTBus current (Series C) | 160 mA maximum. |
| Operating temperature (Series C) | -20…55 °C (-4…131 °F) |
| Input configuration (Series C) | 1 group: A/A return, B/B return and Z/Z return. |
| Product description | Reads one group of A, B and Z incremental encoder signals. |
| Input signal voltage (Series C) | 15…24 V DC; observe the manual input-voltage derating curve. |
