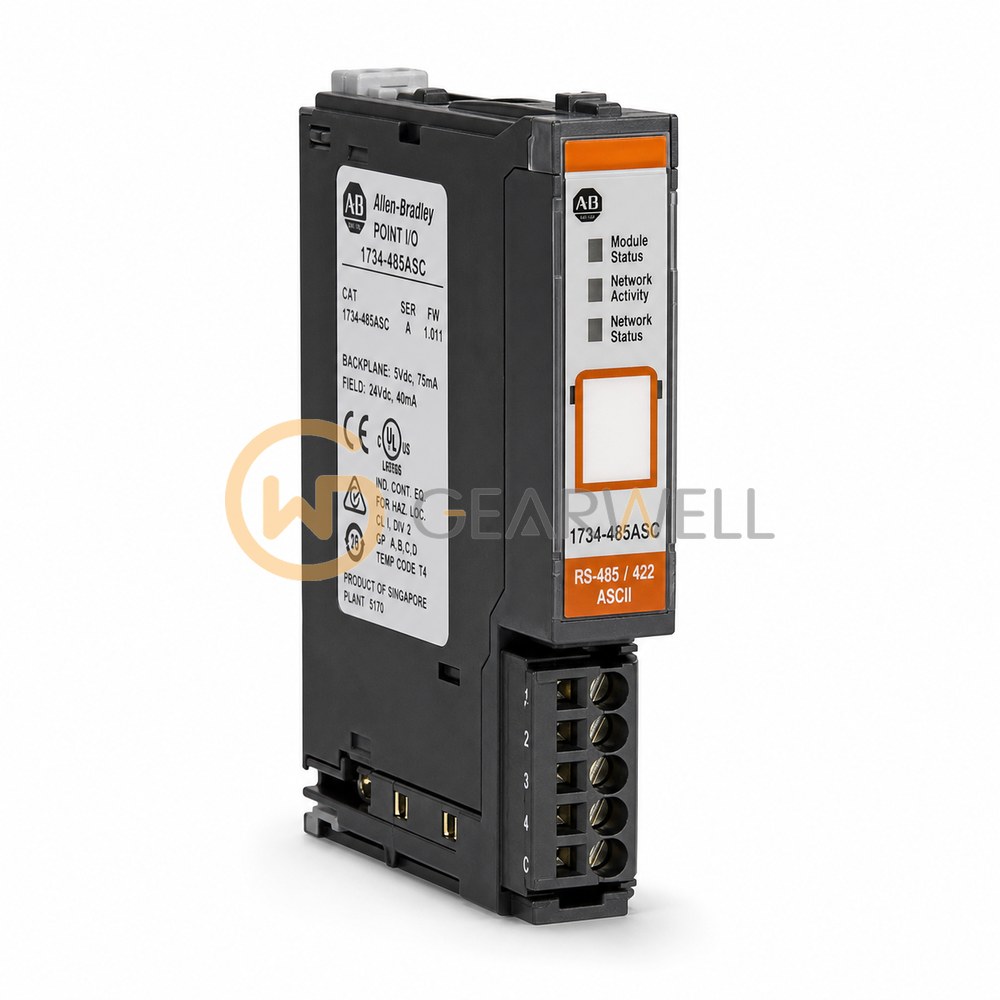

Allen-Bradley 1734-485ASC POINT I/O RS-485/422 ASCII Interface
- Brand
- Allen-Bradley
- Model
- 1734-485ASC
- GEARWELL SKU
- GWP-000002312
- Category
- PLCs & I/O
Key specifications
- Nominal external supply
- 24 V DC
- Product type
- POINT I/O RS-485/422 ASCII interface
- Maximum serial record length
- 128 receive characters and 128 transmit characters.
- External DC supply
- 24 V DC nominal; 10…28.8 V DC range.
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-485ASC is a POINT I/O serial interface module with 1 full-duplex RS-422/RS-485 channel at up to 38.4 Kbps. It lets a device with a serial output send up to 128 bytes of ASCII data to any network that POINT I/O supports, and draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-485ASC POINT I/O RS-485/422 ASCII Interface |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-485ASC |
| Category | PLCs & I/O |
| Nominal external supply | 24 V DC |
| Product type | POINT I/O RS-485/422 ASCII interface |
| Maximum serial record length | 128 receive characters and 128 transmit characters. |
| External DC supply | 24 V DC nominal; 10…28.8 V DC range. |
| Lifecycle status | Active |
| POINTBus current | 75 mA maximum at 5 V DC. |
| Serial interface | RS-485 or RS-422 ASCII. |
| Serial baud rates | 1200, 2400, 4800, 9600, 19200 or 38400 baud. |
| Product description | Links RS-485 or RS-422 ASCII serial devices to the POINT I/O backplane. |
