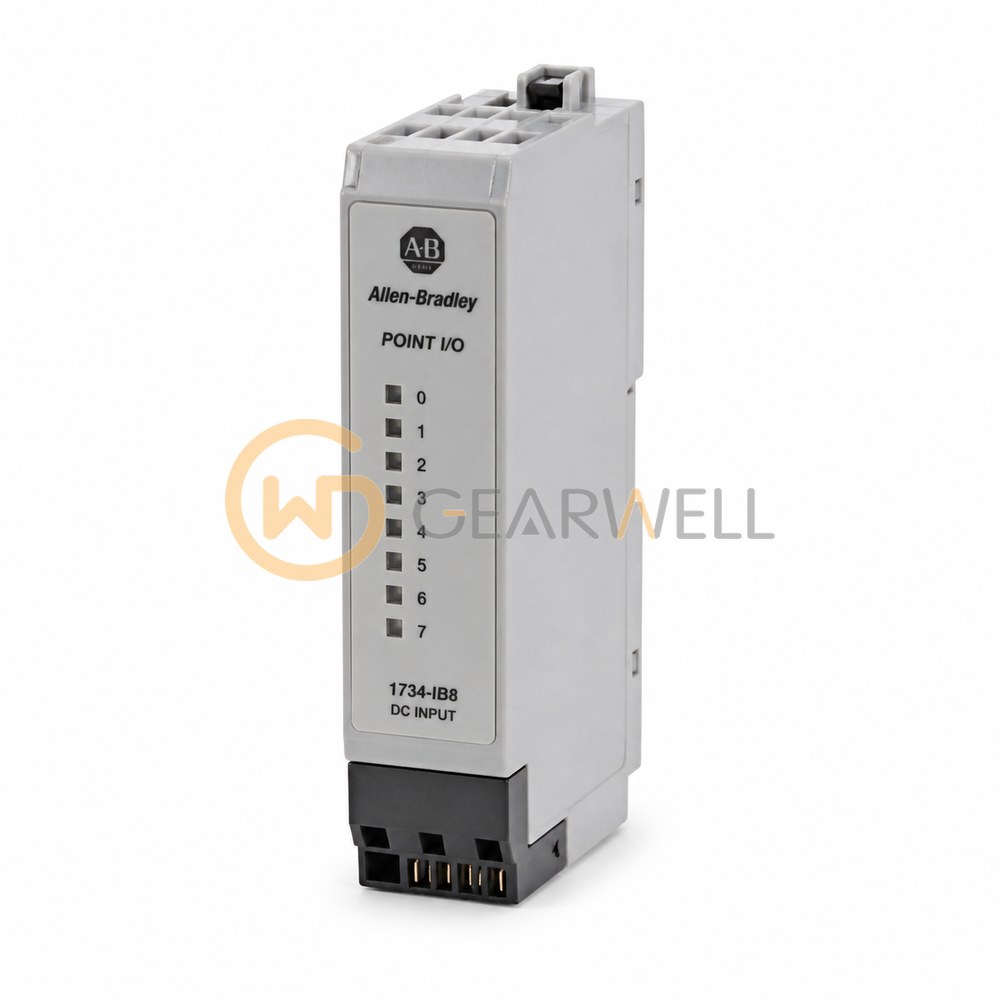

Allen-Bradley 1734-IB8 POINT I/O Digital Input Module
- Brand
- Allen-Bradley
- Model
- 1734-IB8
- GEARWELL SKU
- GWP-000000389
- Category
- Industrial Automation Parts
Key specifications
- Product type
- POINT I/O 8 Point Digital Input Module
- Lifecycle status
- Active
- Temperature Rating
- -20…55 °C (-4…131 °F)
- Product description
- 24V Dc 8 Channel Sink Input Module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-IB8 is a POINT I/O digital input module with 8 sinking inputs in 1 group for 24V DC (10…28.8V DC), 4 mA at 24V DC and a 0.5 ms hardware filter plus a selectable 0…65 ms filter. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-IB8 POINT I/O Digital Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-IB8 |
| Category | Industrial Automation Parts |
| Product type | POINT I/O 8 Point Digital Input Module |
| Lifecycle status | Active |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Product description | 24V Dc 8 Channel Sink Input Module |
