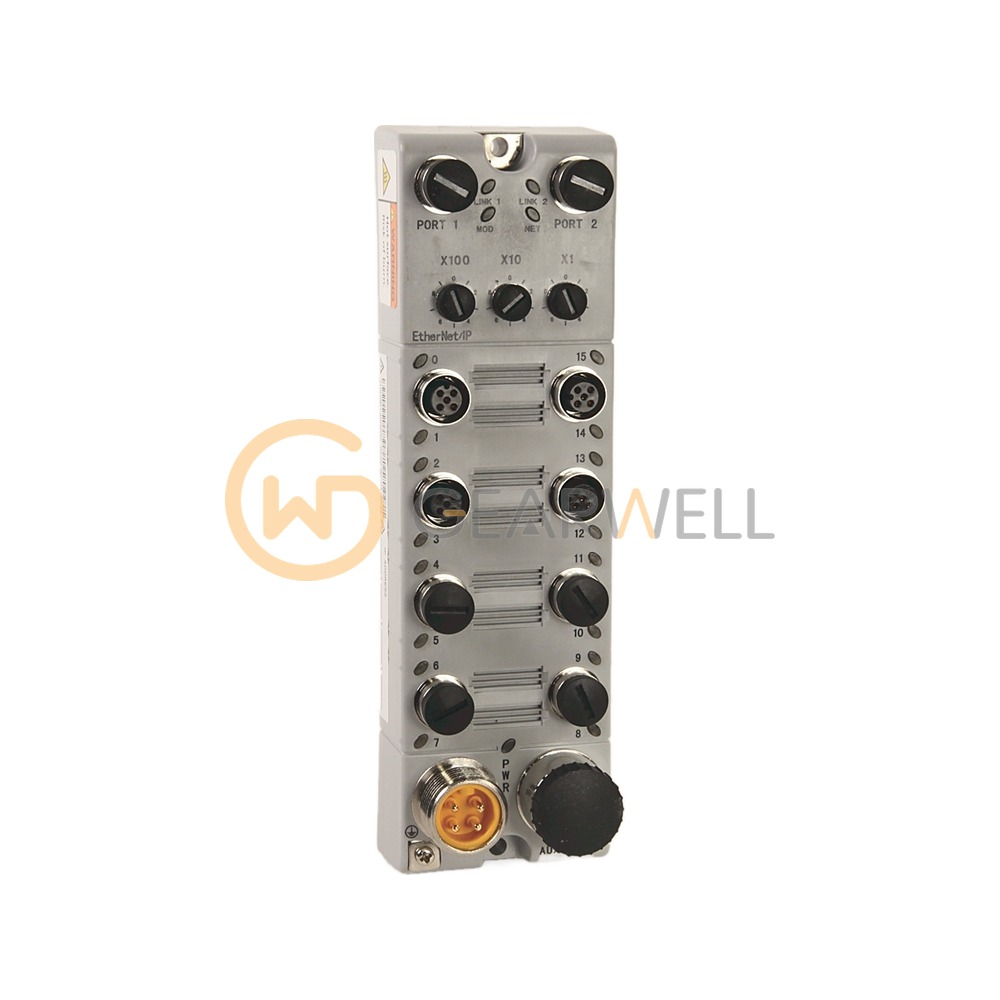

Allen-Bradley 1732E-16CFGM12QCR ArmorBlock EtherNet/IP 16-Pt I/O Block
- Brand
- Allen-Bradley
- Model
- 1732E-16CFGM12QCR
- GEARWELL SKU
- GWP-000014166
- Category
- PLCs & I/O
Key specifications
- Evidence
- Rockwell Automation publication 1732E-IN010G-EN-E (product web page not reachable)
- Input type
- Sink, 24V DC
- Output type
- Source, 24V DC
- Catalog number
- 1732E-16CFGM12QCR
- Enclosure rating
- IP65/66/67/69K (when marked)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1732E-16CFGM12QCR is a 1732E ArmorBlock EtherNet/IP I/O block with 16 self-configuring points, M12 DC micro quick-connect I/O and dual Ethernet ports, without CIP Sync or diagnostics.
Technical reference
| Product name | Allen-Bradley 1732E-16CFGM12QCR ArmorBlock EtherNet/IP 16-Pt I/O Block |
|---|---|
| Brand | Allen-Bradley |
| Model | 1732E-16CFGM12QCR |
| Category | PLCs & I/O |
| Evidence | Rockwell Automation publication 1732E-IN010G-EN-E (product web page not reachable) |
| Input type | Sink, 24V DC |
| Output type | Source, 24V DC |
| Catalog number | 1732E-16CFGM12QCR |
| Enclosure rating | IP65/66/67/69K (when marked) |
| Type / description | ArmorBlock 2-port EtherNet/IP module with QuickConnect |
| Communication rate | EtherNet/IP 10/100 Mbps, full or half-duplex |
| Operating temperature | -20…+60 °C |
| Number of inputs / outputs | 16 / 16 (configurable) |
| Output current per point, max | 0.5 A |
