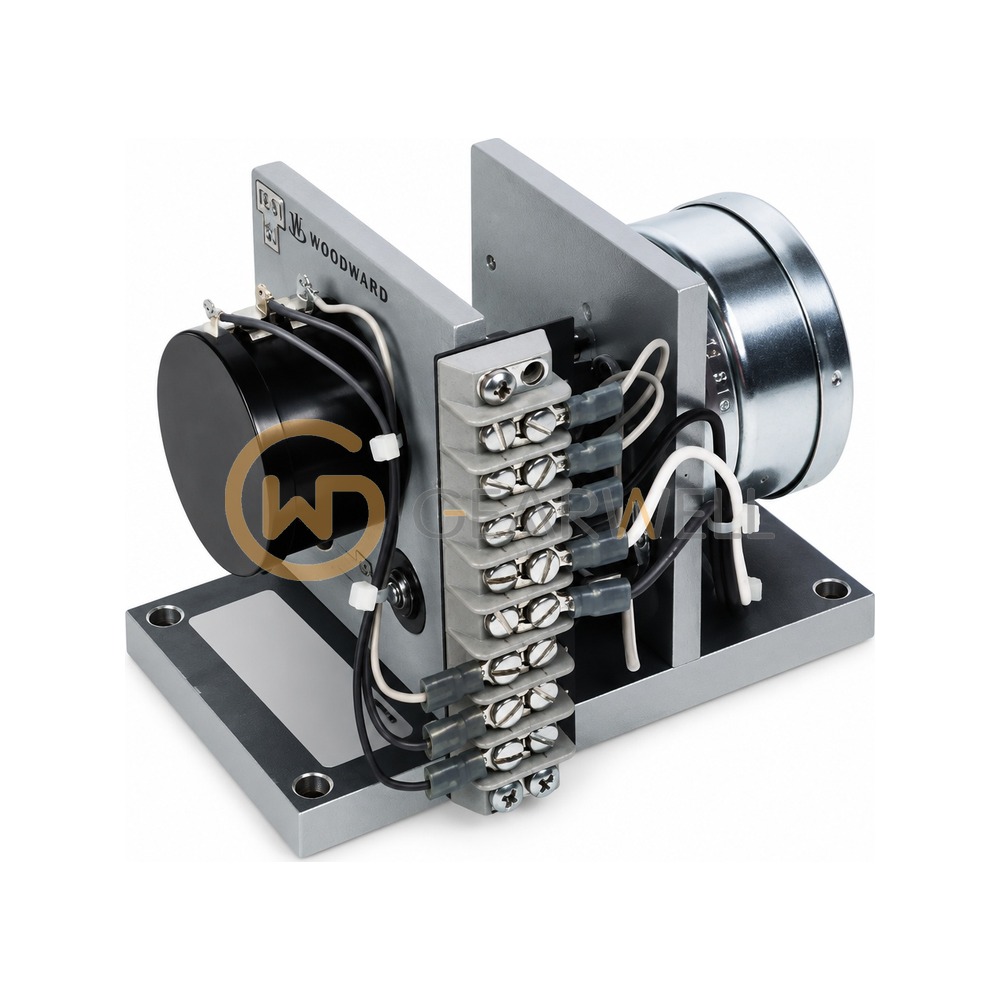

WOODWARD 8272-447 MOP Motor Operated Potentiometer 24 VDC 5 kOhm
- Brand
- WOODWARD
- Model
- 8272-447
- GEARWELL SKU
- GWP-000035153
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 369 g
- Evidence
- Woodward Product Specification 82436 Rev H
- Brand note
- Collected as WOODWORD
- Motor speed
- 1 rpm
- Motor voltage
- 24 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WOODWARD 8272-447 MOP Motor Operated Potentiometer 24 VDC 5 kOhm |
|---|---|
| Brand | WOODWARD |
| Model | 8272-447 |
| Category | PLCs & I/O |
| Weight | approx. 369 g |
| Evidence | Woodward Product Specification 82436 Rev H |
| Brand note | Collected as WOODWORD |
| Motor speed | 1 rpm |
| Motor voltage | 24 VDC |
| Potentiometer turns | 10 |
| Operating temperature | -29 to +66 °C |
| Potentiometer resistance | 5 kOhm |
| Potentiometer construction | Wire wound, ±5% tolerance, ±0.25% linearity |
| Potentiometer power rating | 1 W |
