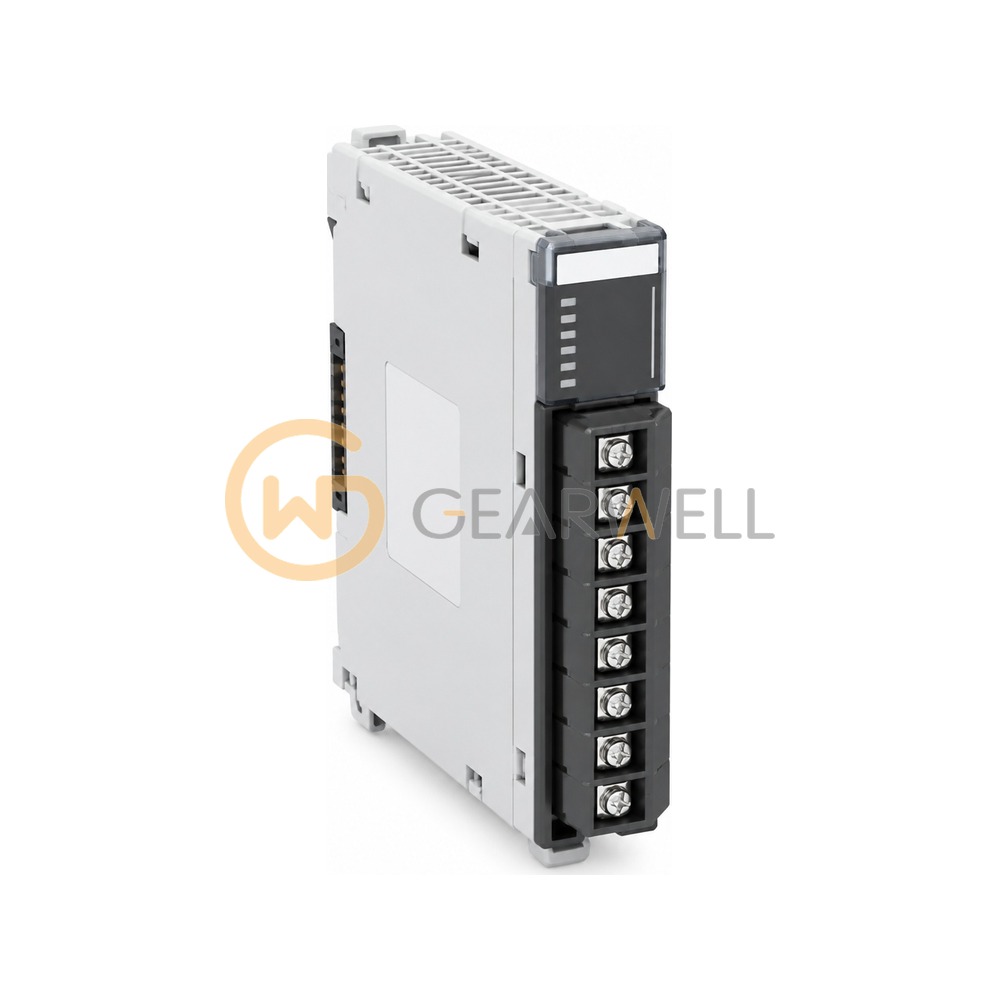

YOKOGAWA F3DA04-1N FA-M3 Analog Output Module
- Brand
- YOKOGAWA
- Model
- F3DA04-1N
- GEARWELL SKU
- GWP-000035347
- Category
- PLCs & I/O
Key specifications
- Weight
- 200 g
- Resolution
- 12-bit; 5.7 mV / 5.7 µA
- Conversion speed
- 4 ms (fixed)
- Overall accuracy
- 23±2°C: ±0.2% FS; 0 to 55°C: ±0.5% FS
- Number of outputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA F3DA04-1N FA-M3 Analog Output Module |
|---|---|
| Brand | YOKOGAWA |
| Model | F3DA04-1N |
| Category | PLCs & I/O |
| Weight | 200 g |
| Resolution | 12-bit; 5.7 mV / 5.7 µA |
| Conversion speed | 4 ms (fixed) |
| Overall accuracy | 23±2°C: ±0.2% FS; 0 to 55°C: ±0.5% FS |
| Number of outputs | 4 |
| Current consumption | 100 mA (5 V DC) |
| External connection | 18-point terminal block, M3.5 screw |
| Output signal range | -10 to 10 V DC or 4 to 20 mA DC |
| External power supply | 24 V DC ±10%, 180 mA |
