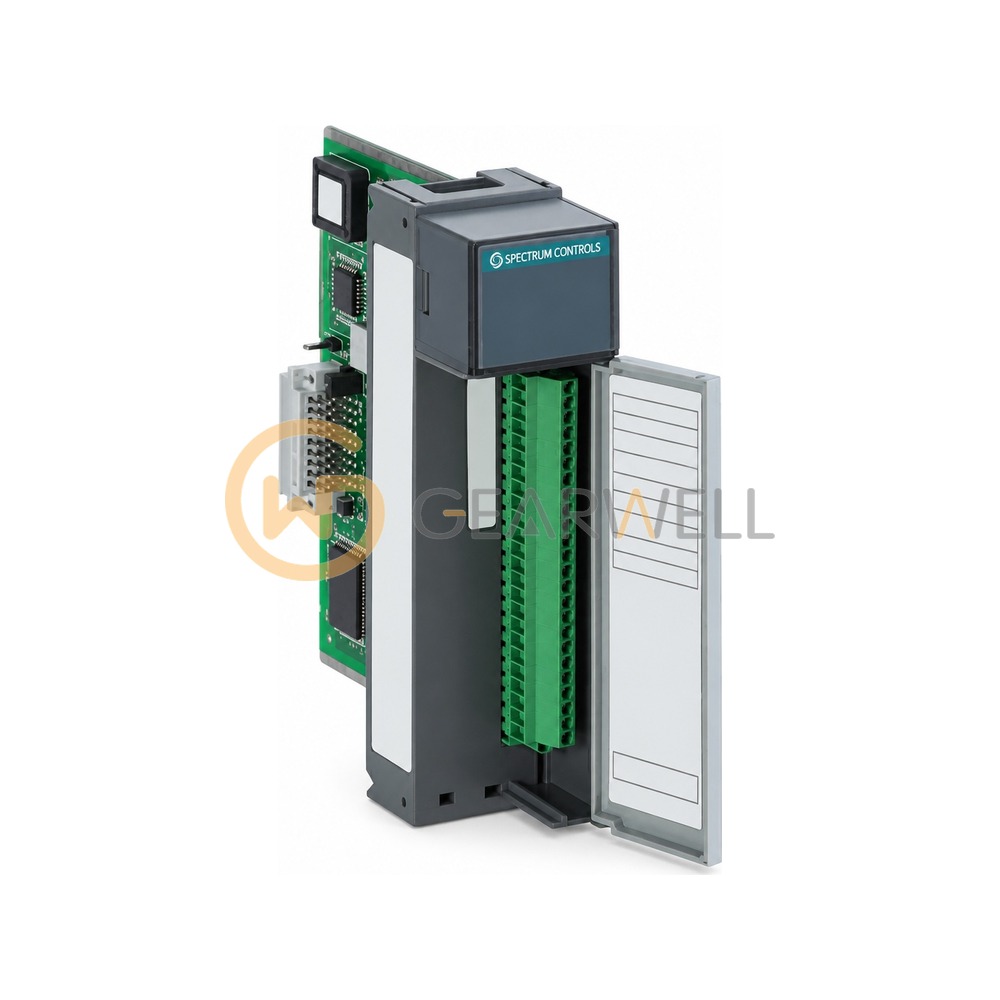

Spectrum Controls 1746sc-CTR8 SLC 500 8-Ch Counter/Flowmeter Module

Key specifications

Channels: 8 differential counter inputs / 4 quadrature encoder channels
Evidence: Spectrum Controls user manual 0300181-09 Rev. A0 (spectrumcontrols.com)
Description: 8-Ch Counter/Flowmeter Input Module (50 kHz)
Input modes: DC counter, AC flow meter
Catalog number: 1746sc-CTR8

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Spectrum Controls 1746sc-CTR8 SLC 500 8-Ch Counter/Flowmeter Module
Brand	Spectrum Controls
Model	1746sc-CTR8
Category	PLCs & I/O
Channels	8 differential counter inputs / 4 quadrature encoder channels
Evidence	Spectrum Controls user manual 0300181-09 Rev. A0 (spectrumcontrols.com)
Description	8-Ch Counter/Flowmeter Input Module (50 kHz)
Input modes	DC counter, AC flow meter
Catalog number	1746sc-CTR8
Backplane current	225 mA @ 5 V; 125 mA @ 24 V
Maximum count value	-8,388,608 to +8,388,607 (high range)
Input voltage ranges	AC 0-30 Vp; 5, 12, 24 V DC
Operating temperature	0 to 60 °C
Isolation, channel to rack	1000 V DC continuous
Counter speed / input frequency	0 Hz to 50 kHz (AC and DC)
