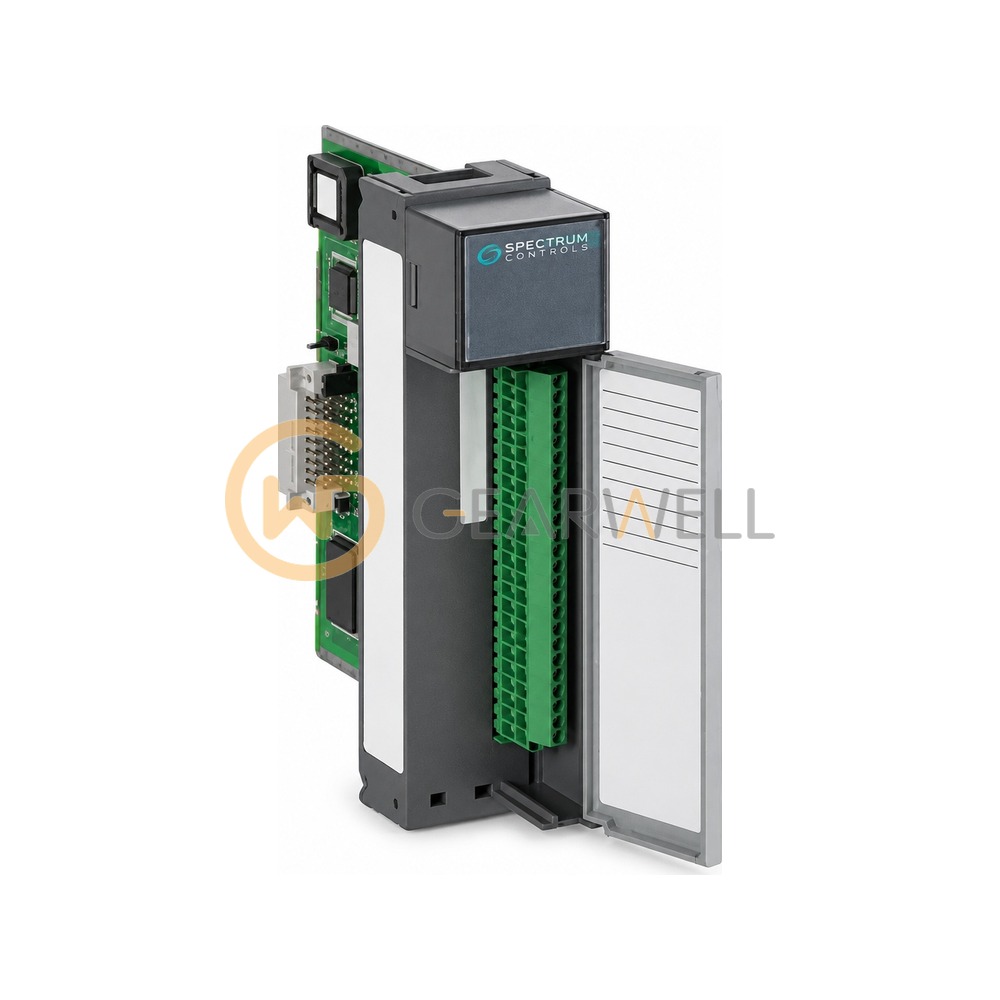

Spectrum Controls 1746sc-CTR4 SLC 500 4-Ch Counter/Flowmeter Module
- Brand
- Spectrum Controls
- Model
- 1746sc-CTR4
- GEARWELL SKU
- GWP-000035376
- Category
- PLCs & I/O
Key specifications
- Channels
- 4 differential counter inputs / 2 quadrature encoder channels
- Evidence
- Spectrum Controls user manual 0300181-09 Rev. A0 (spectrumcontrols.com)
- Input modes
- DC counter, AC flow meter
- Catalog number
- 1746sc-CTR4
- Backplane current
- 175 mA @ 5 V; 75 mA @ 24 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Spectrum Controls 1746sc-CTR4 SLC 500 4-Ch Counter/Flowmeter Module |
|---|---|
| Brand | Spectrum Controls |
| Model | 1746sc-CTR4 |
| Category | PLCs & I/O |
| Channels | 4 differential counter inputs / 2 quadrature encoder channels |
| Evidence | Spectrum Controls user manual 0300181-09 Rev. A0 (spectrumcontrols.com) |
| Input modes | DC counter, AC flow meter |
| Catalog number | 1746sc-CTR4 |
| Backplane current | 175 mA @ 5 V; 75 mA @ 24 V |
| Maximum count value | -8,388,608 to +8,388,607 (high range) |
| Input voltage ranges | AC 0-30 Vp; 5, 12, 24 V DC |
| Operating temperature | 0 to 60 °C |
| Isolation, channel to rack | 1000 V DC continuous |
| Counter speed / input frequency | 0 Hz to 50 kHz (AC and DC) |
