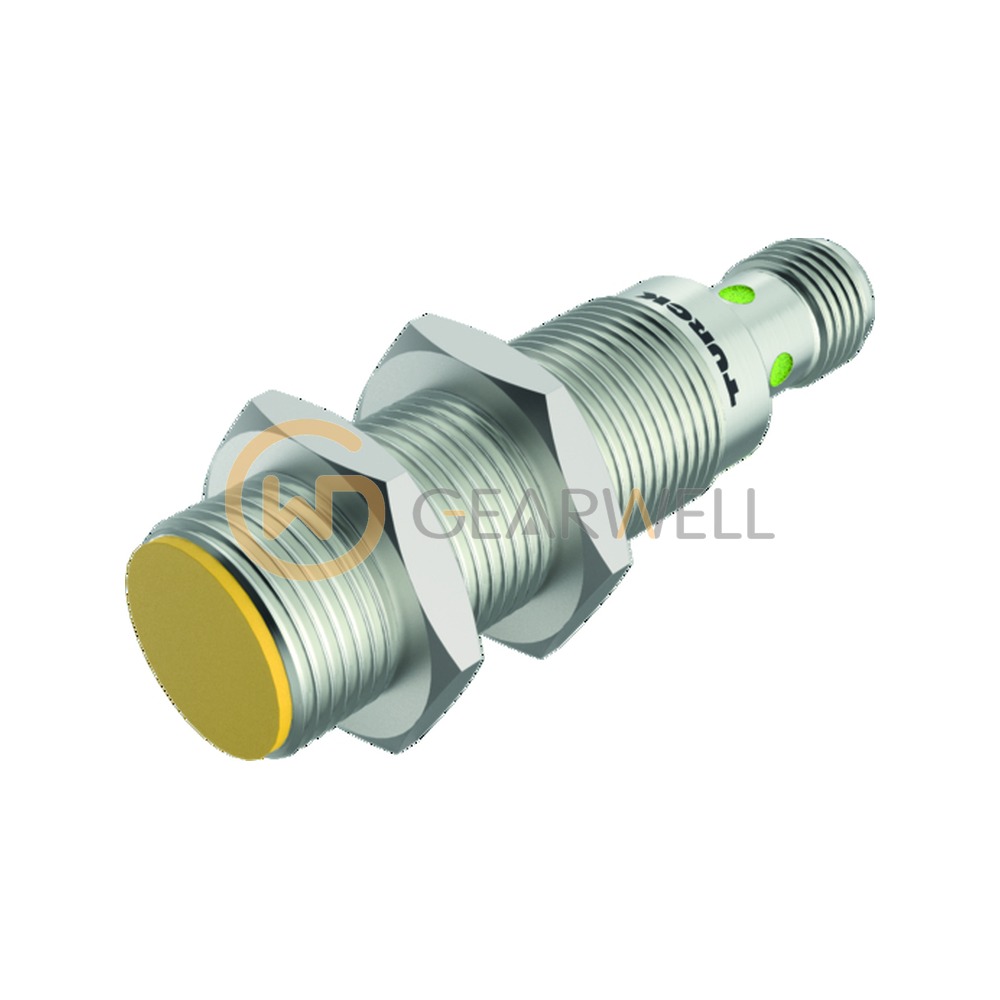

Turck BI8-M18-2APS8X2-H1141 Inductive Safety Sensor
- Brand
- TURCK
- Model
- BI8-M18-2APS8X2-H1141
- GEARWELL SKU
- GWP-000009882
- Category
- Machine Safety & Vision
Key specifications
- Housing
- Threaded barrel M18 x 1, brass
- Safety rating
- SIL 2 (IEC 61508), PL d (ISO 13849-1)
- Output function
- 4-wire, 2 x OSSD, NO contact, PNP
- Protection class
- IP67
- Operating voltage
- 19.2...28.8 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Turck BI8-M18-2APS8X2-H1141 Inductive Safety Sensor |
|---|---|
| Brand | TURCK |
| Model | BI8-M18-2APS8X2-H1141 |
| Category | Machine Safety & Vision |
| Housing | Threaded barrel M18 x 1, brass |
| Safety rating | SIL 2 (IEC 61508), PL d (ISO 13849-1) |
| Output function | 4-wire, 2 x OSSD, NO contact, PNP |
| Protection class | IP67 |
| Operating voltage | 19.2...28.8 VDC |
| Electrical connection | Connector, M12 x 1 |
| Rated switching distance | 8 mm |
| Secured switch-on distance | 6.5 mm |
