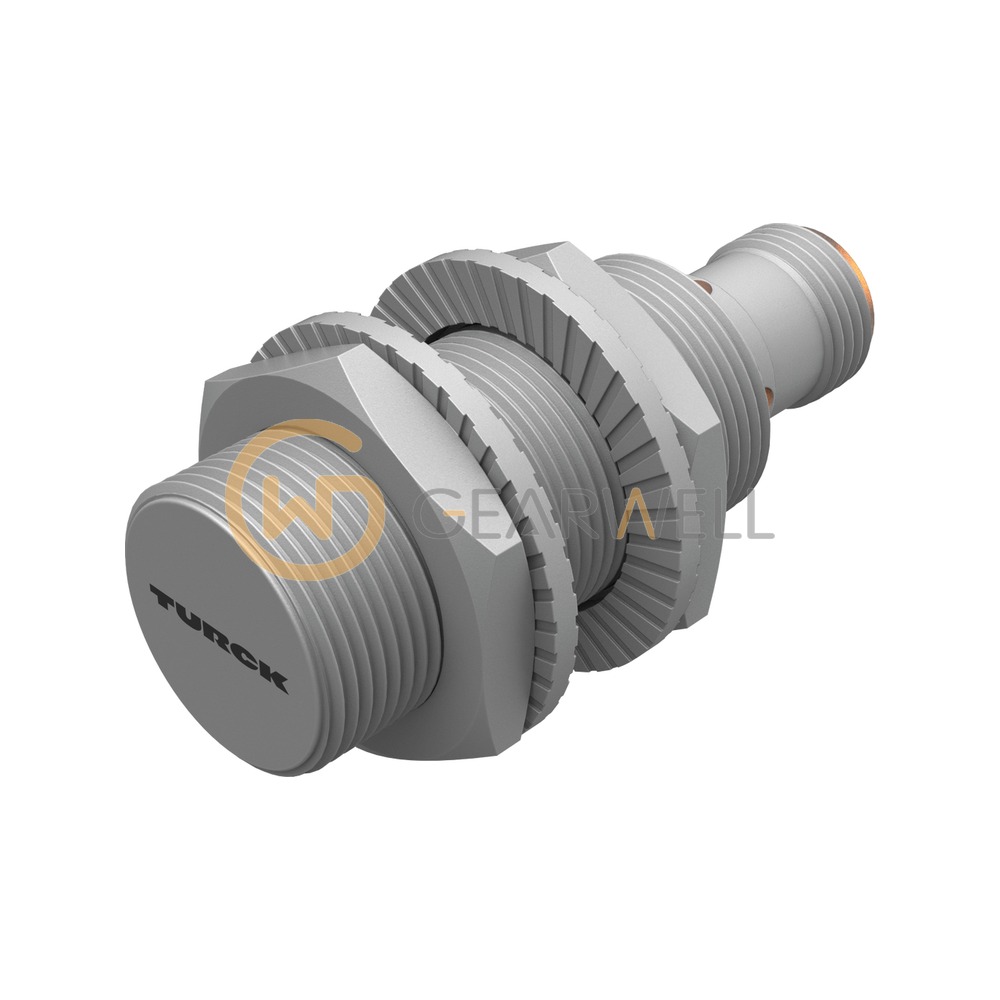

Turck BI5U-MT18-AP6X-H1141 uprox M18 Inductive Proximity Sensor
- Brand
- TURCK
- Model
- BI5U-MT18-AP6X-H1141
- GEARWELL SKU
- GWP-000012138
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Threaded barrel M18 x 1, brass, PTFE-coated
- Ident no.
- 1635240
- Output function
- 3-wire, NO contact, PNP
- Protection class
- IP68
- Operating voltage
- 10...30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Turck BI5U-MT18-AP6X-H1141 uprox M18 Inductive Proximity Sensor |
|---|---|
| Brand | TURCK |
| Model | BI5U-MT18-AP6X-H1141 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Threaded barrel M18 x 1, brass, PTFE-coated |
| Ident no. | 1635240 |
| Output function | 3-wire, NO contact, PNP |
| Protection class | IP68 |
| Operating voltage | 10...30 VDC |
| Ambient temperature | -30...+85 °C |
| Switching frequency | 1.5 kHz |
| Electrical connection | Connector M12 x 1, 4-pin |
| Rated switching distance | 5 mm |
| DC rated operational current | <= 200 mA |
