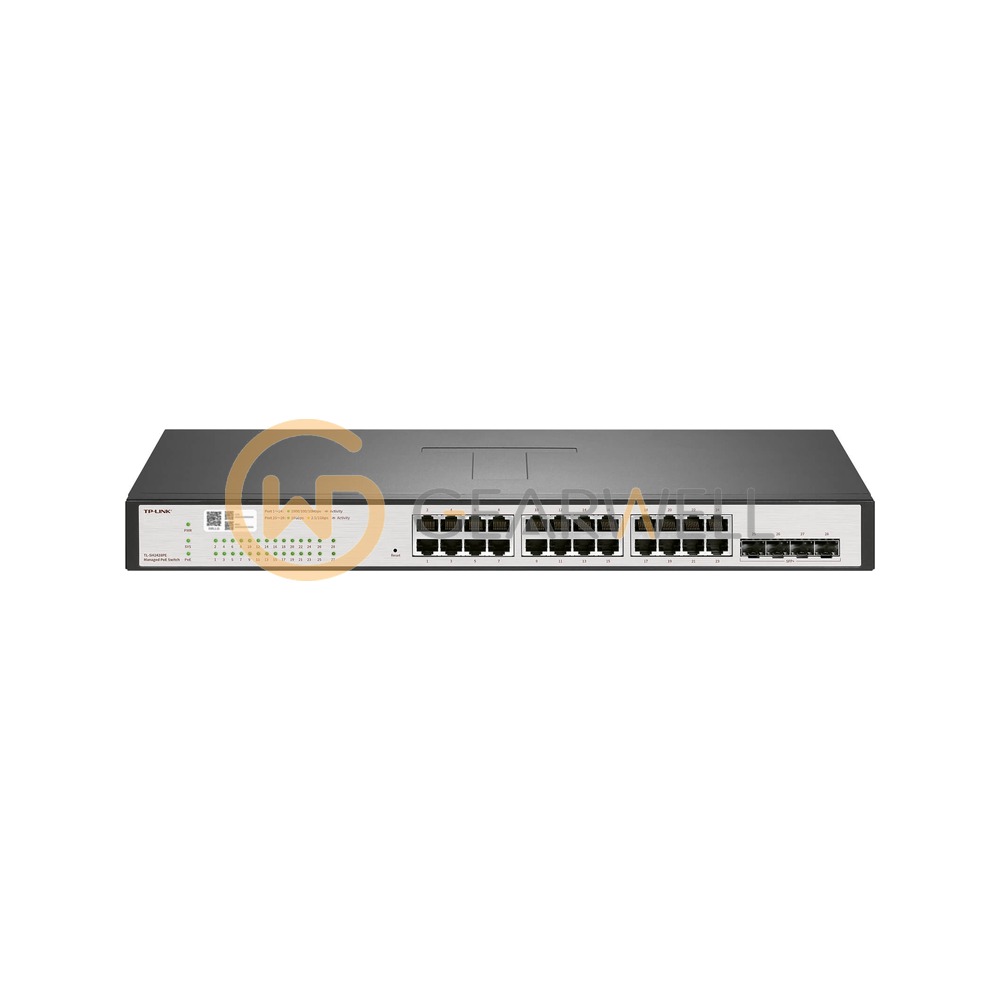

TP-Link TL-SH2428PE 24-Port Gigabit PoE+ Switch, 4x 10G SFP+
- Brand
- TP-Link
- Model
- TL-SH2428PE
- GEARWELL SKU
- GWP-000012146
- Category
- Industrial Communication
Key specifications
- SFP+ ports
- 4 x 1/2.5/10 Gbps
- Dimensions
- 440 x 180 x 44 mm
- RJ45 ports
- 24 x 10/100/1000 Mbps (PoE+)
- Power input
- 220 VAC, 50 Hz, 2.5 A
- PoE standard
- IEEE 802.3af/at
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TP-Link TL-SH2428PE 24-Port Gigabit PoE+ Switch, 4x 10G SFP+ |
|---|---|
| Brand | TP-Link |
| Model | TL-SH2428PE |
| Category | Industrial Communication |
| SFP+ ports | 4 x 1/2.5/10 Gbps |
| Dimensions | 440 x 180 x 44 mm |
| RJ45 ports | 24 x 10/100/1000 Mbps (PoE+) |
| Power input | 220 VAC, 50 Hz, 2.5 A |
| PoE standard | IEEE 802.3af/at |
| Ring protection | ERPS, up to 5 rings, recovery < 50 ms |
| Total PoE power | 365 W |
| Max. PoE per port | 30 W |
| MAC address table | 16K |
| Operating temperature | 0 to 40 °C |
