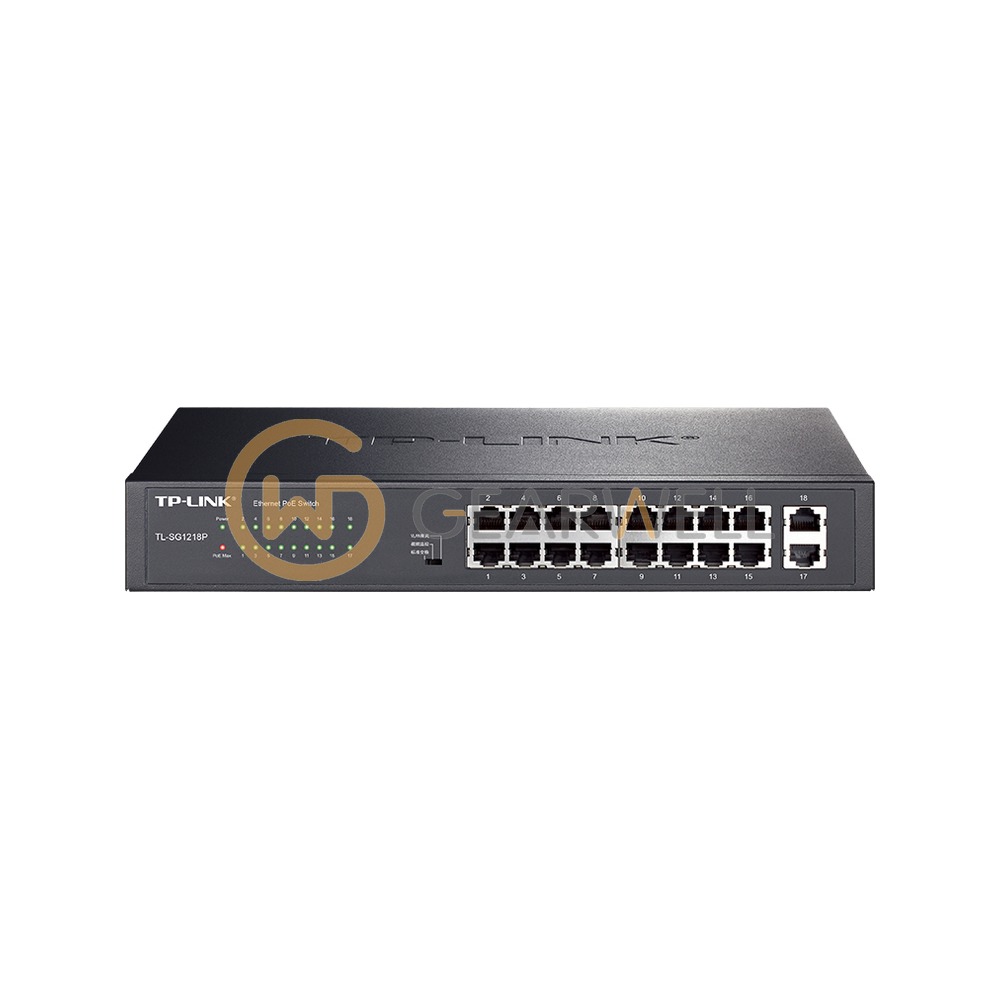

TP-Link TL-SG1218P 18-Port Gigabit PoE+ Switch
- Brand
- TP-Link
- Model
- TL-SG1218P
- GEARWELL SKU
- GWP-000011294
- Category
- Industrial Communication
Key specifications
- PoE ports
- 16 (PoE+)
- RJ45 ports
- 18 x 10/100/1000Base-T
- Power input
- 220 VAC, 50 Hz
- PoE standard
- IEEE 802.3af/at
- Operating modes
- standard switching, video surveillance, VLAN isolation
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TP-Link TL-SG1218P 18-Port Gigabit PoE+ Switch |
|---|---|
| Brand | TP-Link |
| Model | TL-SG1218P |
| Category | Industrial Communication |
| PoE ports | 16 (PoE+) |
| RJ45 ports | 18 x 10/100/1000Base-T |
| Power input | 220 VAC, 50 Hz |
| PoE standard | IEEE 802.3af/at |
| Operating modes | standard switching, video surveillance, VLAN isolation |
| Total PoE power | 180 W |
| Max. PoE per port | 30 W |
| MAC address table | 8K |
| Housing dimensions | 294 x 180 x 44 mm |
| Operating temperature | 0 to 40 °C |
