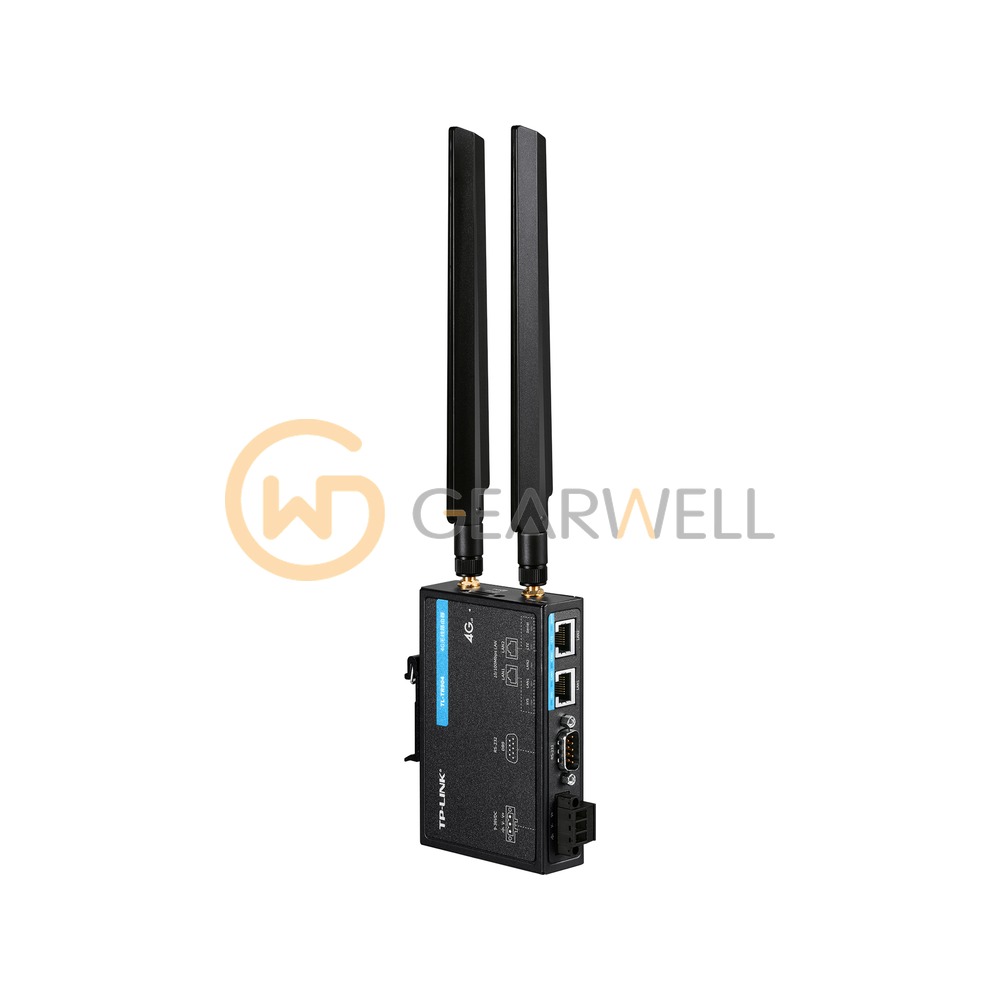

TP-Link TL-TR904 Industrial 4G LTE Router, Dual SIM, Wi-Fi
- Brand
- TP-Link
- Model
- TL-TR904
- GEARWELL SKU
- GWP-000012148
- Category
- Industrial Communication
Key specifications
- Wi-Fi
- 2.4 GHz, 300 Mbps
- Cellular
- LTE Cat4 (LTE-FDD/TDD, WCDMA), region China
- LAN ports
- 2 x 10/100 Mbps
- SIM slots
- 2 x nano-SIM, dual standby
- Dimensions
- 116 x 76 x 26 (without antennas) mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TP-Link TL-TR904 Industrial 4G LTE Router, Dual SIM, Wi-Fi |
|---|---|
| Brand | TP-Link |
| Model | TL-TR904 |
| Category | Industrial Communication |
| Wi-Fi | 2.4 GHz, 300 Mbps |
| Cellular | LTE Cat4 (LTE-FDD/TDD, WCDMA), region China |
| LAN ports | 2 x 10/100 Mbps |
| SIM slots | 2 x nano-SIM, dual standby |
| Dimensions | 116 x 76 x 26 (without antennas) mm |
| Power input | 9 to 36 VDC terminal |
| Serial port | 1 x RS-232 DB9 (TCP Server/Client, UDP) |
| LTE-FDD data rate | UL 51.02 / DL 75 Mbps |
| Max. power consumption | 5.7 W |
| Operating temperature | -40 to 70 °C |
