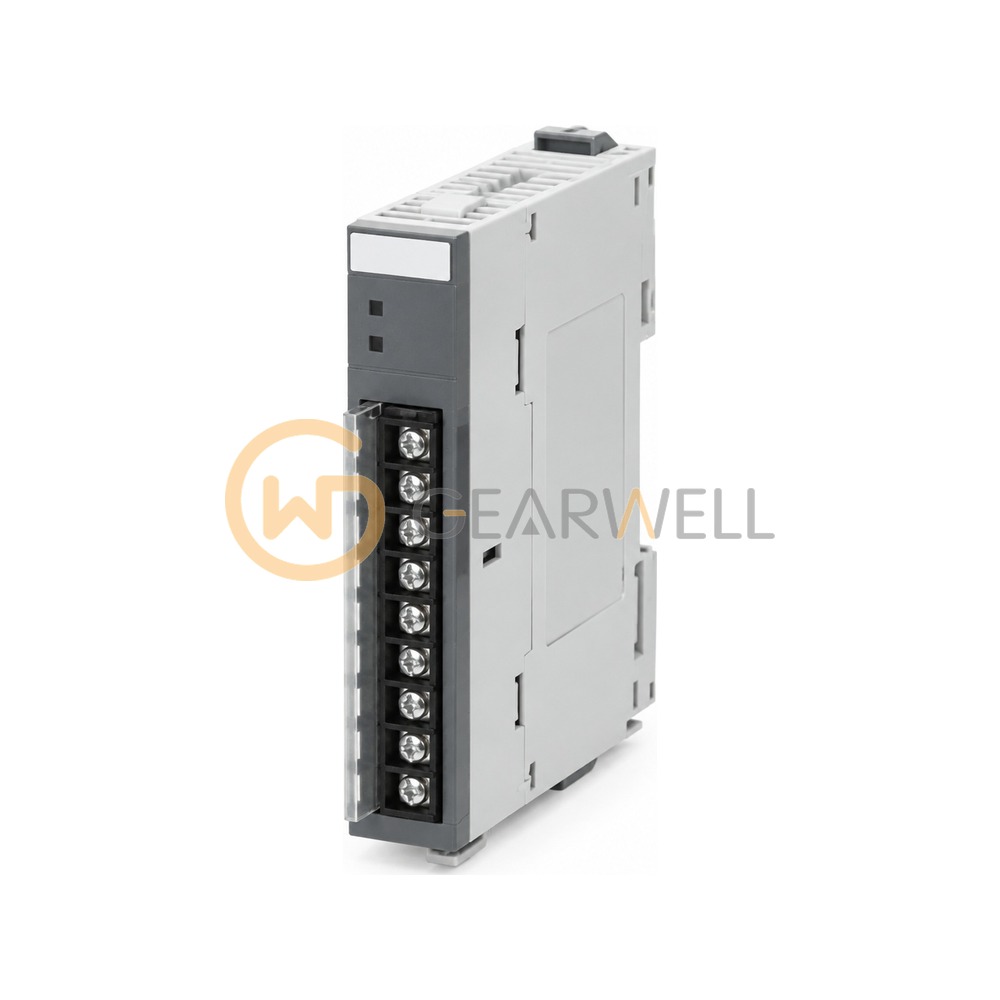

YOKOGAWA F3XD16-3F FA-M3 DC Input Module
- Brand
- YOKOGAWA
- Model
- F3XD16-3F
- GEARWELL SKU
- GWP-000035354
- Category
- PLCs & I/O
Key specifications
- Style
- S1 (as collected; the GS model table shows the style code column without values)
- Isolation
- Photocoupler isolation
- Number of inputs
- 16
- Code as collected
- F3XD16-3FS1
- Current consumption
- 65 mA (5 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA F3XD16-3F FA-M3 DC Input Module |
|---|---|
| Brand | YOKOGAWA |
| Model | F3XD16-3F |
| Category | PLCs & I/O |
| Style | S1 (as collected; the GS model table shows the style code column without values) |
| Isolation | Photocoupler isolation |
| Number of inputs | 16 |
| Code as collected | F3XD16-3FS1 |
| Current consumption | 65 mA (5 V DC) |
| External connection | 18-point terminal block, M3.5 screw |
| Rated input current | 4.1 mA/point |
| Rated input voltage | 24 V DC (sink/source) |
