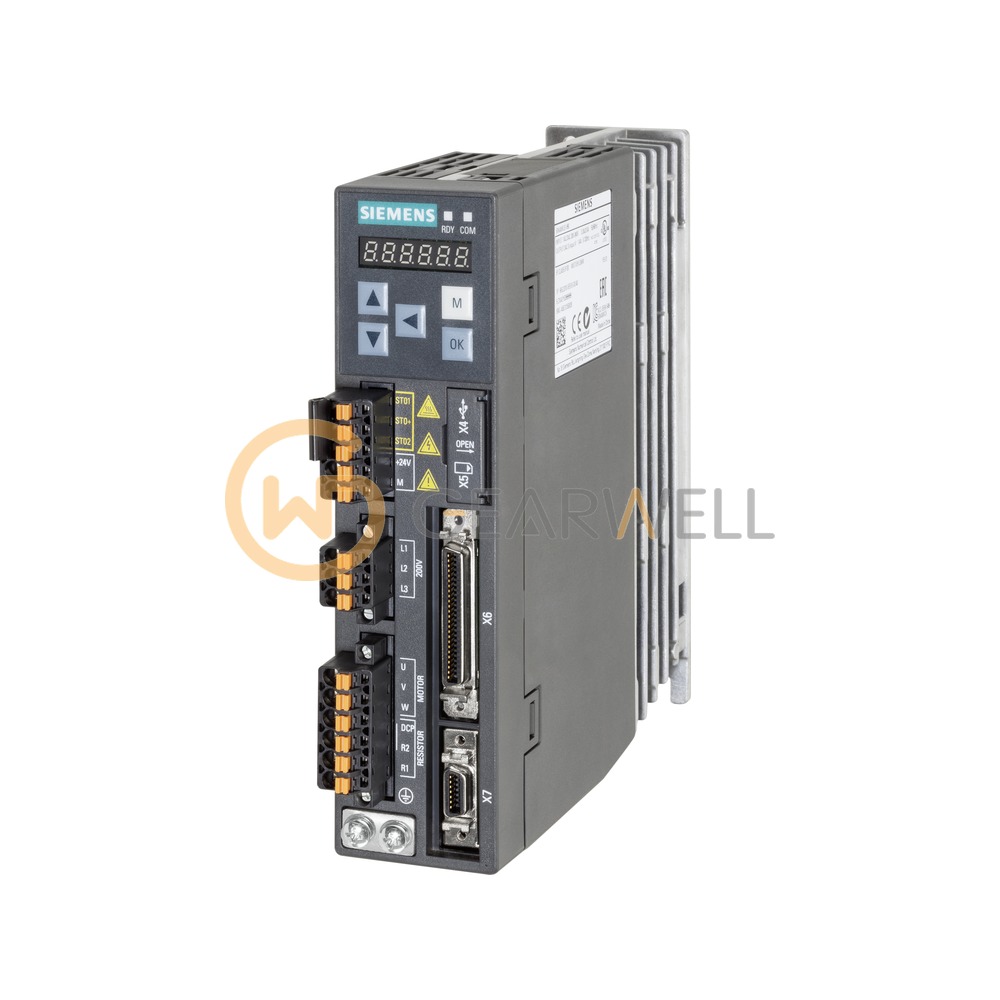

Siemens 6SL3210-5FB10-1UA2 SINAMICS V90 Servo Drive
- Brand
- Siemens
- Model
- 6SL3210-5FB10-1UA2
- GEARWELL SKU
- GWP-000010986
- Category
- Servo Systems
Key specifications
- Frame size
- A
- Motor power
- 0.1 kW
- Input current
- 2.5/1.5 A
- Input voltage
- 200-240 V 1/3 AC
- Output current
- 1.2 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5FB10-1UA2 is a SINAMICS V90 servo drive for a 200…240 V single- or three-phase supply and motors up to 0.1 kW. It delivers a rated output current of 1.2 A and a maximum of 3.6 A, in frame size FSA with natural cooling, measuring 45 x 170 x 170 mm (W x H x D) and weighing about 1.07 kg. It is the pulse train (PTI) version, with two pulse train input channels (one 5 V differential, one 24 V single-ended), a 5 V differential A/B/Z encoder output, 10 digital inputs (NPN/PNP) and 6 digital outputs (NPN), two ±10 V analog outputs and USS/Modbus RTU over RS485. It also has a mini USB port, a micro SD card slot and Safe Torque Off (STO) via terminal to SIL 2.
Technical reference
| Product name | Siemens 6SL3210-5FB10-1UA2 SINAMICS V90 Servo Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5FB10-1UA2 |
| Category | Servo Systems |
| Frame size | A |
| Motor power | 0.1 kW |
| Input current | 2.5/1.5 A |
| Input voltage | 200-240 V 1/3 AC |
| Output current | 1.2 A |
| Degree of protection | IP20 |
