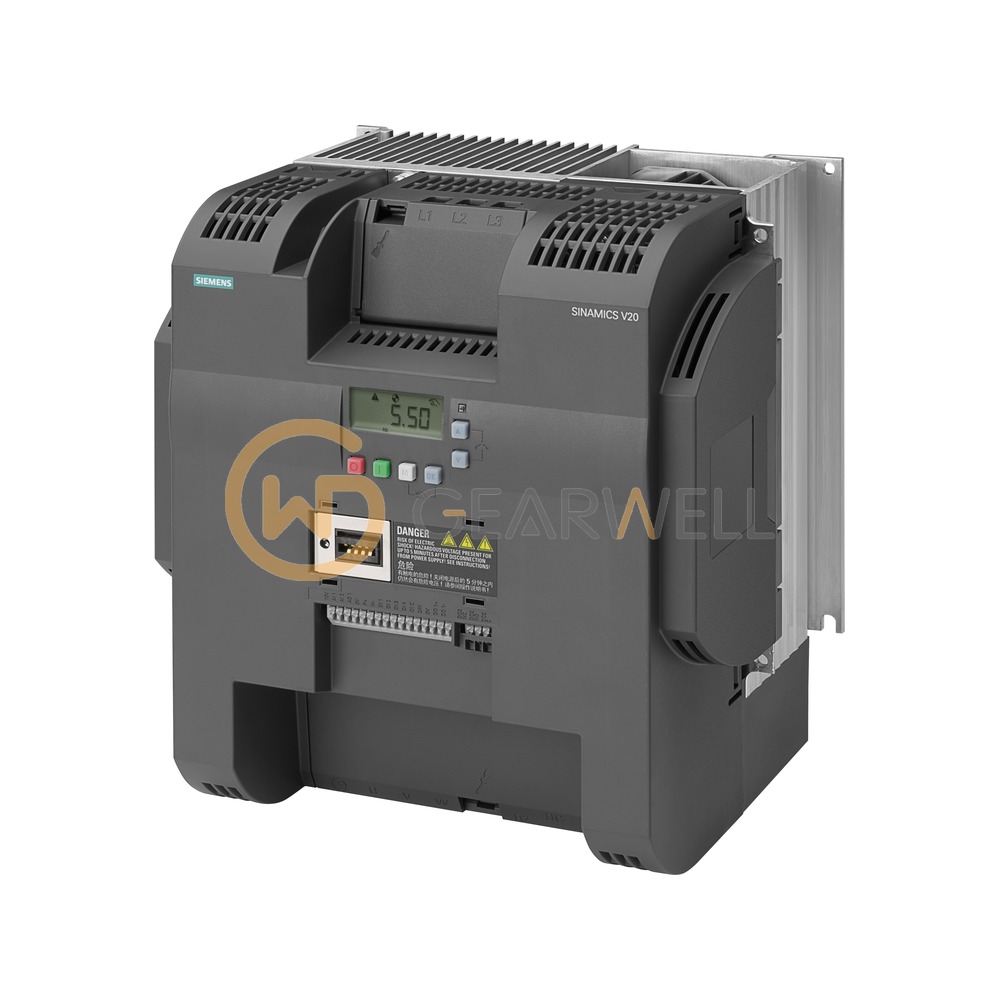

Siemens 6SL3210-5BE31-8UV0 SINAMICS V20 Basic Converter
- Brand
- Siemens
- Model
- 6SL3210-5BE31-8UV0
- GEARWELL SKU
- GWP-000010388
- Category
- Variable Frequency Drives
Key specifications
- I/O
- 4 DI, 2 DO, 2 AI, 1 AO
- Fieldbus
- USS/Modbus RTU
- Frame size
- FSE
- Line filter
- Unfiltered
- Rated power
- 18.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BE31-8UV0 is a SINAMICS V20 basic converter for a 380…480 V three-phase supply, rated 22 kW (30 hp) on the low-overload current IL of 45 A at 400 V and 40 A at 480 V (110 % for 60 s within 300 s), or 18.5 kW (25 hp) on the high-overload current IH, with a rated input current of 54/45 A. It is frame size FSE, has two cooling fans and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BE31-8UV0 SINAMICS V20 Basic Converter |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BE31-8UV0 |
| Category | Variable Frequency Drives |
| I/O | 4 DI, 2 DO, 2 AI, 1 AO |
| Fieldbus | USS/Modbus RTU |
| Frame size | FSE |
| Line filter | Unfiltered |
| Rated power | 18.5 kW |
| Input voltage | 3 AC 380-480 V, 47-63 Hz |
| Degree of protection | IP20 |
