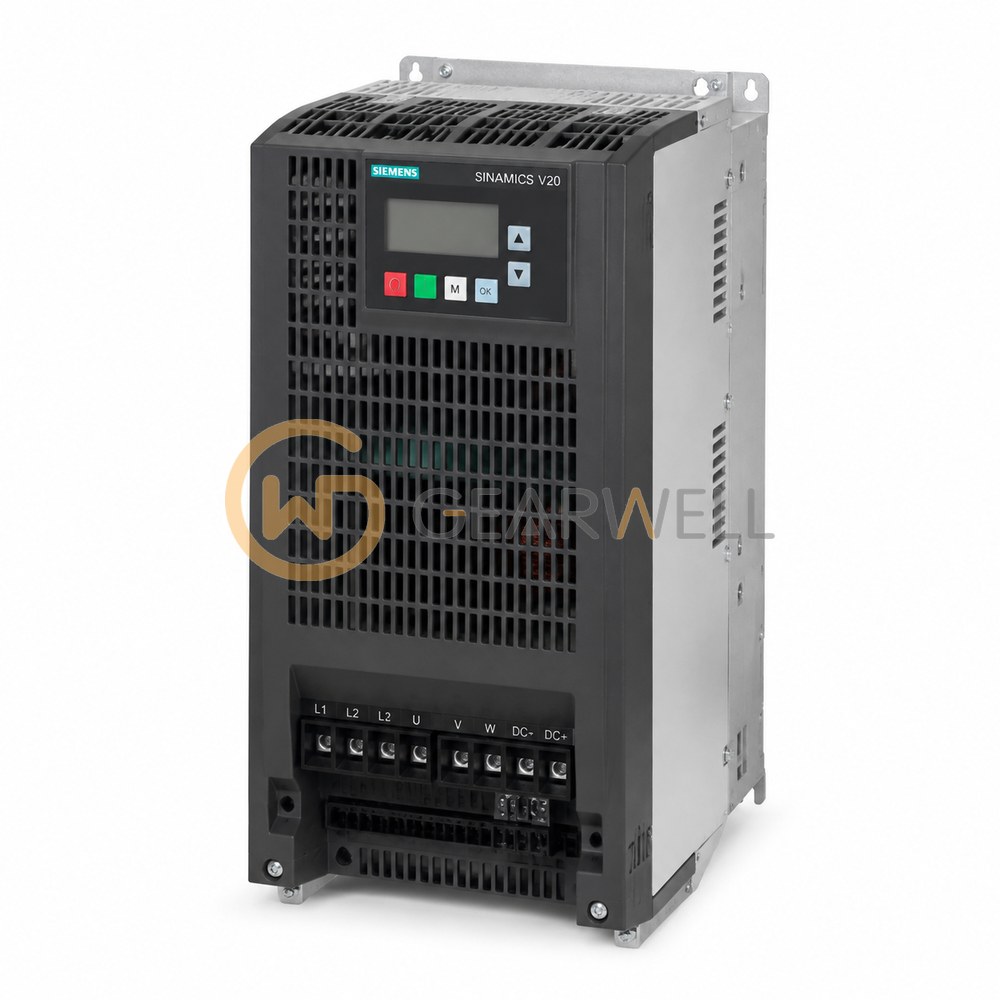

Siemens 6SL3210-5BE32-2UV0 Industry Inverter
- Brand
- Siemens
- Model
- 6SL3210-5BE32-2UV0
- GEARWELL SKU
- GWP-000000131
- Category
- Industrial Automation Parts
Key specifications
- Frame size
- FSE
- Degree of protection
- IP20 / UL open type
- Product type
- SINAMICS V20 variable frequency drive
- Input line voltage
- 380 to 480 V AC (-15% / +10%)
- Line frequency
- 47 to 63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BE32-2UV0 is a SINAMICS V20 basic converter for a 380…480 V three-phase supply, rated 30 kW (40 hp) on the low-overload current IL of 60 A at 400 V and 52 A at 480 V (110 % for 60 s within 300 s), or 22 kW (30 hp) on the high-overload current IH, with a rated input current of 72/54 A. It is frame size FSE, has two cooling fans and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BE32-2UV0 Industry Inverter |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BE32-2UV0 |
| Category | Industrial Automation Parts |
| Frame size | FSE |
| Degree of protection | IP20 / UL open type |
| Product type | SINAMICS V20 variable frequency drive |
| Input line voltage | 380 to 480 V AC (-15% / +10%) |
| Line frequency | 47 to 63 Hz |
| Rated power (high overload) | 22 kW / 30 hp |
| Rated power (low overload) | 30 kW / 40 hp |
| Operating temperature | -10 to 60 deg C |
