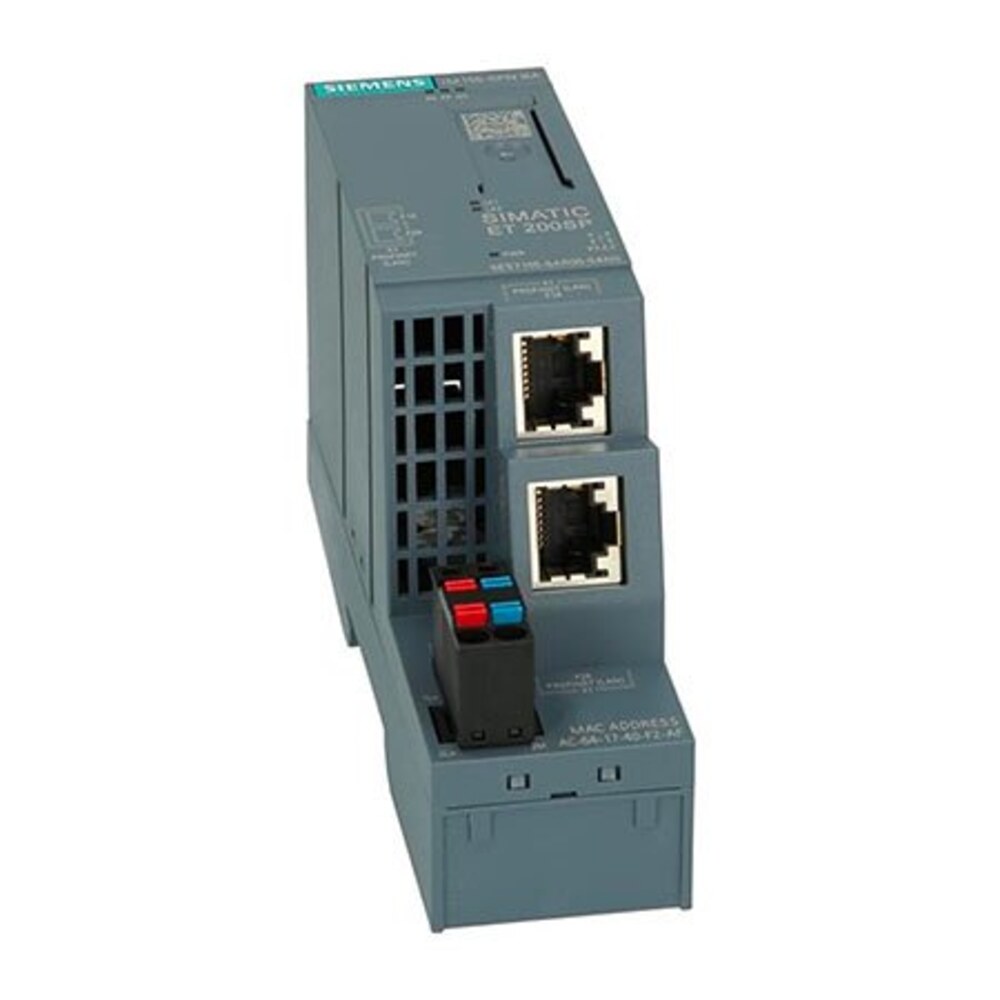

Siemens 6ES7155-6AR00-0AN0 ET 200SP IM 155-6 PN BA PROFINET Interface Module
- Brand
- Siemens
- Model
- 6ES7155-6AR00-0AN0
- GEARWELL SKU
- GWP-000004207
- Category
- Industrial Automation Parts
Key specifications
- Power loss, typ.
- 1.8 W
- Supply voltage
- 24 V DC nominal; permitted range 19.2–28.8 V DC.
- Station module capacity
- Up to 12 ET 200SP modules; no ET 200AL extension.
- Number of ports
- 2; integrated RJ45 ports
- Dimensions — Depth
- 74 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7155-6AR00-0AN0 ET 200SP IM 155-6 PN BA PROFINET Interface Module |
|---|---|
| Brand | Siemens |
| Model | 6ES7155-6AR00-0AN0 |
| Category | Industrial Automation Parts |
| Power loss, typ. | 1.8 W |
| Supply voltage | 24 V DC nominal; permitted range 19.2–28.8 V DC. |
| Station module capacity | Up to 12 ET 200SP modules; no ET 200AL extension. |
| Number of ports | 2; integrated RJ45 ports |
| Dimensions — Depth | 74 mm |
| Station I/O address space | Up to 32 bytes for input data and 32 bytes for output data per station. |
| PROFINET interface | PROFINET at 100 Mbit/s full duplex; two integrated RJ45 ports, no BusAdapter. |
| Product type and application | IM 155-6 PN Basic PROFINET interface for ET 200SP distributed I/O. |
| Weights — Weight, approx. | 125 g |
| Communication and module exchange | Single hot swapping and MRP client; no Shared Device and no PROFIsafe. Follow the equipment manual. |
| Product type designation | IM 155-6 PN BA |
| Input current — Current consumption, max. | 300 mA |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
