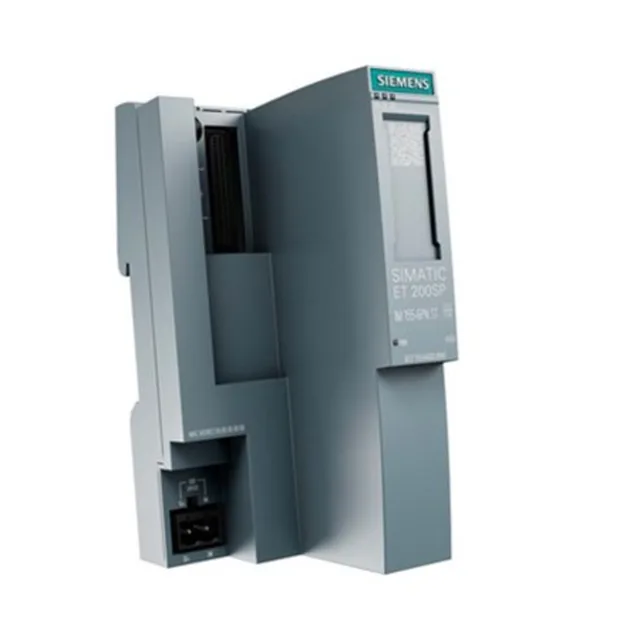

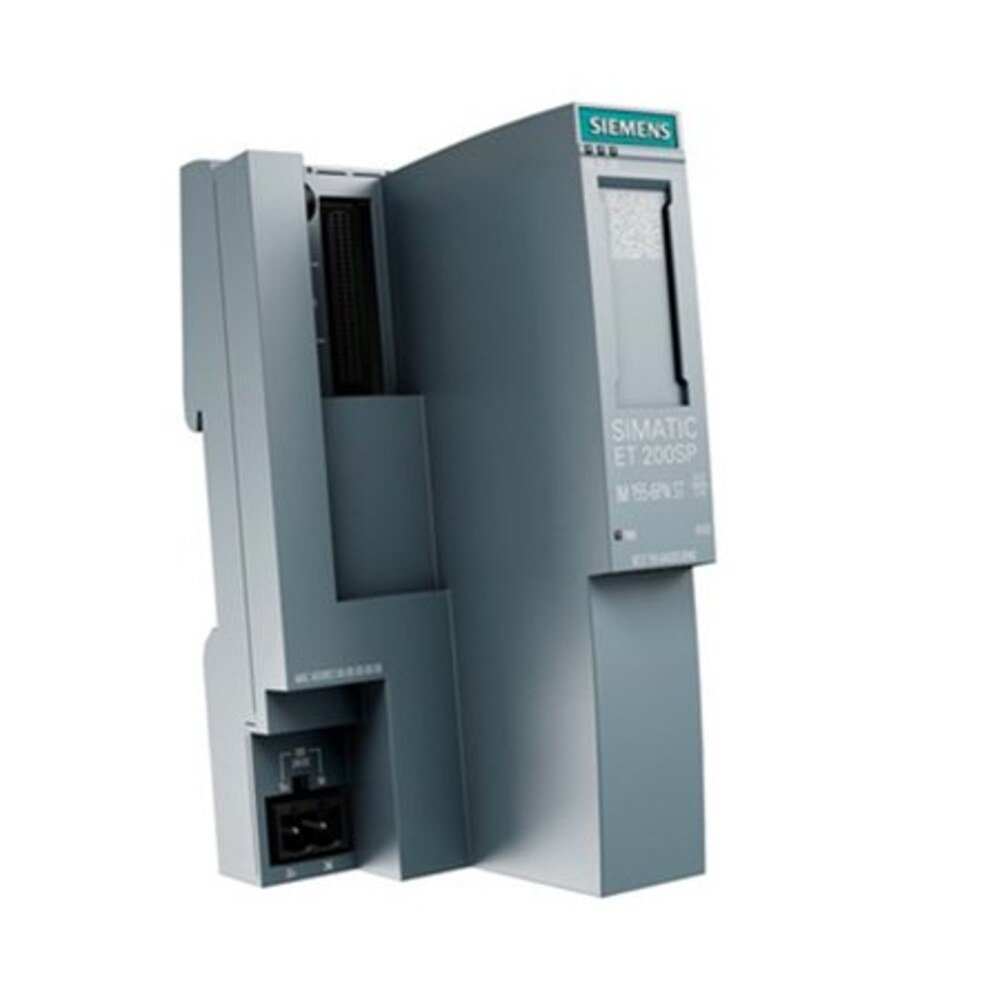

Siemens 6ES7155-6AU01-0BN0 ET 200SP IM 155-6 PN ST PROFINET Interface Module

Key specifications

Power loss, typ.: 1.9 W
Supply voltage: 24 V DC nominal; permitted range 19.2–28.8 V DC.
Station module capacity: Up to 32 ET 200SP modules and 16 ET 200AL modules using BU/BA Send for the ET-Connection extension.
Dimensions — Depth: 74 mm
I/O address space per module: Up to 256 bytes for input data and 256 bytes for output data per module.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7155-6AU01-0BN0 ET 200SP IM 155-6 PN ST PROFINET Interface Module
Brand	Siemens
Model	6ES7155-6AU01-0BN0
Category	Industrial Automation Parts
Power loss, typ.	1.9 W
Supply voltage	24 V DC nominal; permitted range 19.2–28.8 V DC.
Station module capacity	Up to 32 ET 200SP modules and 16 ET 200AL modules using BU/BA Send for the ET-Connection extension.
Dimensions — Depth	74 mm
I/O address space per module	Up to 256 bytes for input data and 256 bytes for output data per module.
PROFINET interface	PROFINET at 100 Mbit/s full duplex, with two network ports through a compatible BusAdapter.
Supported PROFINET BusAdapters	BA 2x RJ45, BA 2x FC or BA 2x M12; selected separately.
Product type and application	IM 155-6 PN Standard PROFINET interface for ET 200SP distributed I/O.
Weights — Weight, approx.	147 g; without BusAdapter
Communication and module exchange	Single hot swapping; MRP client; Shared Device with up to 2 IO controllers. Follow the equipment manual.
Product type designation	IM 155-6 PN ST
Input current — Current consumption (rated value)	450 mA
Ambient temperature during operation — horizontal installation, max.	60 °C
