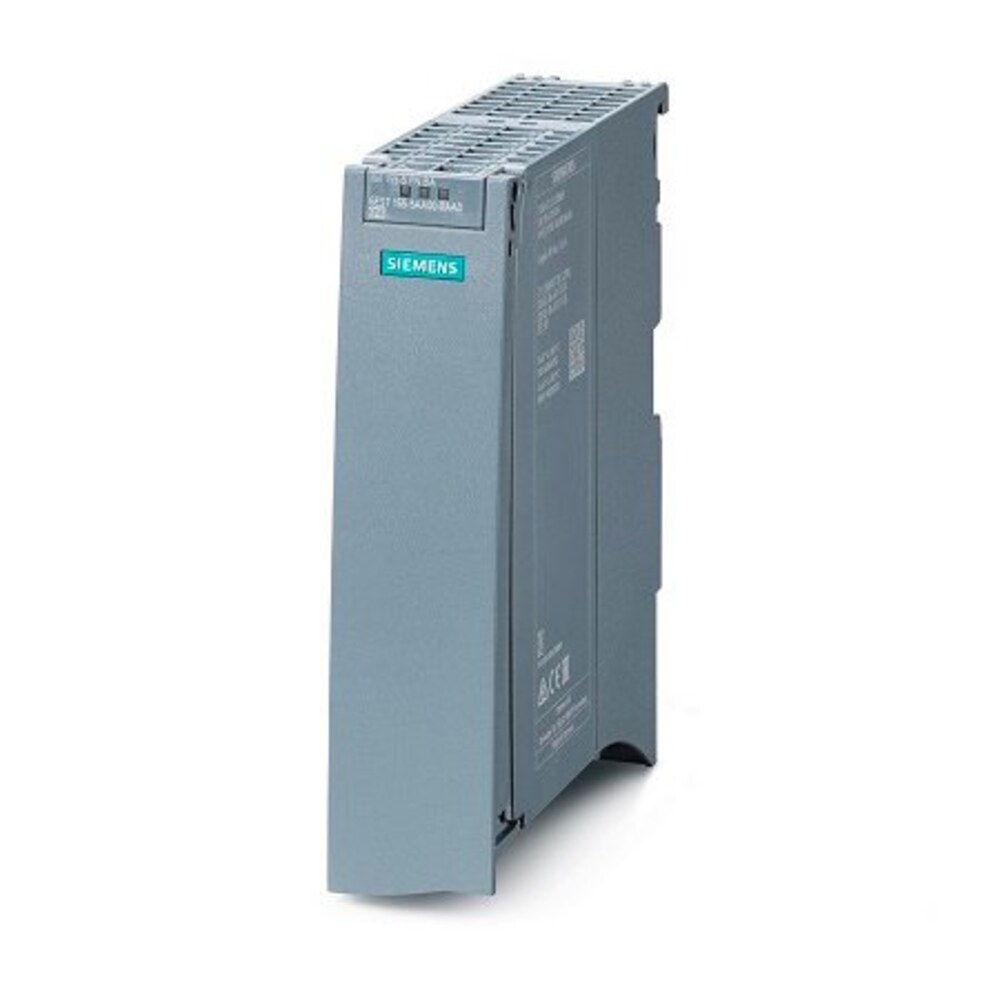

Siemens 6ES7155-5AA00-0AA0 ET 200MP IM 155-5 PN BA PROFINET Interface Module

Key specifications

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7155-5AA00-0AA0 ET 200MP IM 155-5 PN BA PROFINET Interface Module
Brand	Siemens
Model	6ES7155-5AA00-0AA0
Category	Industrial Automation Parts
Power loss, typ.	3 W
Supply voltage	24 V DC nominal; permitted range 19.2–28.8 V DC.
Station module capacity	Up to 12 I/O modules per ET 200MP station.
Number of ports	2
Dimensions — Depth	129 mm
Station I/O address space	Up to 64 bytes for input data and 64 bytes for output data per station.
PROFINET interface	PROFINET, 100 Mbit/s full duplex; two RJ45 ports with an integrated switch.
Product type and application	IM 155-5 PN BA PROFINET interface for ET 200MP stations with up to 12 I/O modules.
Weights — Weight, approx.	236 g
Communication and module exchange	MRP client; Shared Device with up to 2 IO controllers; no hot swapping.
Product type designation	IM 155-5 PN BA
Input current — Current consumption (rated value)	1 A; at 24 V DC and without load
Ambient temperature during operation — horizontal installation, max.	60 °C
