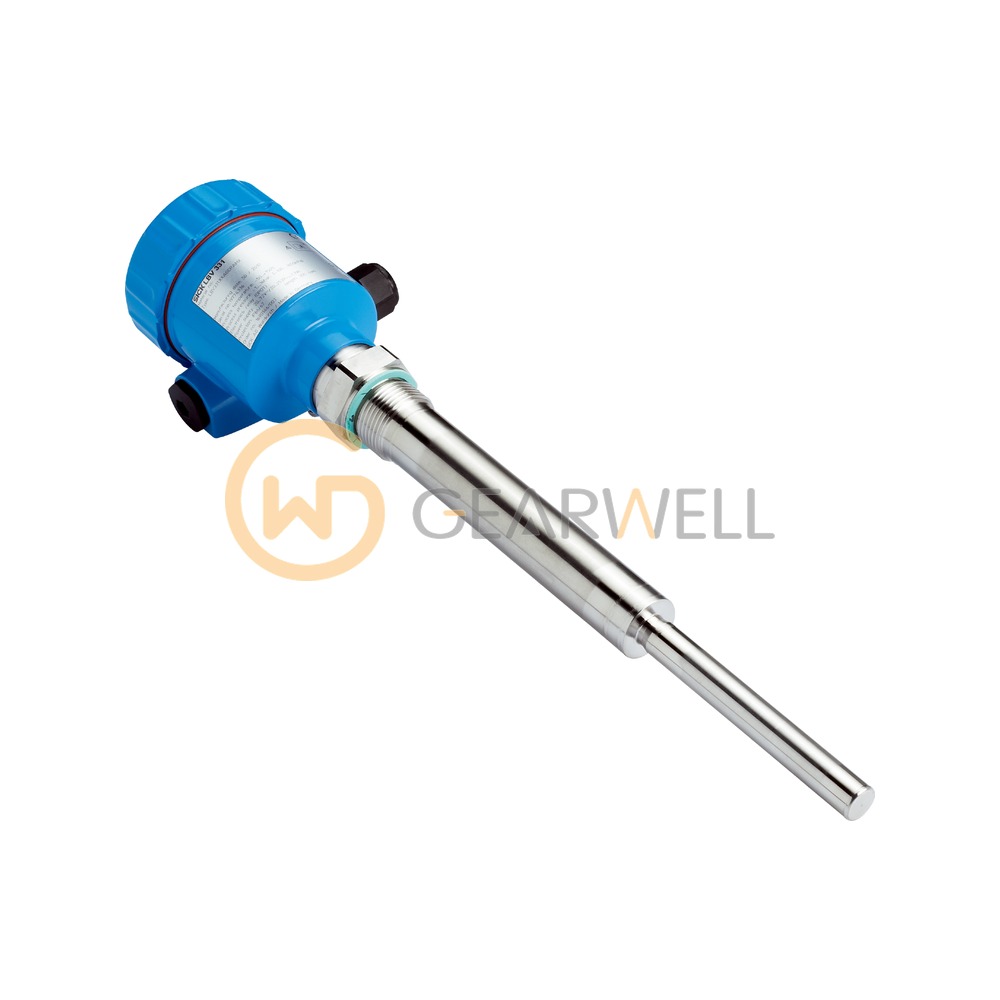

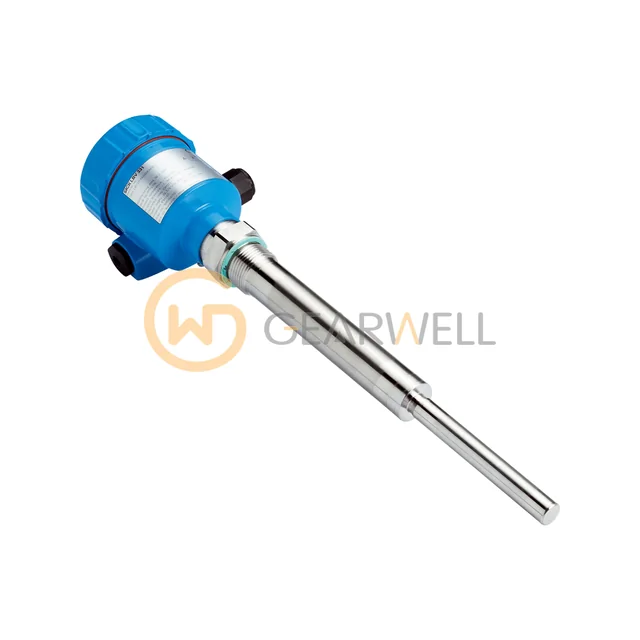

SICK 6053818 LBV331-XXAGCTAMX0350 Vibrating Level Switch
- Brand
- SICK
- Model
- 6053818
- GEARWELL SKU
- GWP-000013861
- Category
- Pressure, Flow & Temperature
Key specifications
- Length
- 350 mm
- Output
- Transistor output (NPN/PNP)
- Version
- Standard, tube extension
- Article number
- 6053818
- Supply voltage
- 10 ... 55 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6053818 LBV331-XXAGCTAMX0350 Vibrating Level Switch |
|---|---|
| Brand | SICK |
| Model | 6053818 |
| Category | Pressure, Flow & Temperature |
| Length | 350 mm |
| Output | Transistor output (NPN/PNP) |
| Version | Standard, tube extension |
| Article number | 6053818 |
| Supply voltage | 10 ... 55 V DC |
| Wetted material | 316L |
| Type designation | LBV331-XXAGCTAMX0350 |
| Process connection | Thread G 1 (DIN 3852-A), PN16 |
| Process temperature | -50 ... +150 °C |
| Housing material / enclosure | Aluminium; IP66, IP67 (IP68, 0.2 bar); cable entry M20x1.5 |
