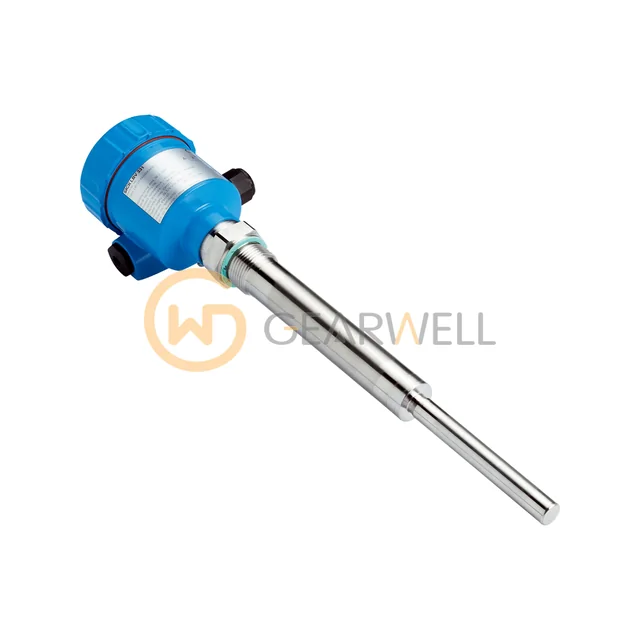

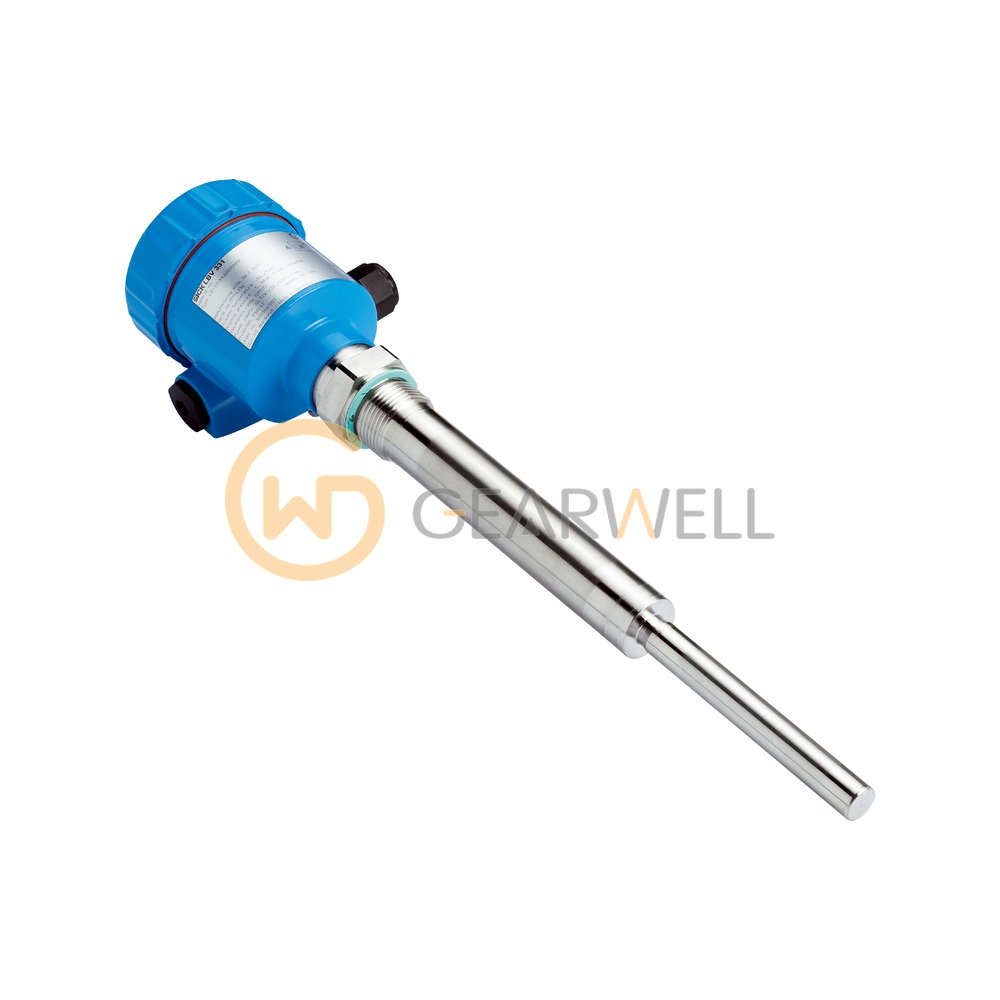

SICK 6054870 LBV331-XXAGRR8MX0700 Vibrating Level Switch
- Brand
- SICK
- Model
- 6054870
- GEARWELL SKU
- GWP-000013863
- Category
- Pressure, Flow & Temperature
Key specifications
- Length
- 700 mm
- Output
- Relay (DPDT)
- Version
- Standard, tube extension
- Article number
- 6054870
- Supply voltage
- 20 ... 72 V DC / 20 ... 253 V AC (3 A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6054870 LBV331-XXAGRR8MX0700 Vibrating Level Switch |
|---|---|
| Brand | SICK |
| Model | 6054870 |
| Category | Pressure, Flow & Temperature |
| Length | 700 mm |
| Output | Relay (DPDT) |
| Version | Standard, tube extension |
| Article number | 6054870 |
| Supply voltage | 20 ... 72 V DC / 20 ... 253 V AC (3 A) |
| Wetted material | 316L, Ra < 0.8 µm |
| Type designation | LBV331-XXAGRR8MX0700 |
| Process connection | Thread G 1 (DIN 3852-A), PN16 |
| Process temperature | -50 ... +150 °C |
| Housing material / enclosure | Stainless steel 316L (electropolished); IP66, IP67 (IP68, 0.2 bar); cable entry M20x1.5 |
