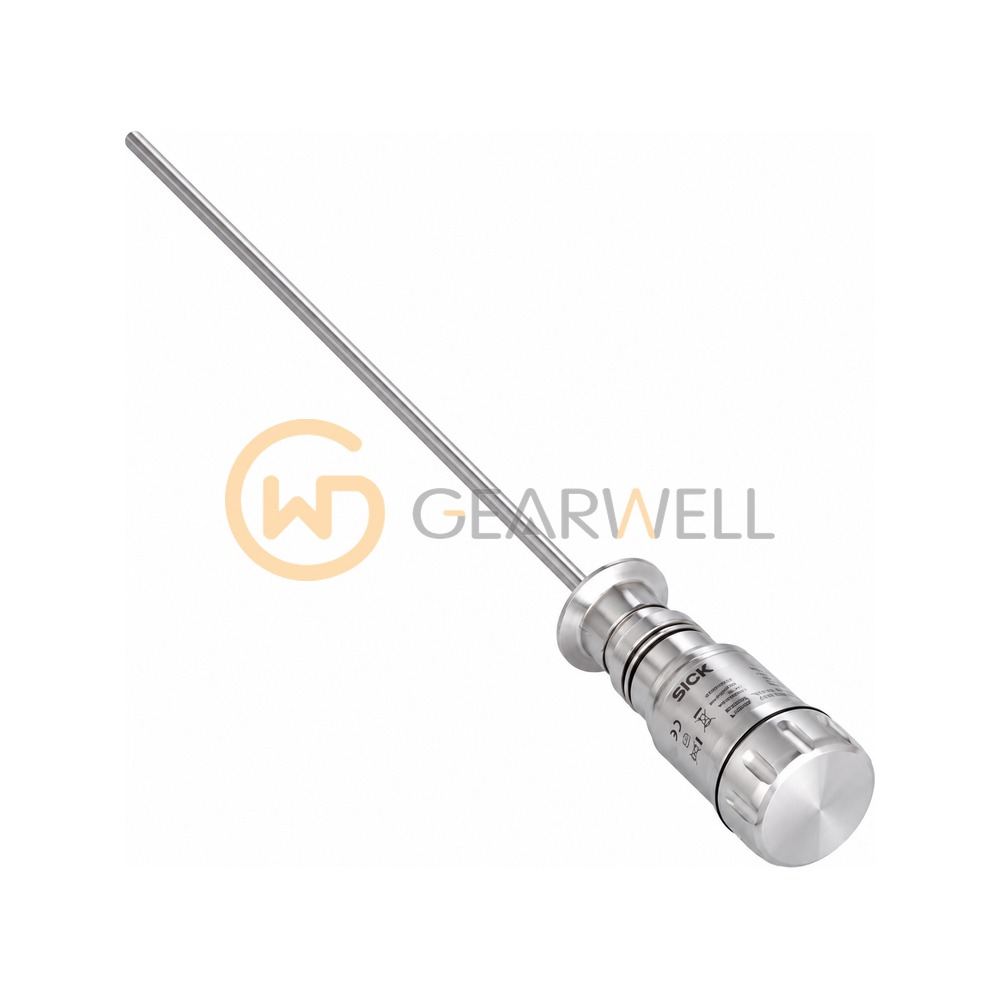

SICK 1070524 LFP3500-N1NMB LFP Inox TDR Level Sensor
- Brand
- SICK
- Model
- 1070524
- GEARWELL SKU
- GWP-000015178
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Hygienic probe, 1.4404/316L
- Housing
- Stainless steel with display, cover with window
- Connection
- M12 x 1, 5-pin
- Probe length
- 3500 mm
- Analog output
- 4-20 mA / 0-10 V switchable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1070524 LFP3500-N1NMB LFP Inox TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1070524 |
| Category | Pressure, Flow & Temperature |
| Probe | Hygienic probe, 1.4404/316L |
| Housing | Stainless steel with display, cover with window |
| Connection | M12 x 1, 5-pin |
| Probe length | 3500 mm |
| Analog output | 4-20 mA / 0-10 V switchable |
| Article number | 1070524 |
| Type designation | LFP3500-N1NMB |
| Switching outputs | Q1 PNP; Q2 PNP/NPN switchable |
| Process connection | 3/4" NPT |
