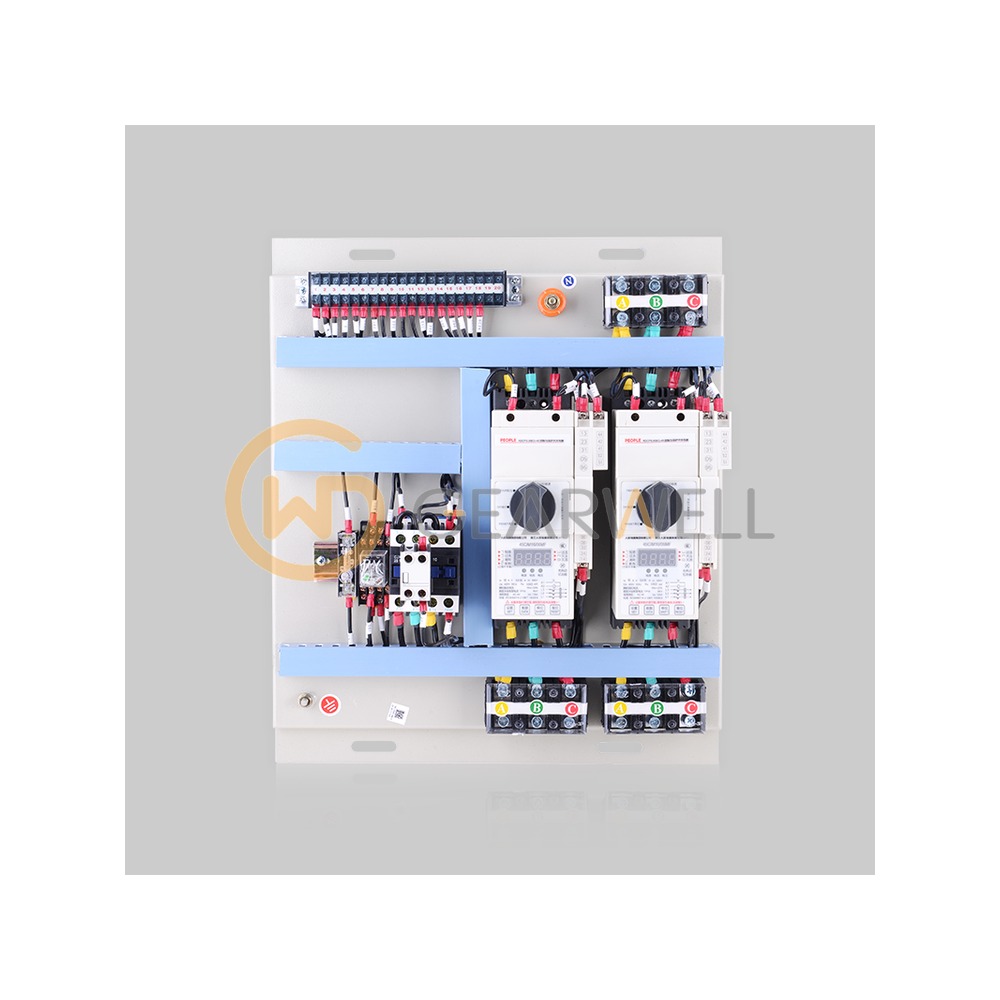

People Electric RDCPS(KBO)D-45C/M32/M12/06MG Two-Speed Controller
- Brand
- People Electric
- Model
- RDCPS(KBO)D-45C/M32/M12/06MG
- GEARWELL SKU
- GWP-000013737
- Category
- Contactors & Starters
Key specifications
- Type name
- RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45)
- Derived code
- G (isolation)
- Frame "45" (RDCPSD)
- as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125
- Material number
- 101002012010340
- Frame (shell) current
- 45 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric RDCPS(KBO)D-45C/M32/M12/06MG Two-Speed Controller |
|---|---|
| Brand | People Electric |
| Model | RDCPS(KBO)D-45C/M32/M12/06MG |
| Category | Contactors & Starters |
| Type name | RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45) |
| Derived code | G (isolation) |
| Frame "45" (RDCPSD) | as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125 |
| Material number | 101002012010340 |
| Frame (shell) current | 45 A |
| Auxiliary contact code | 06 (3 NO + 3 NC + 1 short-circuit + 1 fault signal contact) |
| Control supply voltage | AC 220 (code M) V |
| Low-speed rated current Ie | 12 A |
| High-speed rated current Ie | 32 A |
| Rated service short-circuit breaking capacity Ics (code C) | 12 kA |
