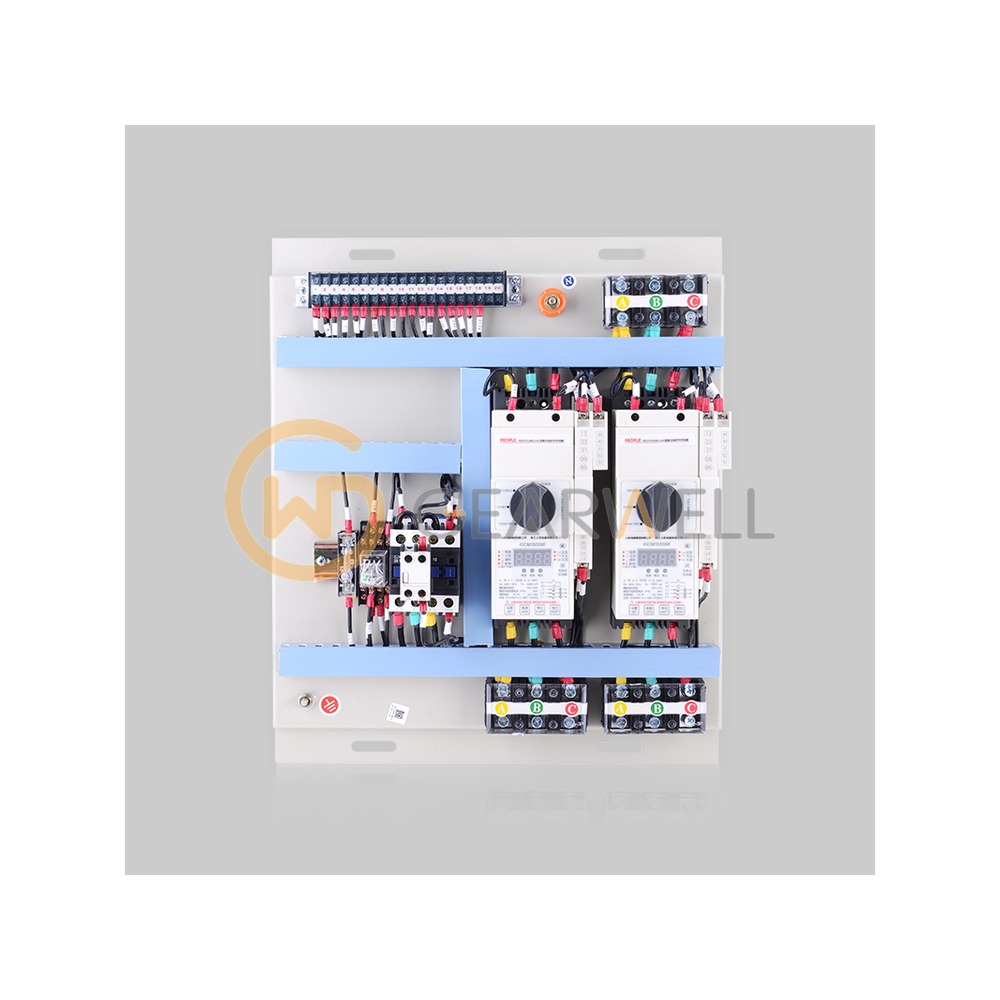

People Electric RDCPS(KBO)D-125C/M63/M55/06MF Two-Speed Controller
- Brand
- People Electric
- Model
- RDCPS(KBO)D-125C/M63/M55/06MF
- GEARWELL SKU
- GWP-000013732
- Category
- Contactors & Starters
Key specifications
- Type name
- RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45)
- Derived code
- F (fire-fighting: overload alarm only, no trip)
- Material number
- 101002012010328
- Rated current "55 A"
- as collected; not in the official rated-current list (0.25 ... 125 A)
- Frame (shell) current
- 125 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric RDCPS(KBO)D-125C/M63/M55/06MF Two-Speed Controller |
|---|---|
| Brand | People Electric |
| Model | RDCPS(KBO)D-125C/M63/M55/06MF |
| Category | Contactors & Starters |
| Type name | RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45) |
| Derived code | F (fire-fighting: overload alarm only, no trip) |
| Material number | 101002012010328 |
| Rated current "55 A" | as collected; not in the official rated-current list (0.25 ... 125 A) |
| Frame (shell) current | 125 A |
| Auxiliary contact code | 06 (3 NO + 3 NC + 1 short-circuit + 1 fault signal contact) |
| Control supply voltage | AC 220 (code M) V |
| Low-speed rated current Ie | 55 (as collected) A |
| High-speed rated current Ie | 63 A |
| Rated service short-circuit breaking capacity Ics (code C) | 12 kA |
